Project Record

The Monroe

105 Washington Street · CFS exterior wall packages · Brighton, MA

Project Overview

CFS System
Walls Exterior wall panels
Project Scale
Not quantified in reviewed records Total panel count, framing area and steel weight are not stated
Location
Brighton MA
Technology
FRAMECAD CNC roll-forming precision for every CFS member

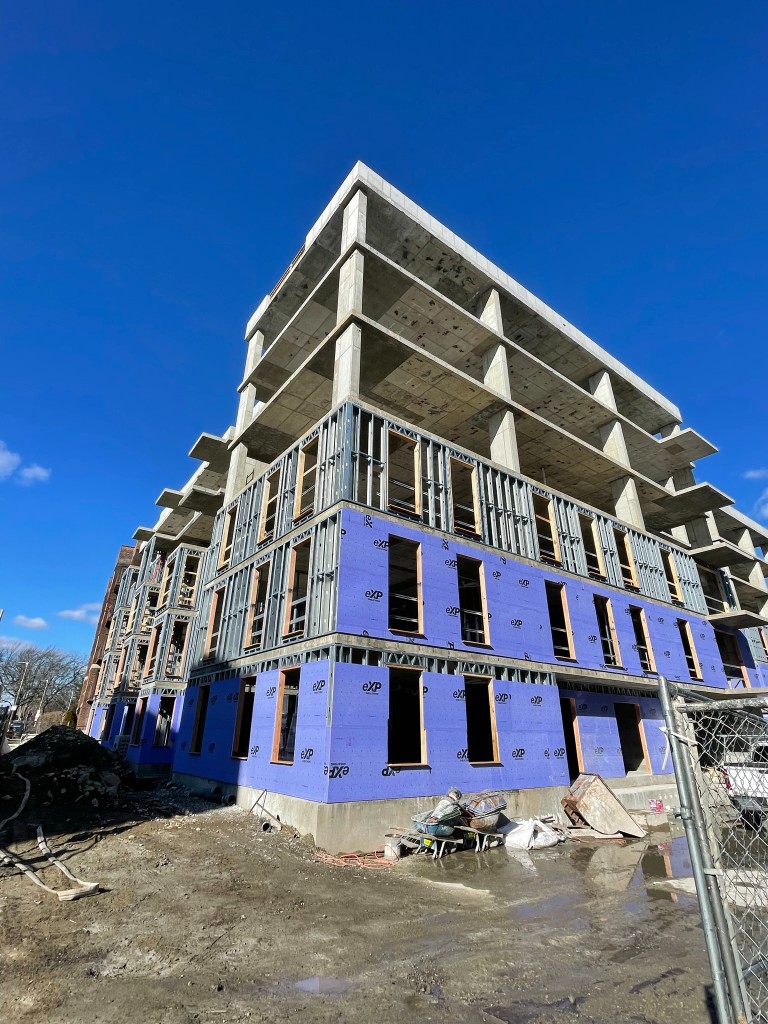

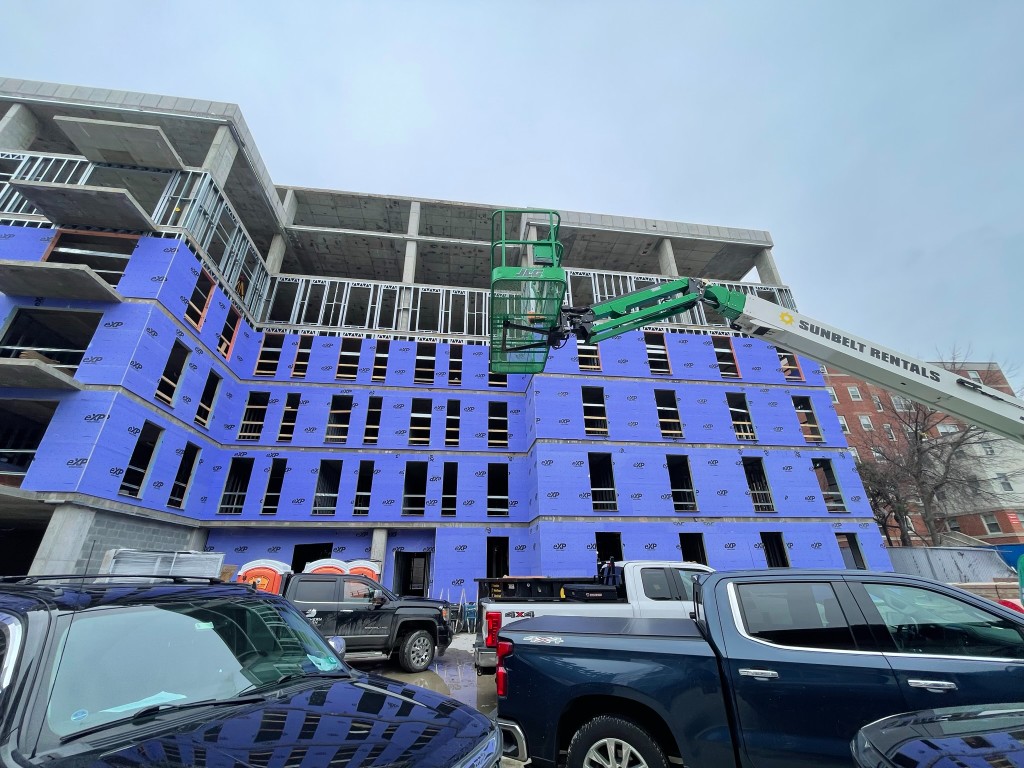

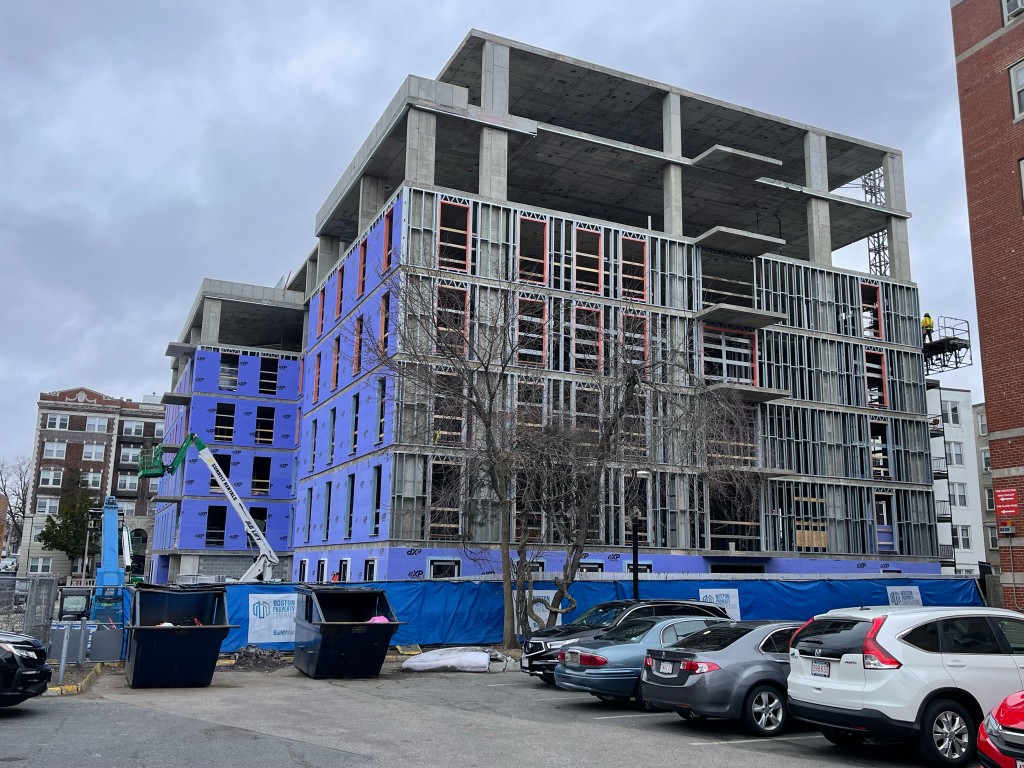

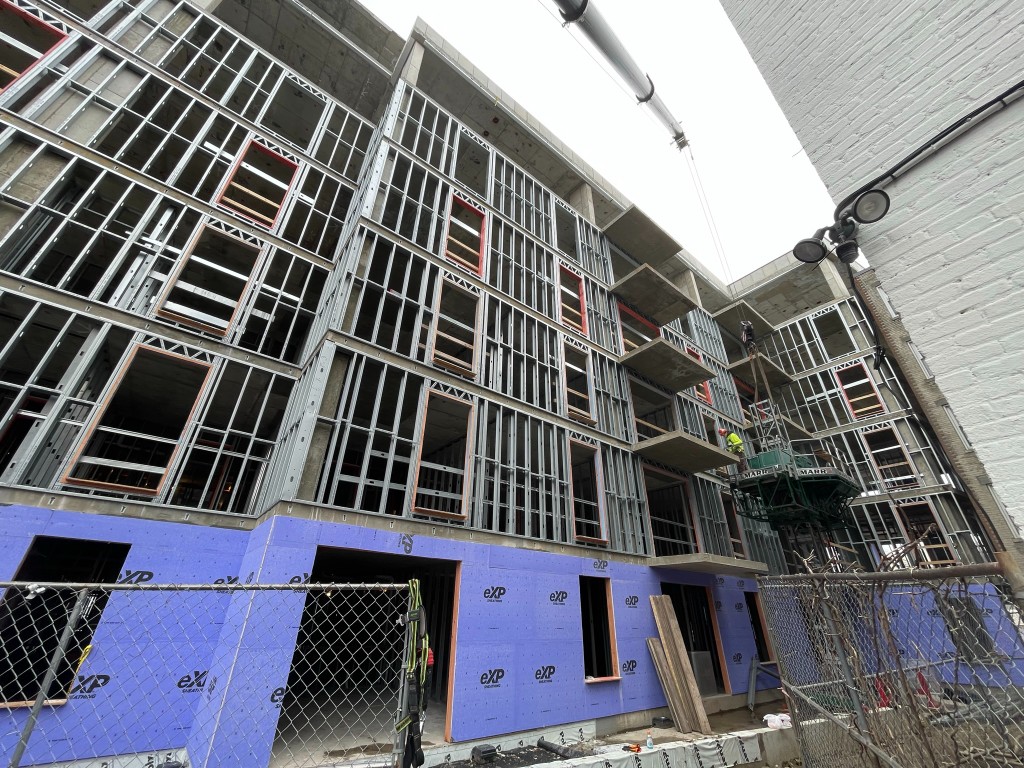

Project gallery

Field evidence from the documented CFS exterior wall installation.

Scope

CFS work completed for this project

  1. 01

    CFS wall layout coordination

    Coordinated wall layouts and three-dimensional documentation address apartment perimeters, corridors, stairs, elevators and service-room interfaces in the reviewed project records.

    COORDINATED WALL LAYOUTS PROJECT 0001
  2. 02

    Facade panel packages

    Exterior CFS panels are coordinated across the north, south, east and west facades, with elevation and individual FRAMECAD panel documentation.

    FOUR FACADES PANEL ELEVATIONS FRAMECAD JOB 1562
  3. 03

    Load-bearing and non-load-bearing wall documentation

    The project package distinguishes load-bearing and non-load-bearing wall conditions and identifies the exterior panels from the interior viewing side.

    LB + NLB WALLS EXTERIOR PANEL LABELS
  4. 04

    Fabrication-ready panel detailing

    Individual FRAMECAD Detailer sheets document panel geometry, stud and track sequence, openings, overall length and calculated panel weight for production.

    FRAMECAD DETAILER 3-5/8 + 6-IN STUDS PANEL LENGTH + WEIGHT
