Project Record

First Electronics

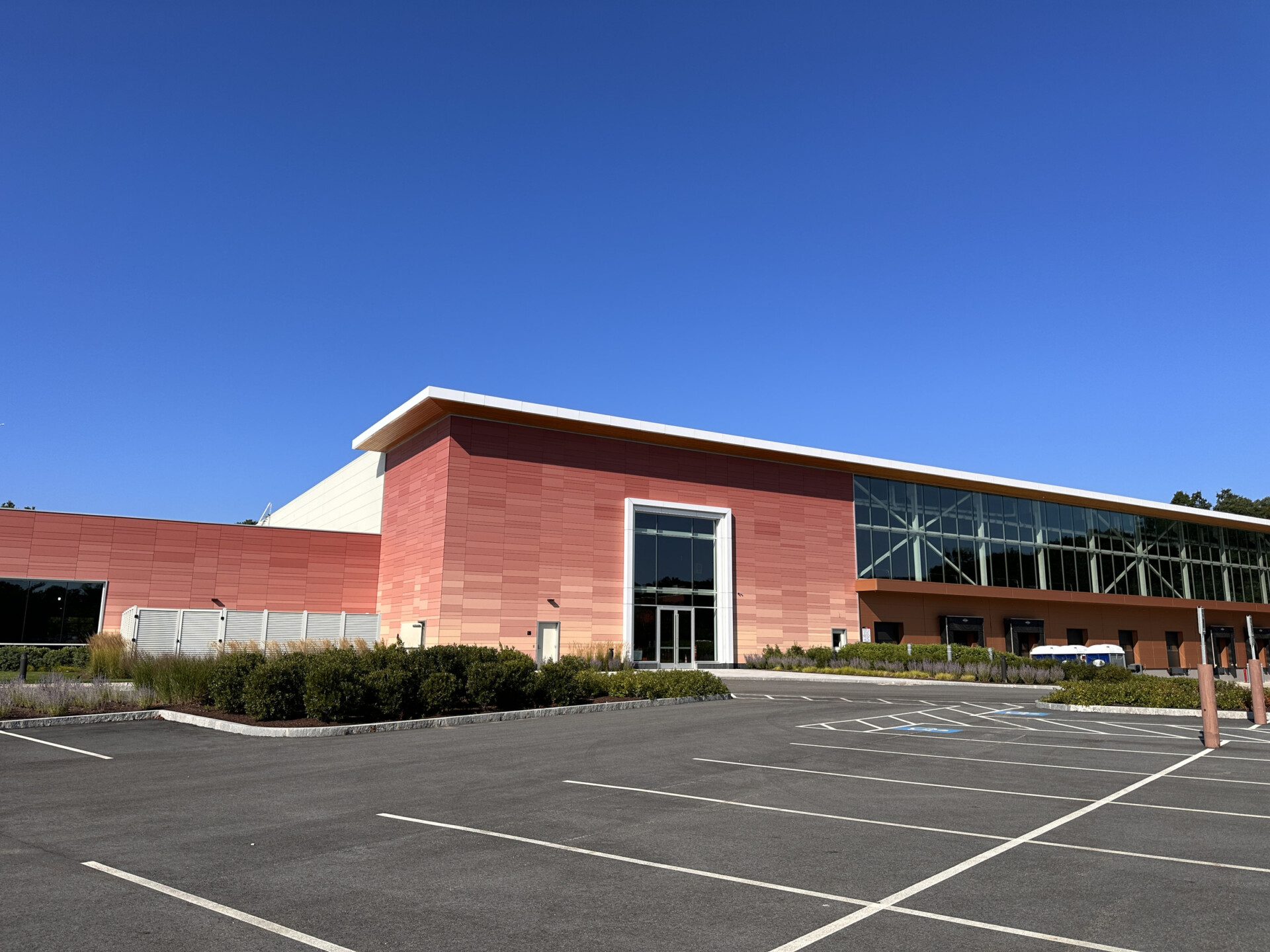

CFS wall panels and a framed mezzanine for The First Electronics Corporation facility fit-out in Braintree, Massachusetts.

Project Overview

CFS System
Walls + Floor Wall and parapet panels with mezzanine floor trusses
Project Scale
68 CFS Panels 44 Phase 1 · 21 mezzanine walls · 3 parapet · 24 floor trusses
Location
Braintree MA
Technology
FRAMECAD FRAMECAD Structure design to AISI S100-20 LRFD

Project gallery

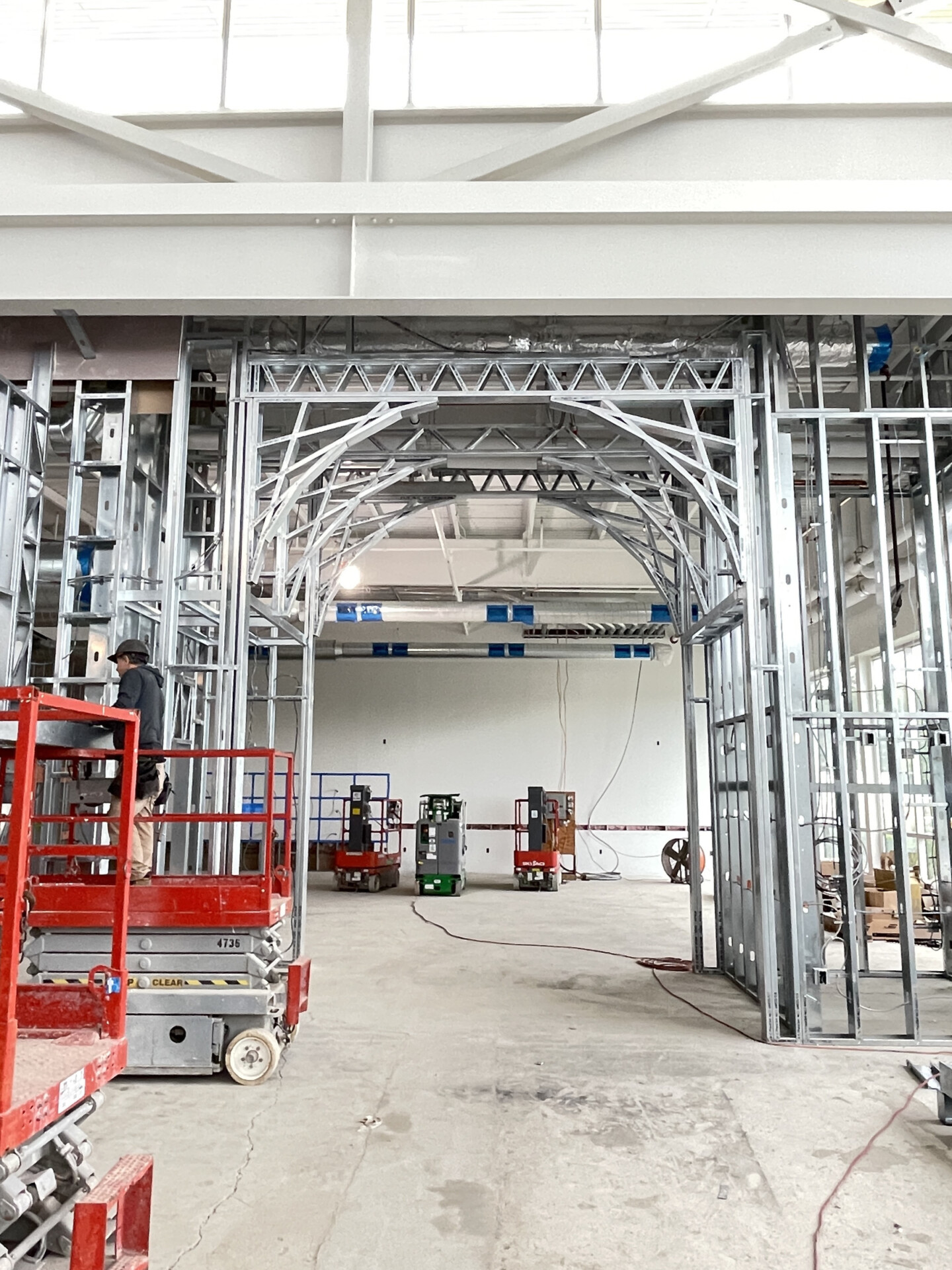

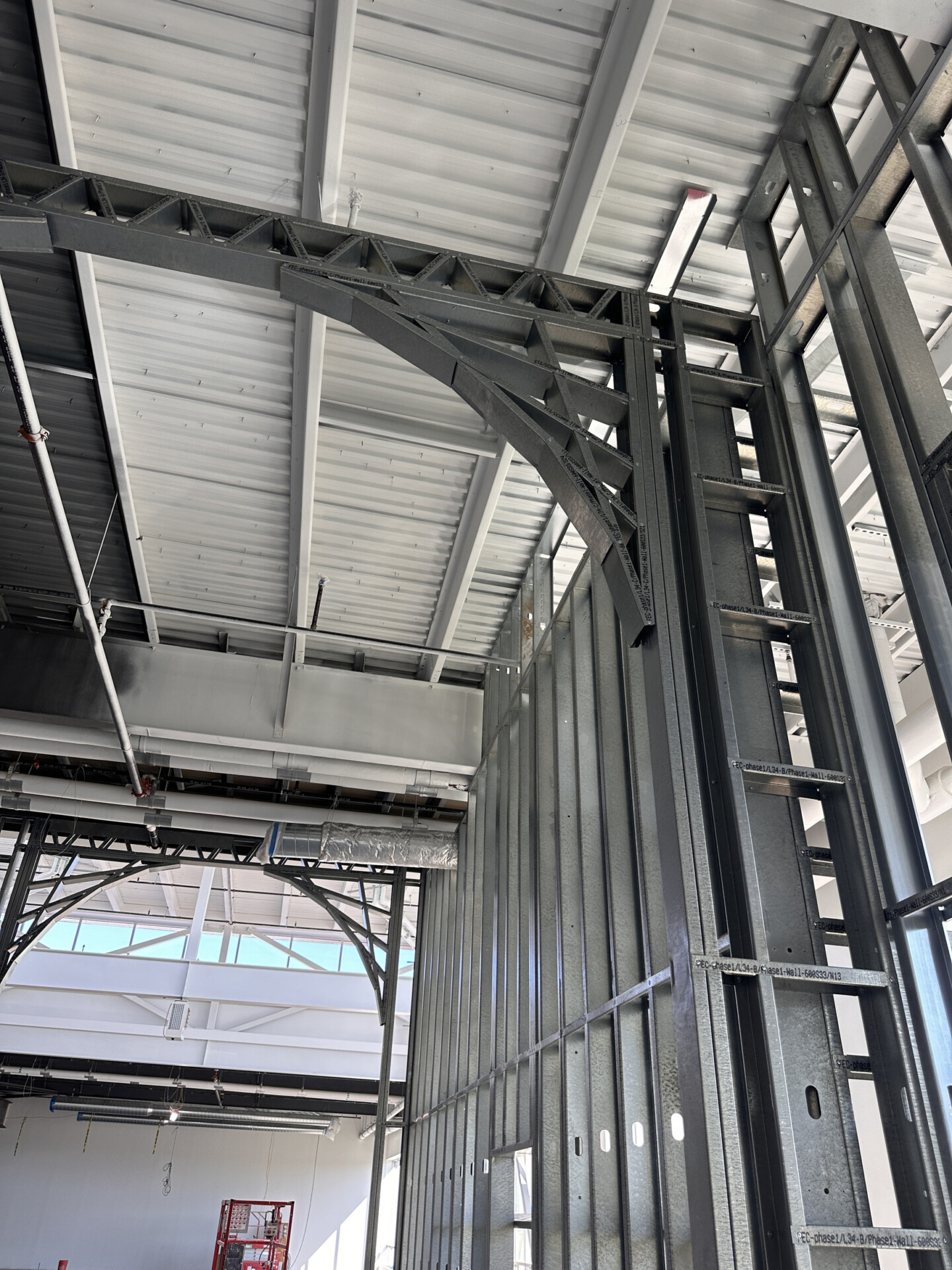

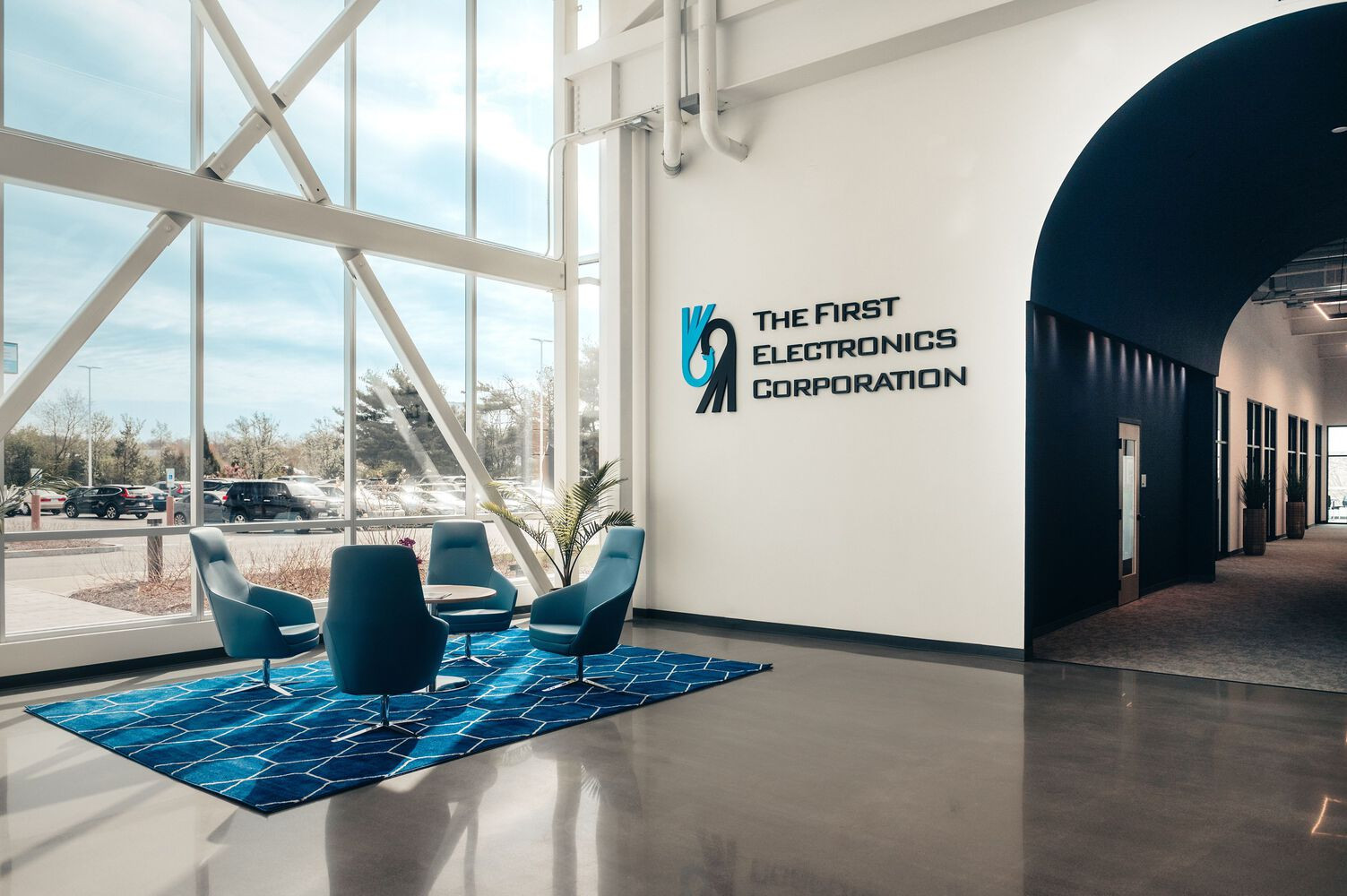

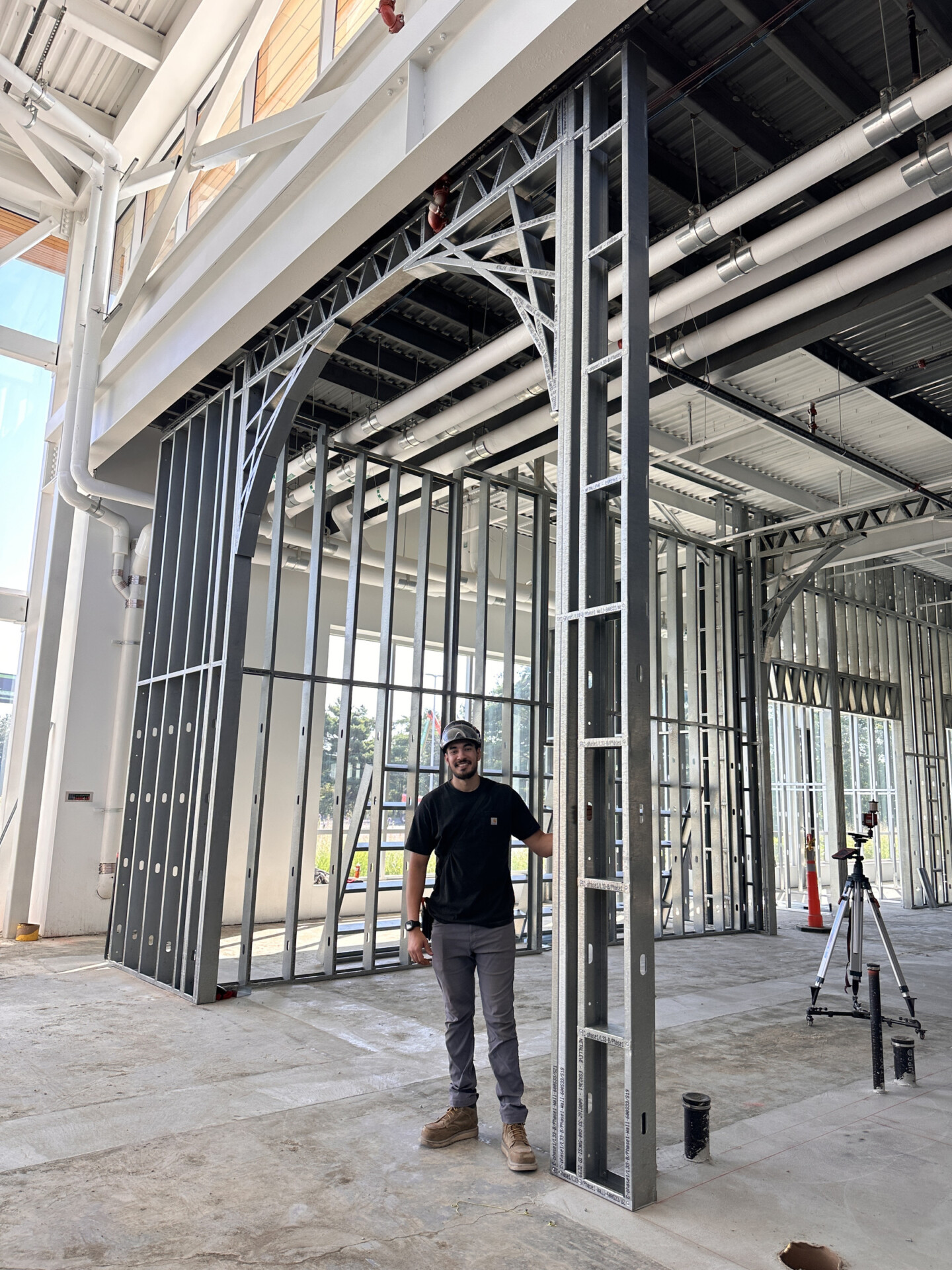

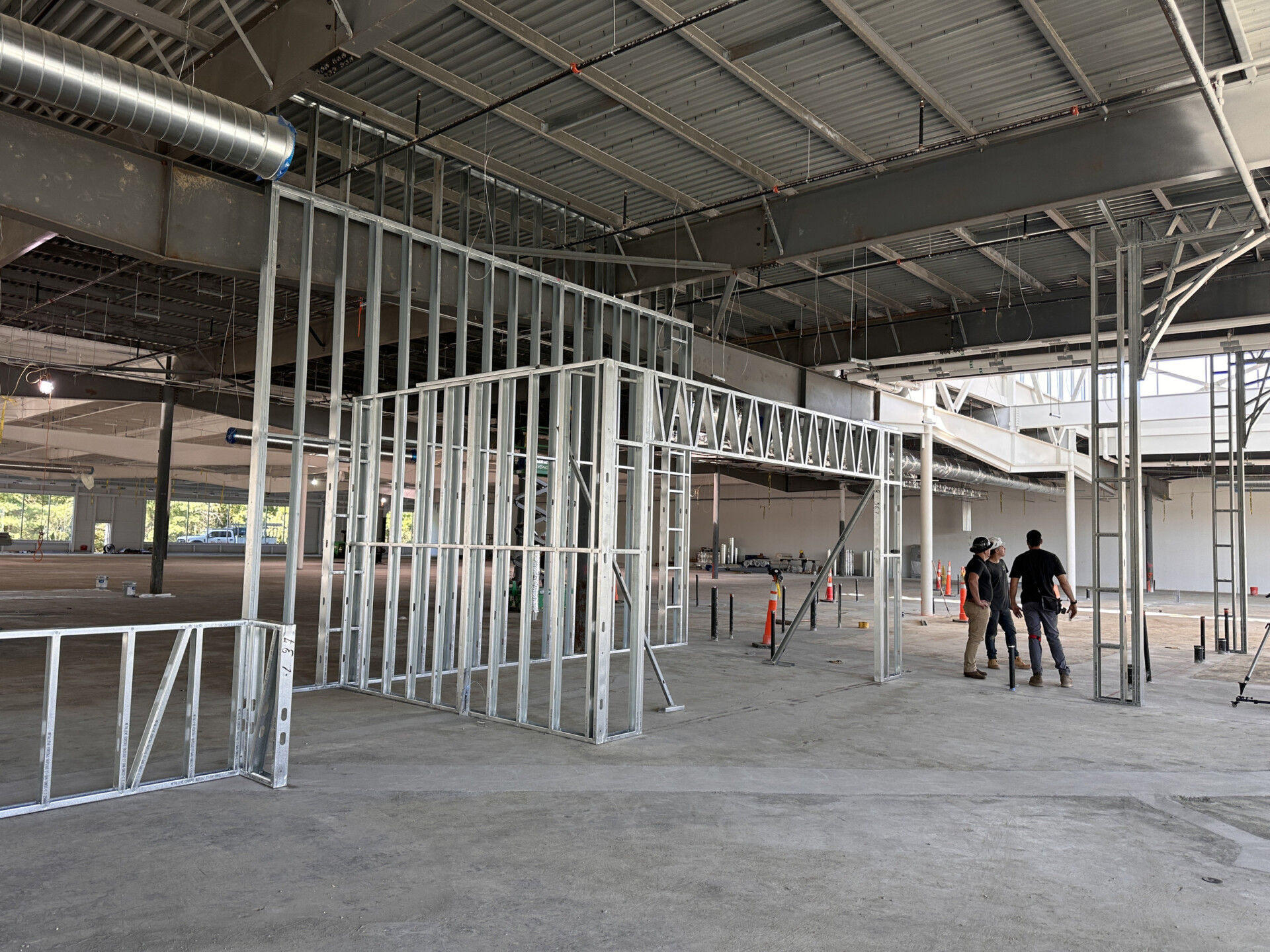

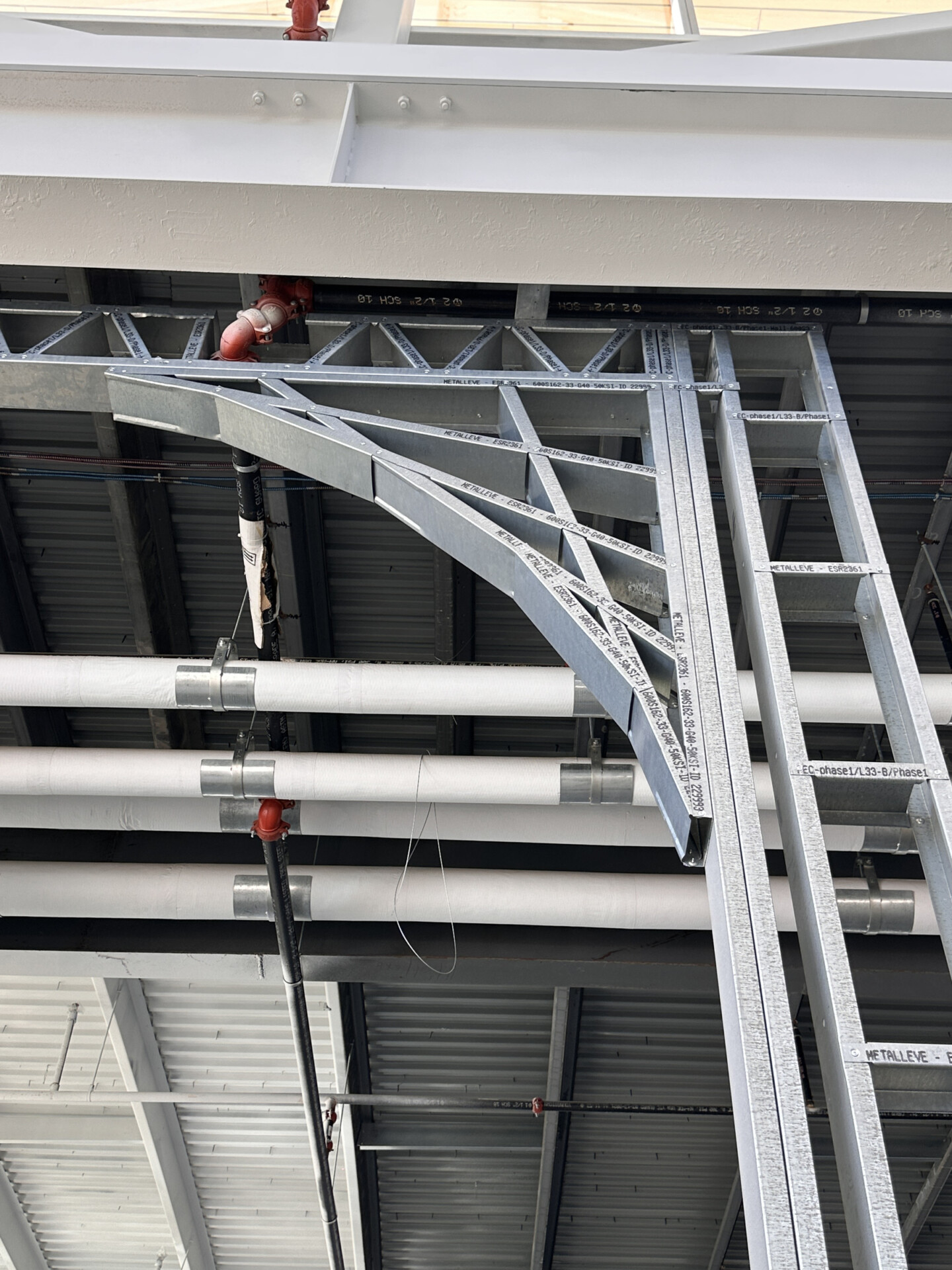

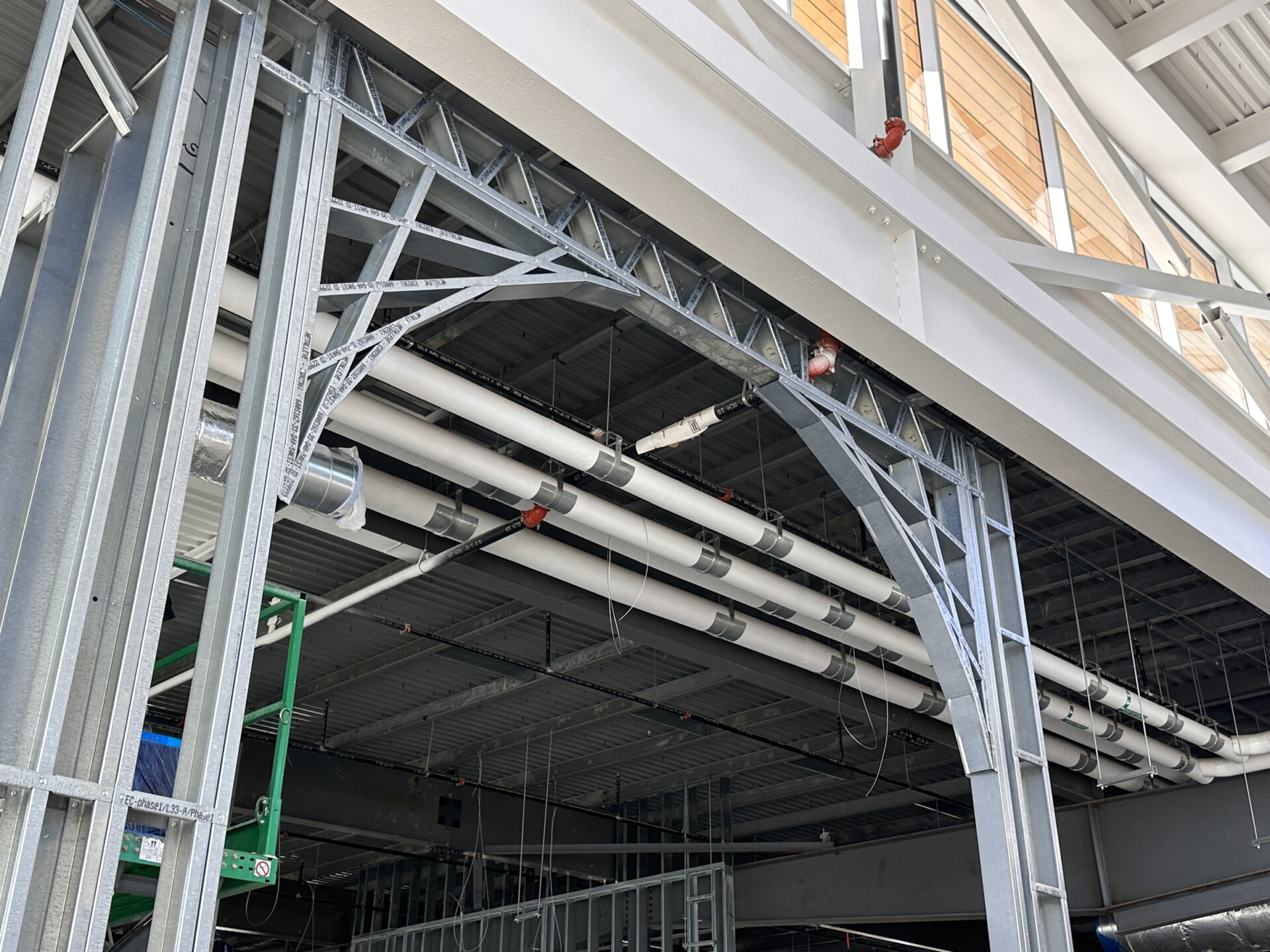

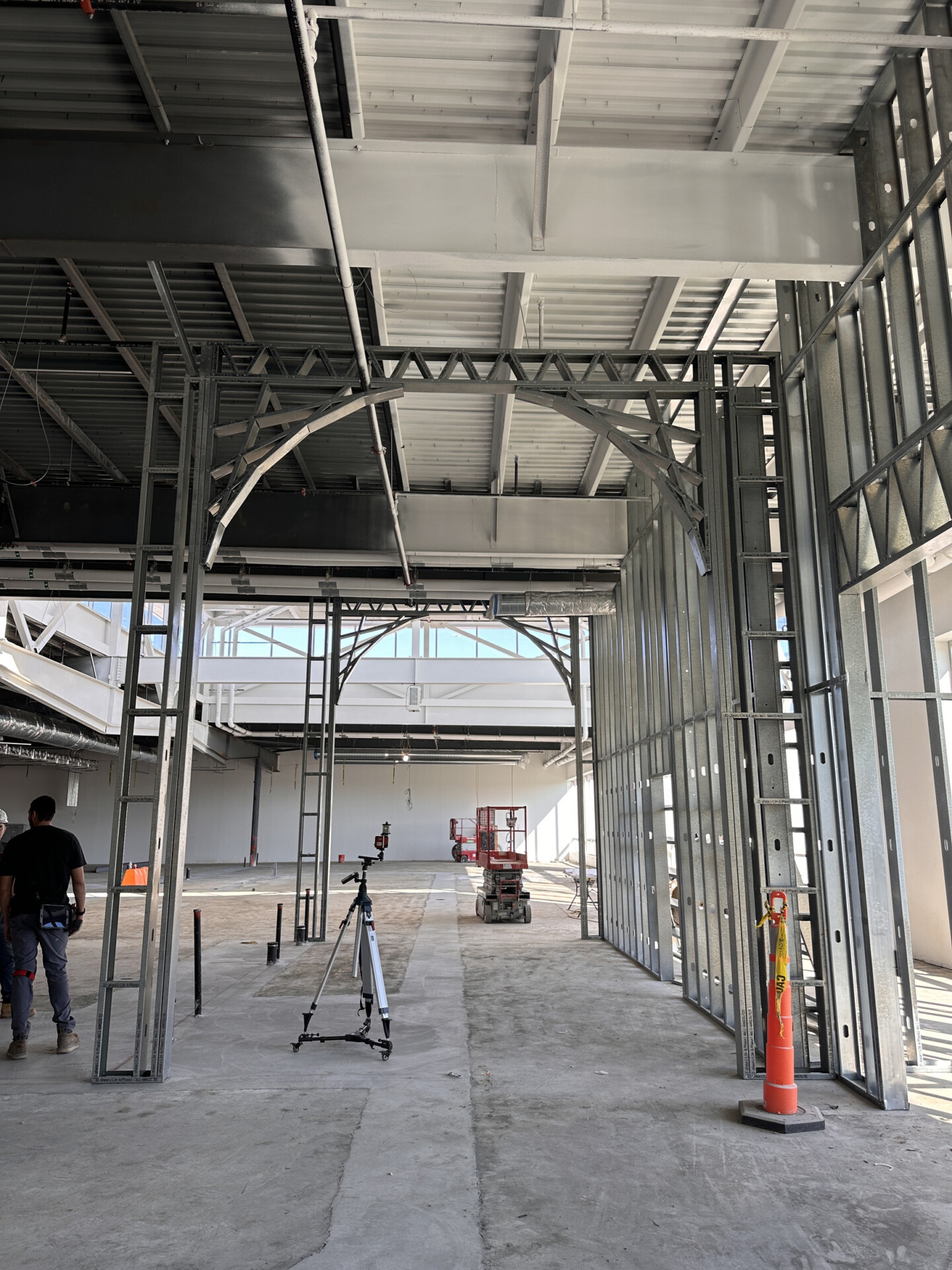

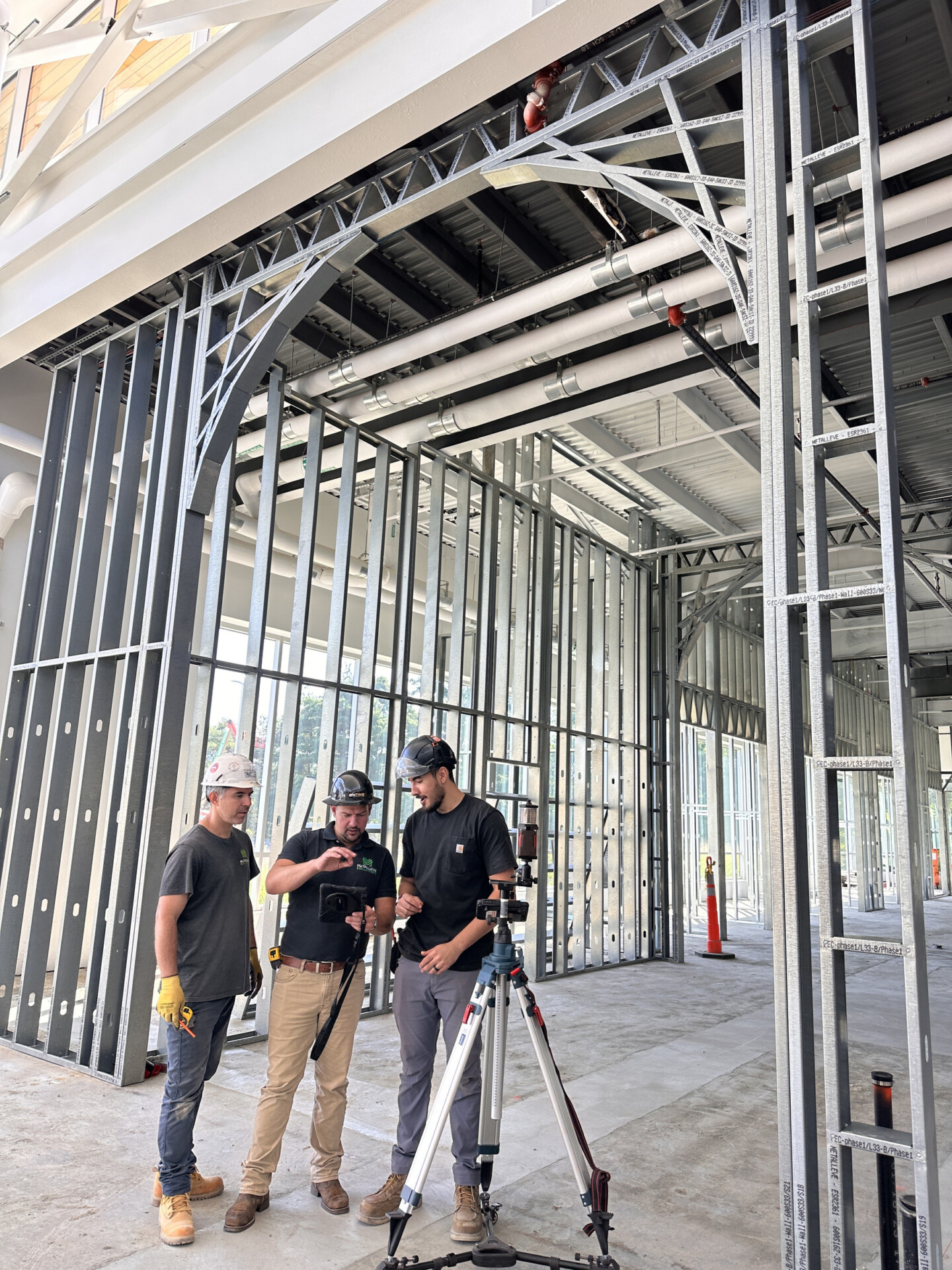

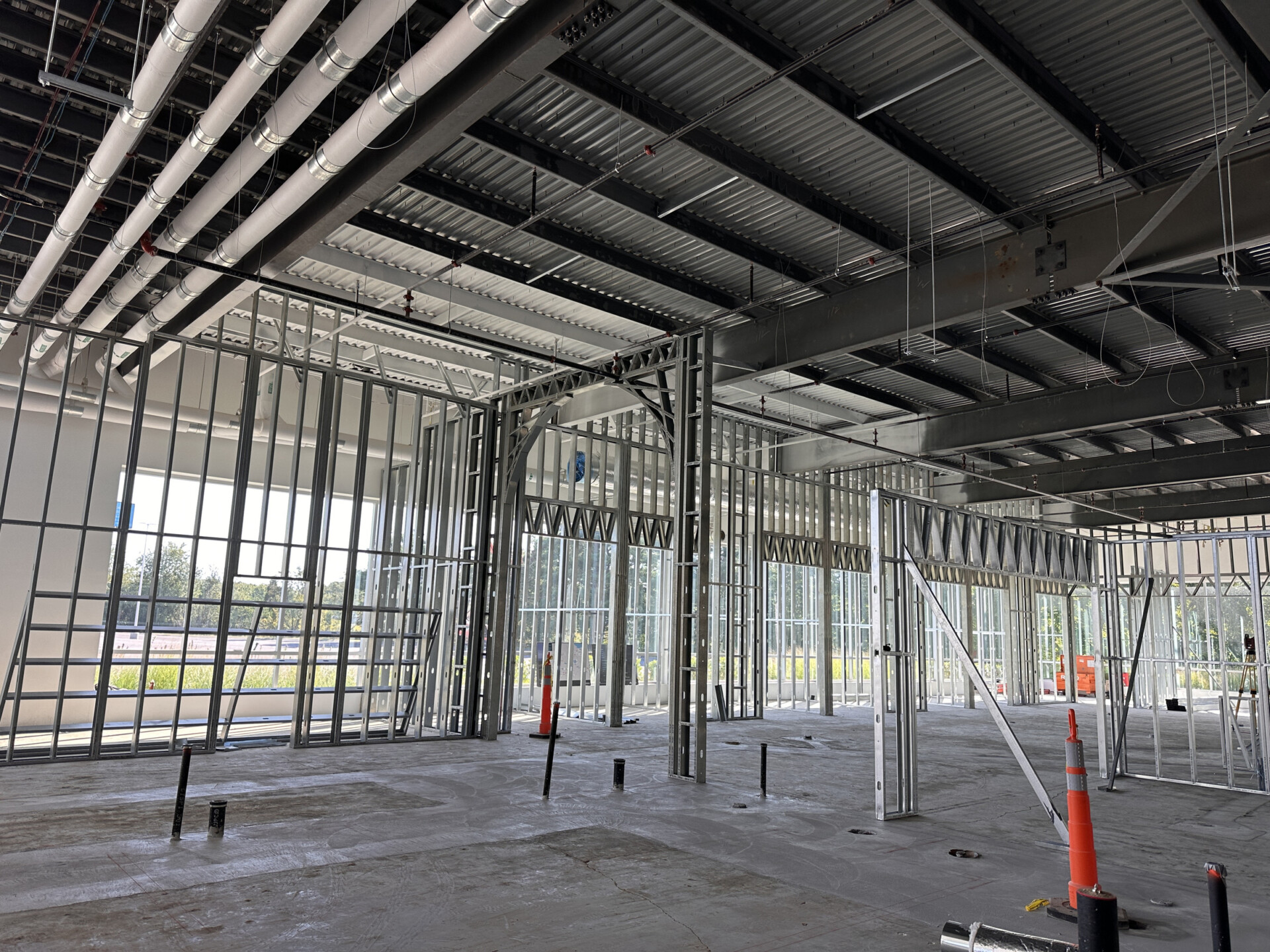

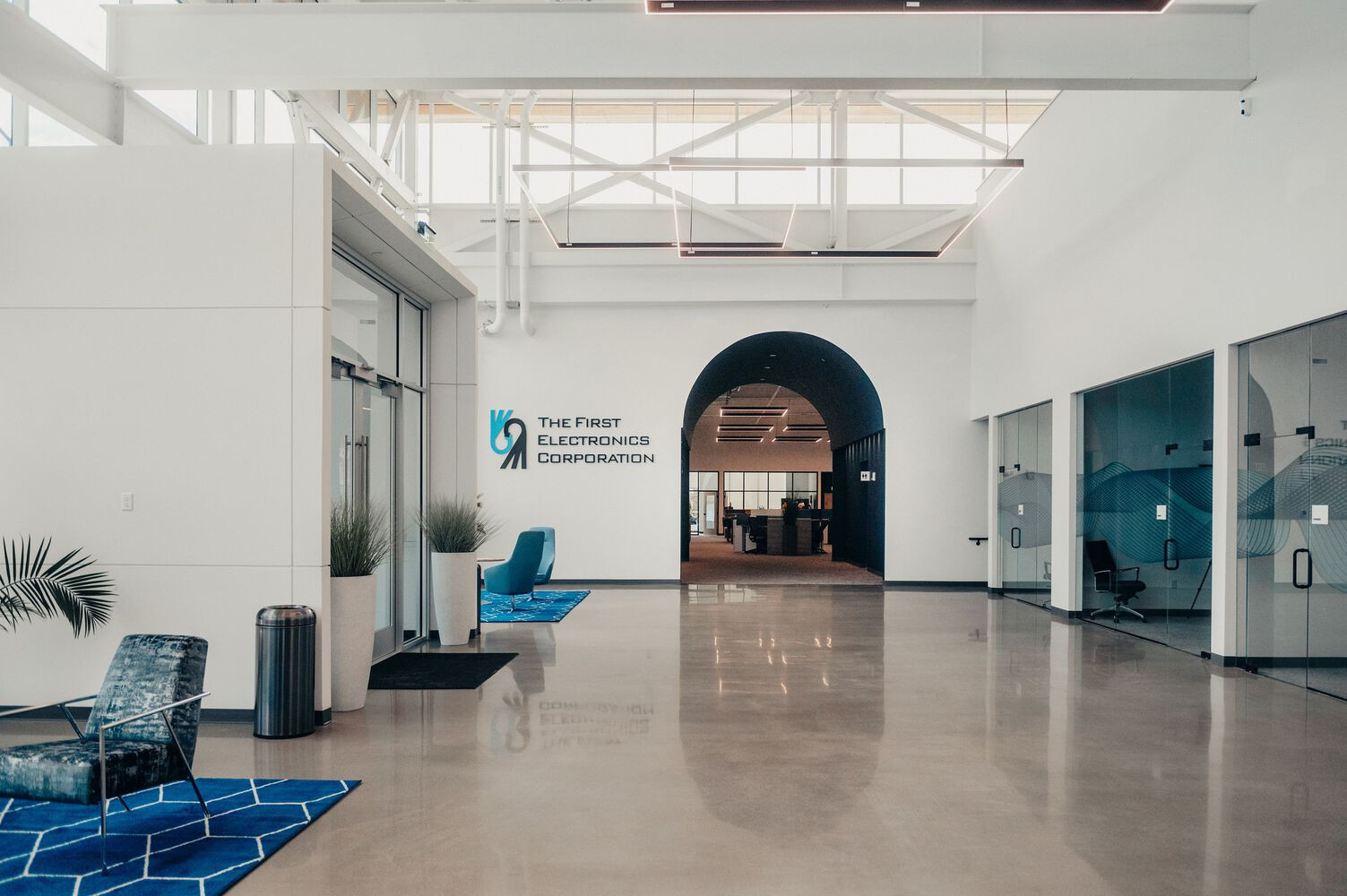

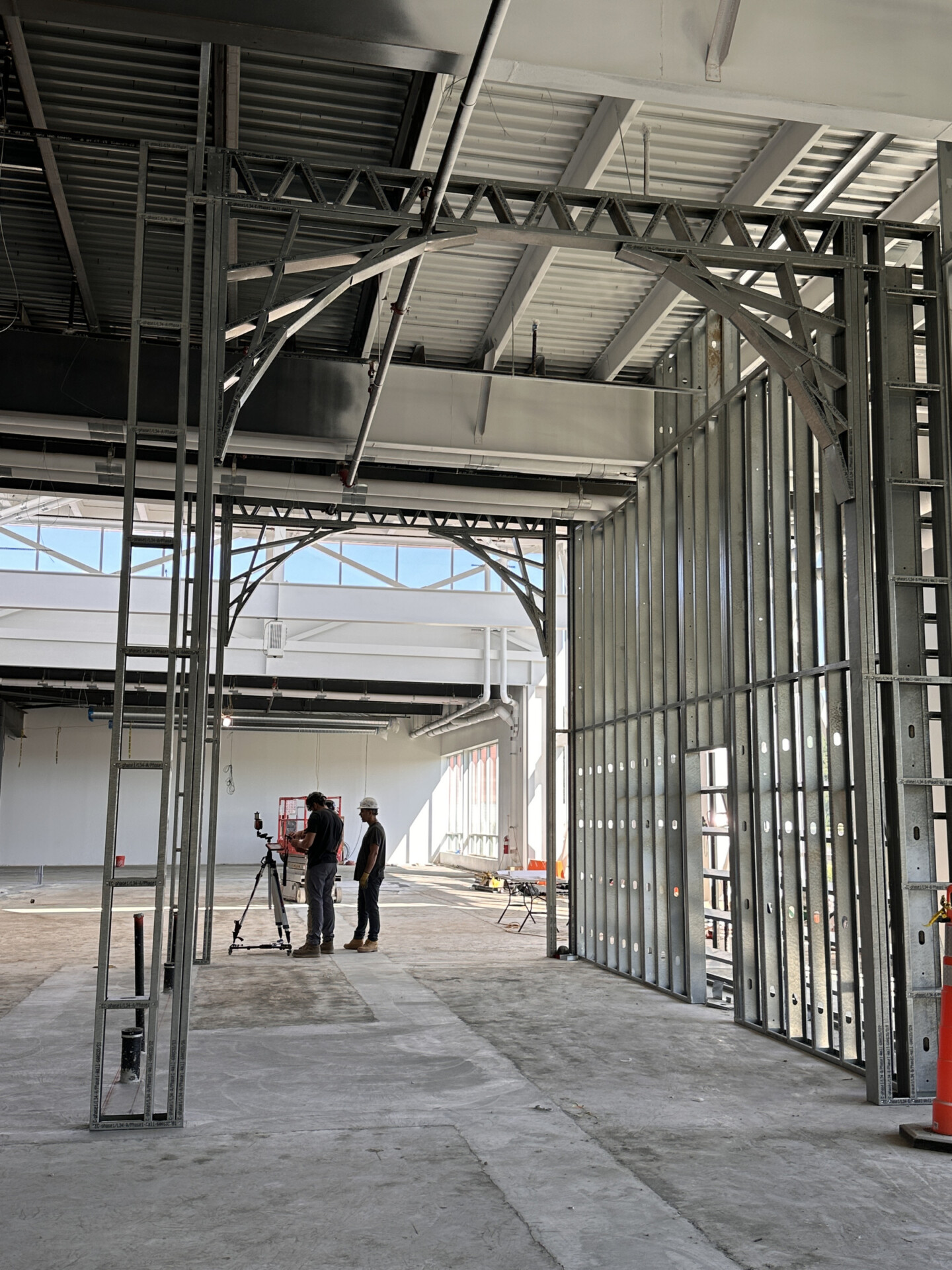

Field views from CFS wall and arch framing through mezzanine floor installation and the completed lobby.

Scope

CFS work completed for this project

  1. 01

    Phase 1 wall package

    Wall layout plan and individual FRAMECAD panel sheets for wall panels L1–L41, L124 and L125, framed with 6-inch and 3-5/8-inch studs, plus ceiling panel C1.

    43 WALL PANELS 600S162-33 + 362S162-27 CEILING PANEL C1
  2. 02

    Mezzanine walls and parapet

    Mezzanine wall plan with panels M1–M21 and parapet panels M22–M24, including header-framed openings and east, north, south and west elevations.

    21 WALL PANELS 3 PARAPET PANELS 4 ELEVATIONS
  3. 03

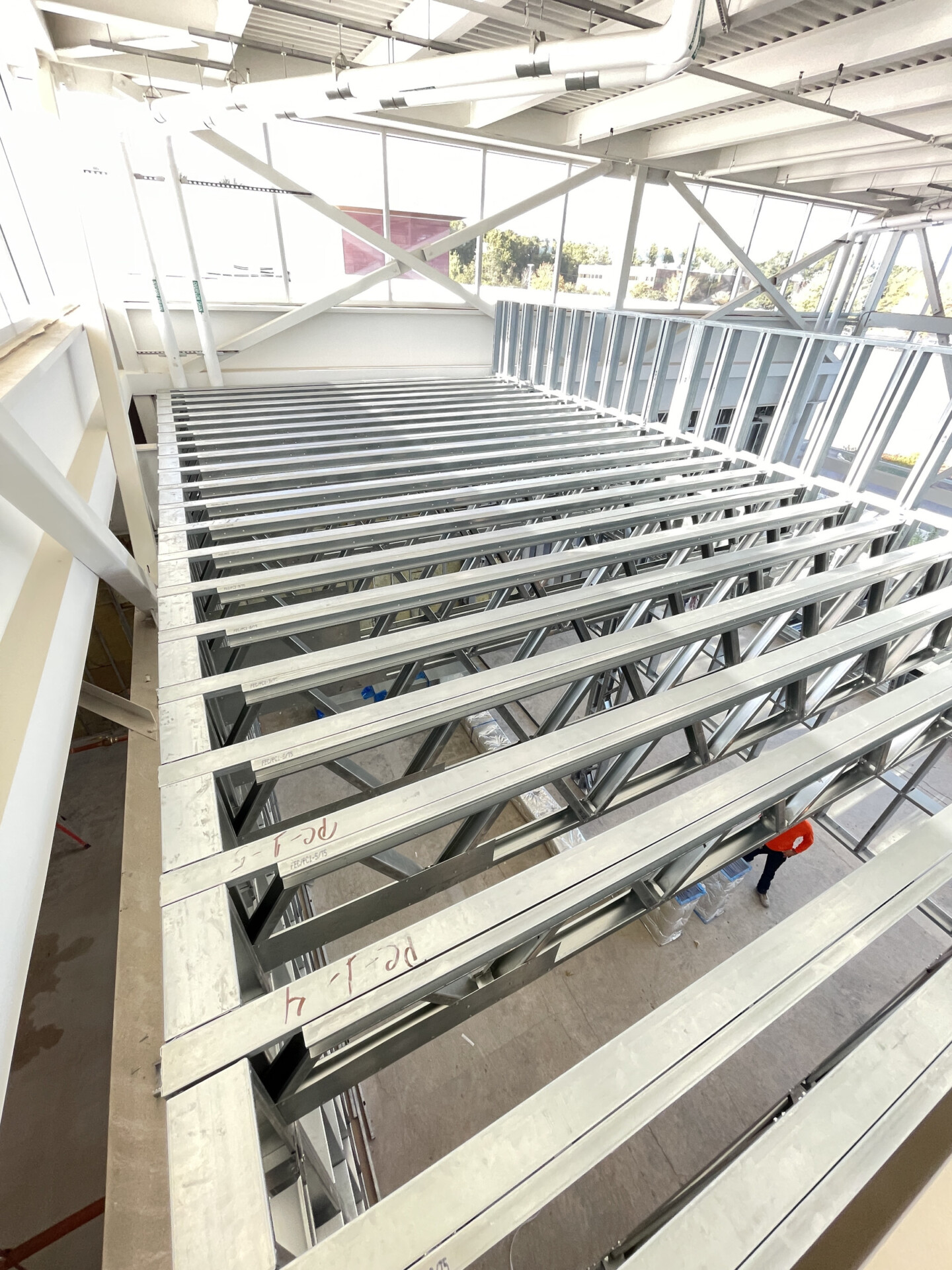

    Mezzanine floor framing

    Floor plan with 24 CFS floor trusses (PC1 ×13, PC2 ×11) designed for a 100 psf top-chord live load and 40 psf dead load, plus joists and beams at edges, openings and supports.

    24 FLOOR TRUSSES 100 PSF LIVE LOAD AISI S100-20 LRFD
