Project Record

Catholic Memorial

Courtyard Building · CFS walls + roof trusses · West Roxbury, MA

Project Overview

Facility

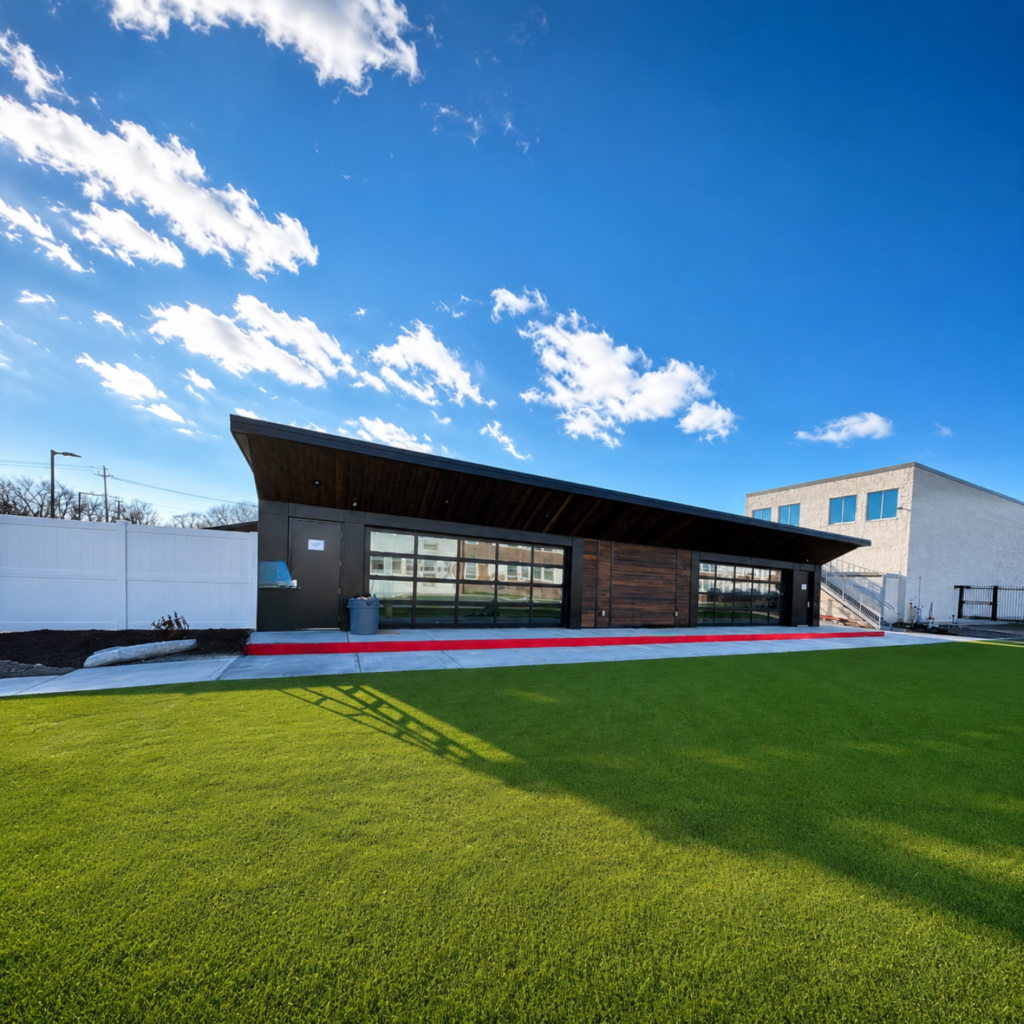

Single-story courtyard pavilion Music classroom 764 sf · Robotics lab 744 sf · Elec closet 17 sf

Primary framing area

Wall layout ~65'–2½" × 25' Architectural roof extents ~67'–1" × 32'–11"

Package scale

Load-bearing walls + roof trusses Prefabricated light-gauge CFS per AISI S240

Deliverable

Walls, trusses, elevations, connections Layout coordination through submittal package

Project gallery

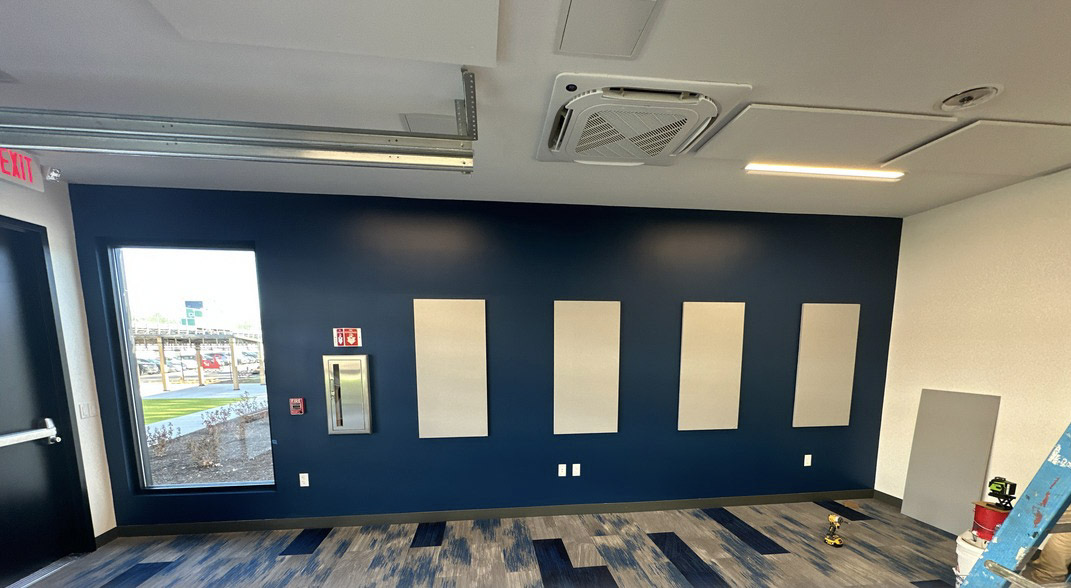

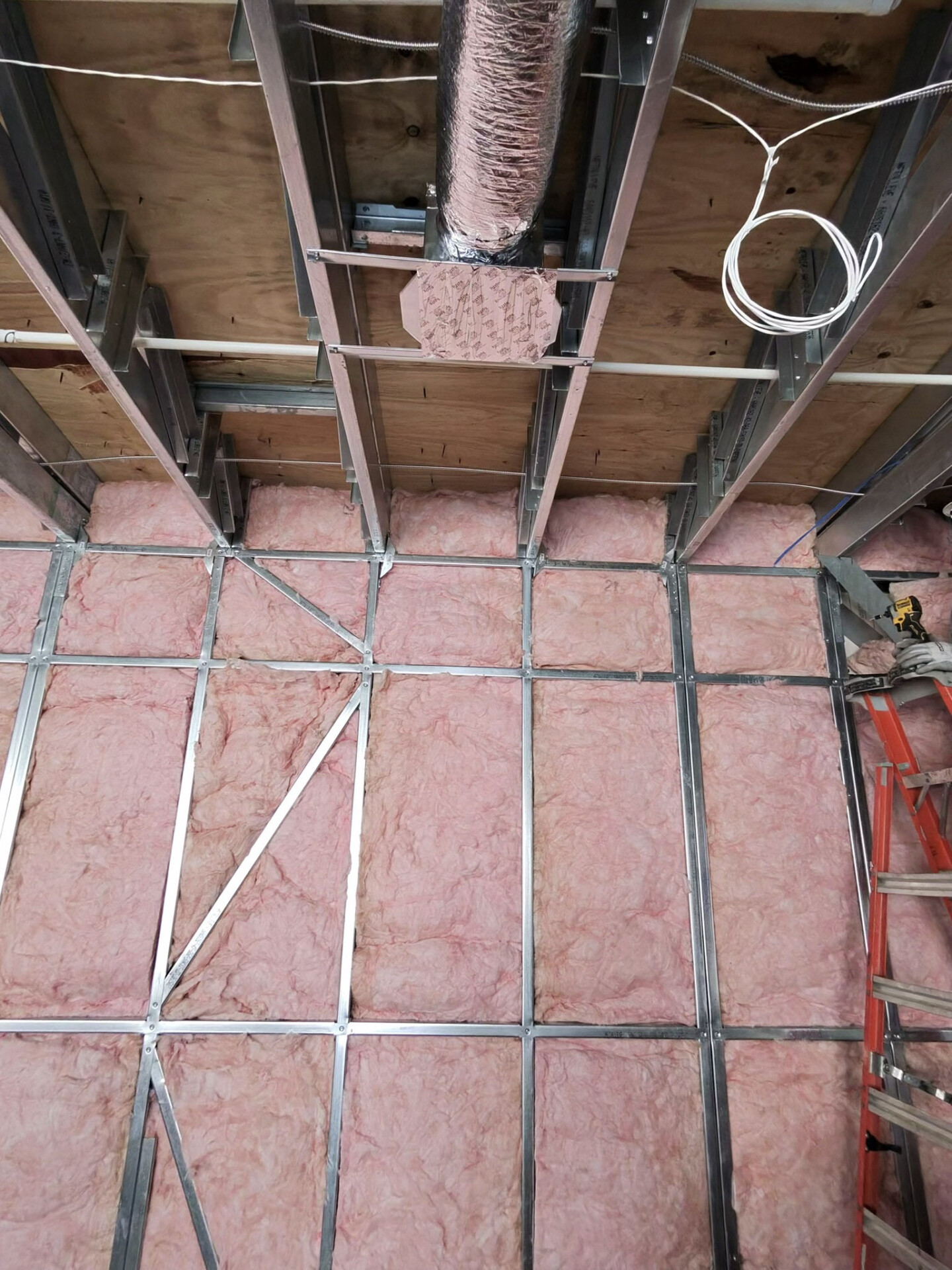

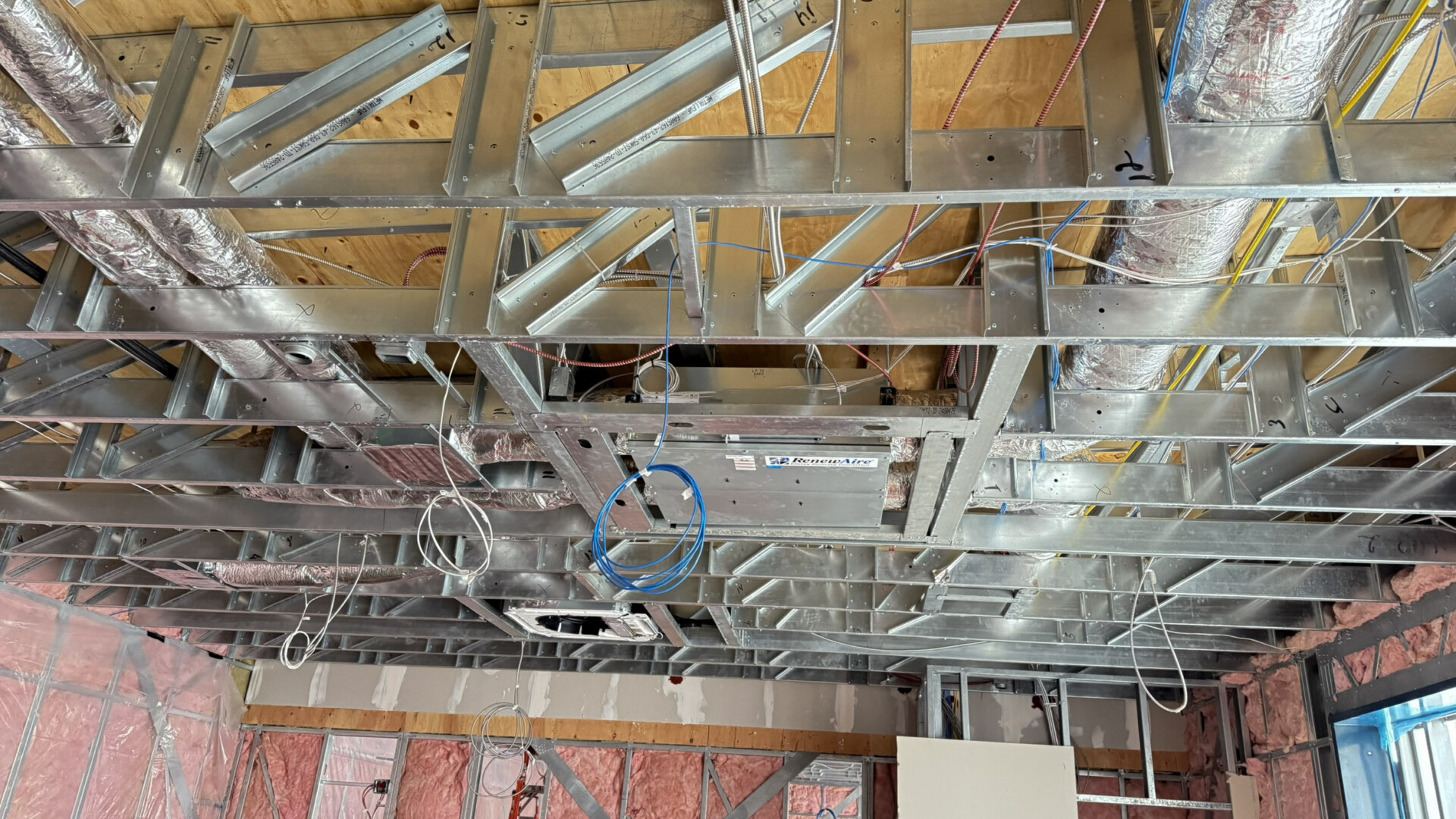

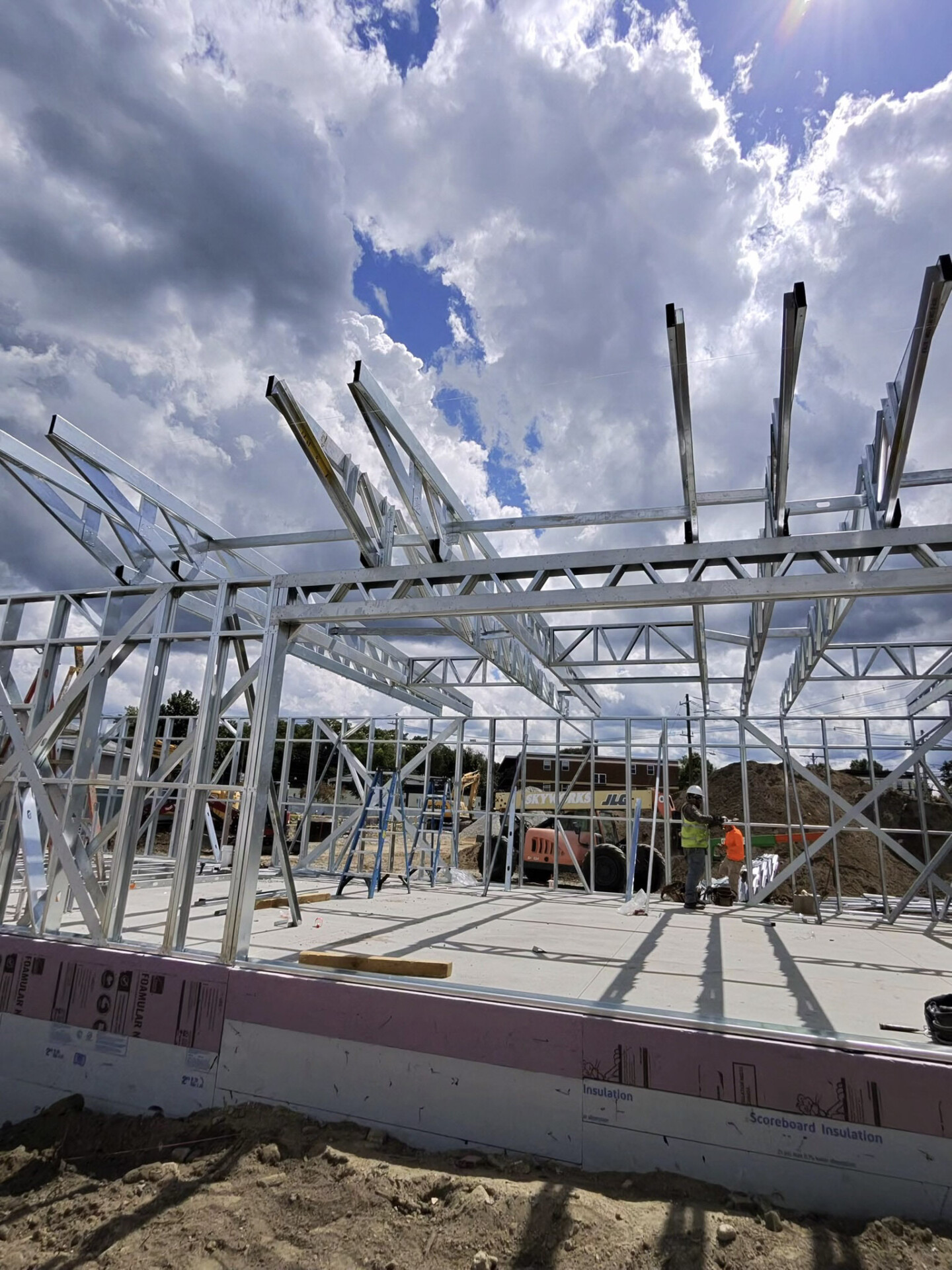

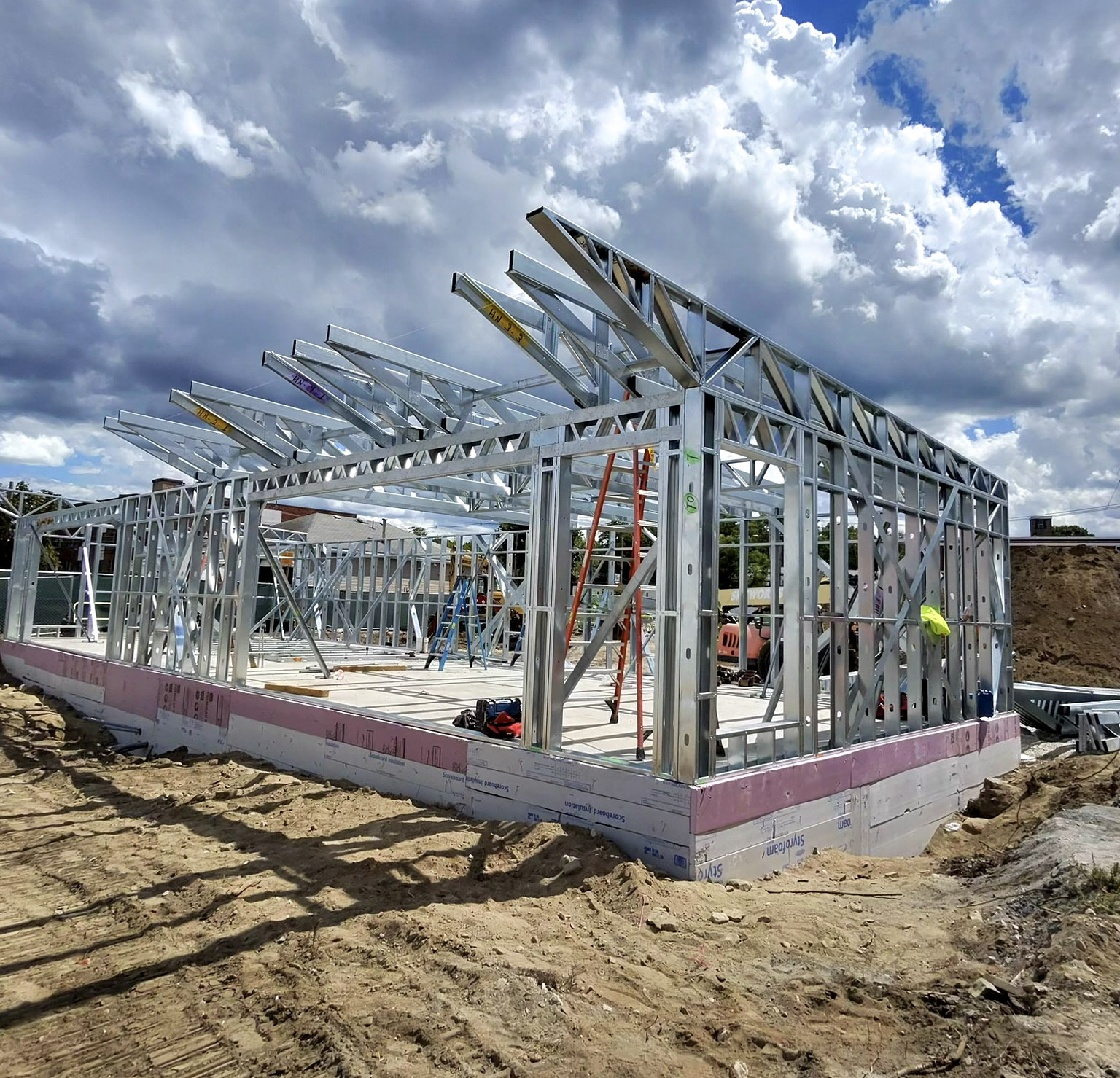

Field and shop views from framing through panel installation.

Scope

01

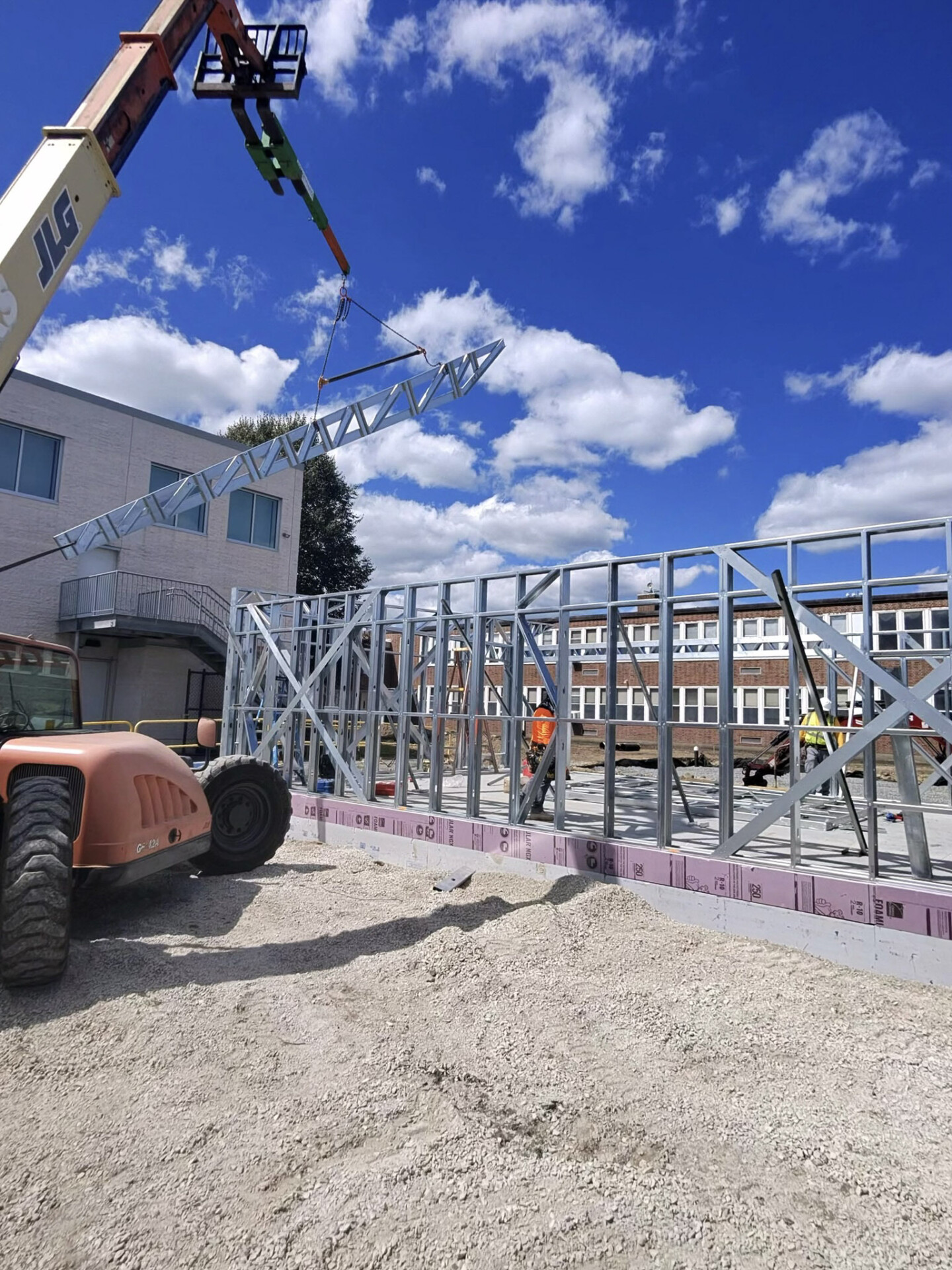

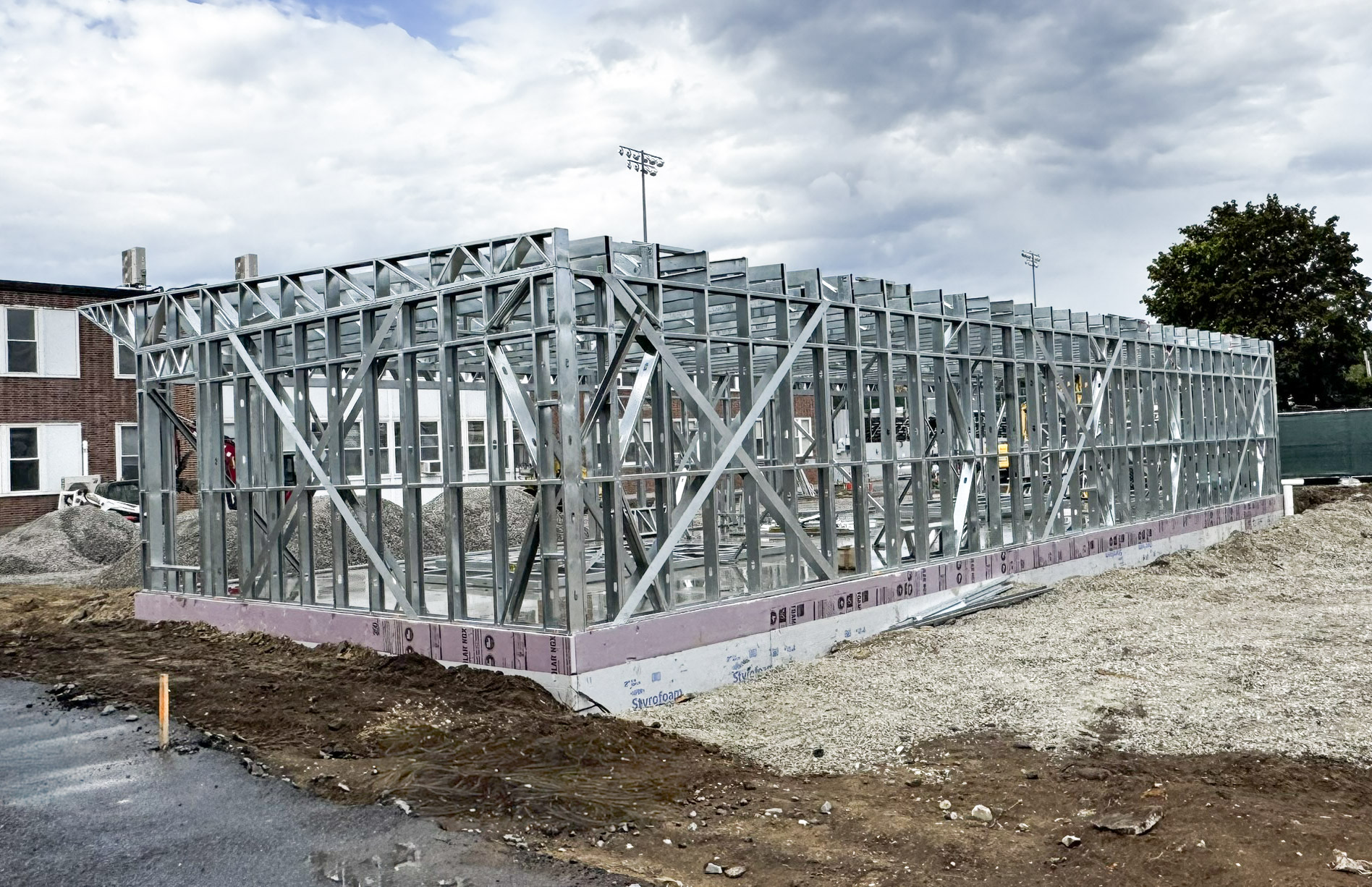

Load-bearing wall framing

CFS wall panels for glazed openings and garage-door headers; exterior sheathing specified as 5/8" CDX plywood.
02

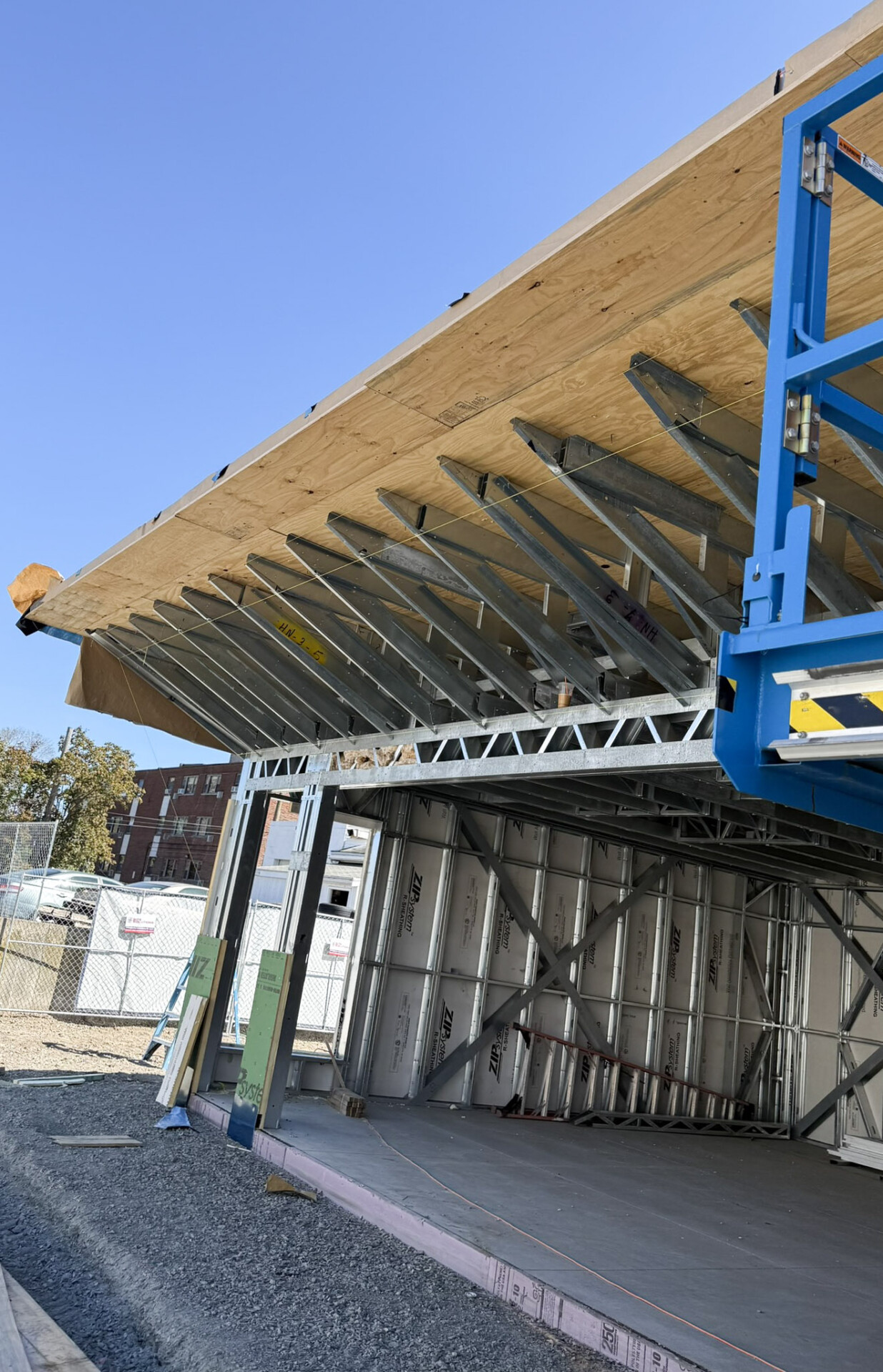

Roof truss package

CFS trusses detailed for roof live 45 psf, dead 30 psf, snow 56 psf; hurricane clips and bearing fasteners called out.
03

Hold-downs and connections

S/HDU hold-downs, TITAN base fixings and Rigid Connector Angles detailed for panel and truss anchorage.
04

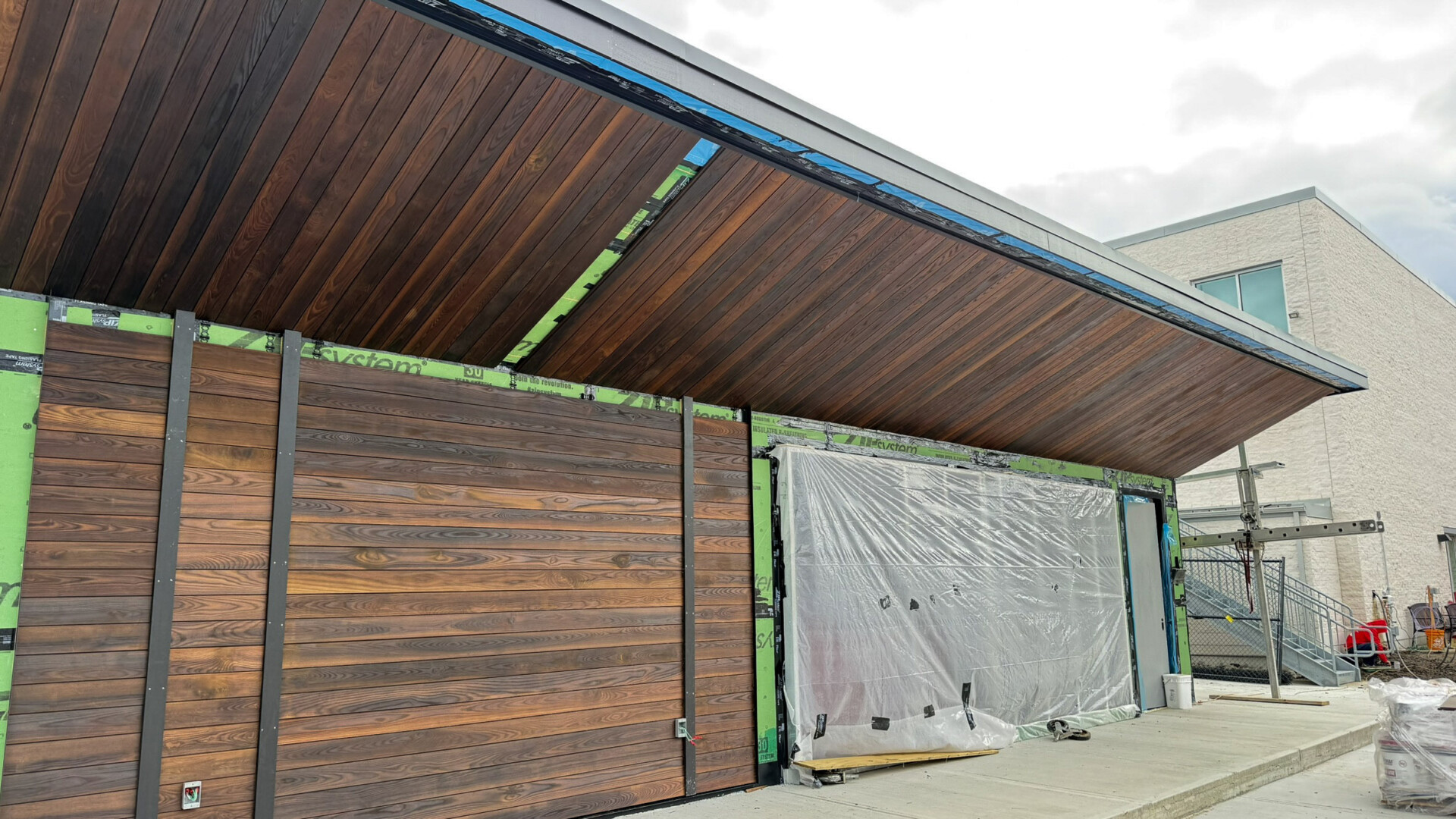

Architectural interface review

CFS geometry developed around architectural openings and roof conditions identified for exterior wood cladding, EPDM roofing and Clopay 904 overhead doors.
