Project Record

MASSPORT

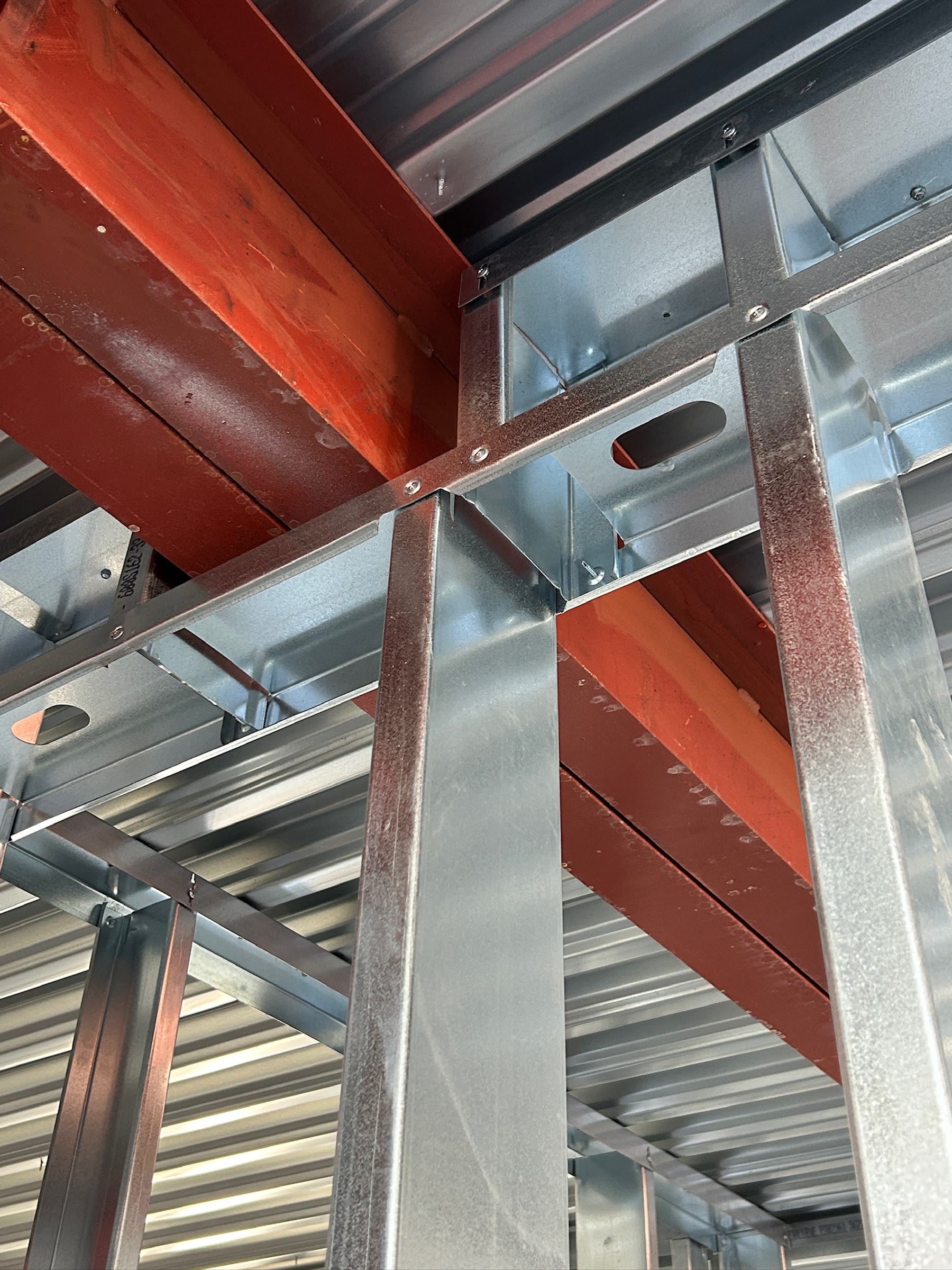

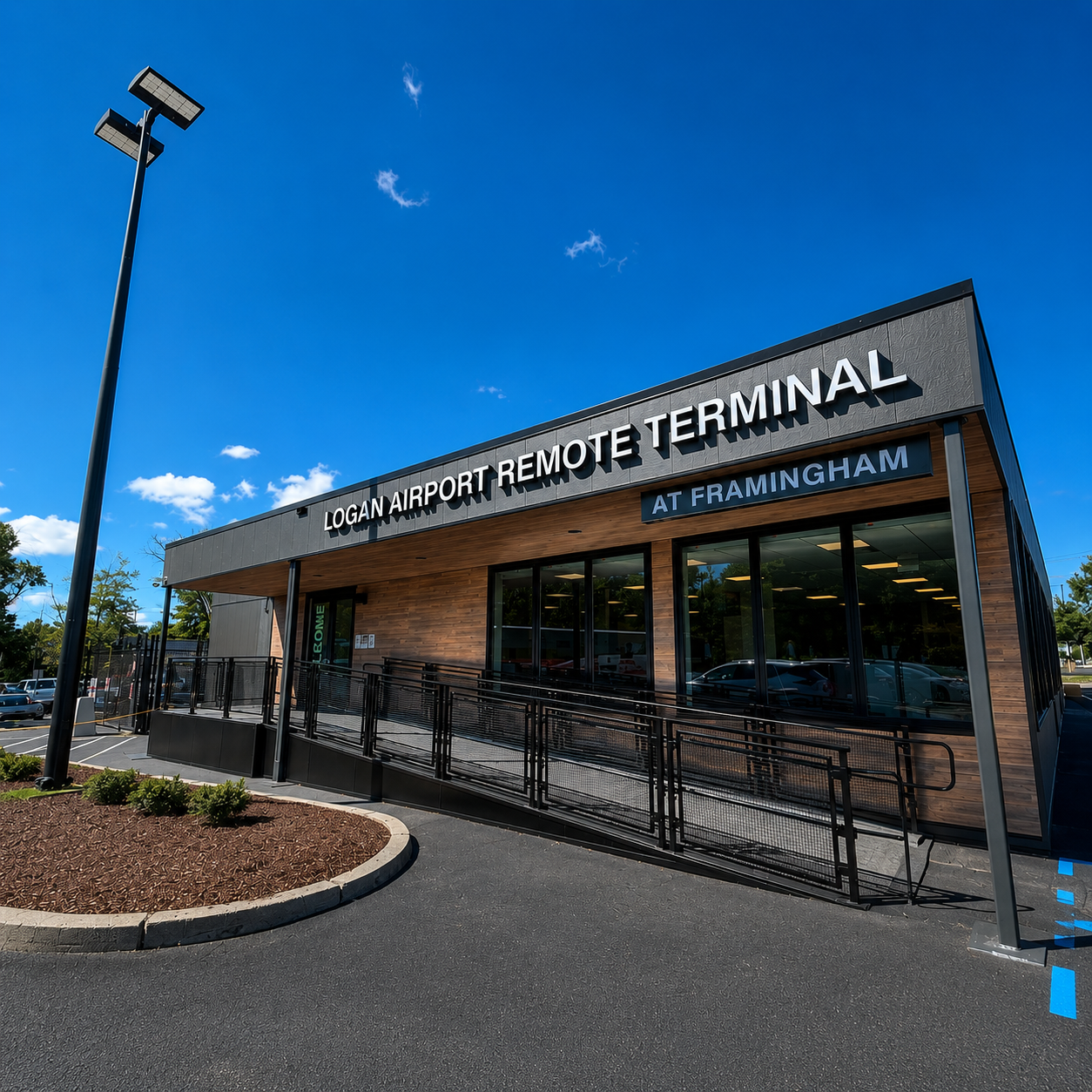

Remote Terminal · CFS wall framing system · Framingham, MA

Client
Massport
Location
Framingham, MA
System
CFS Walls + Parapets

Project Overview

Facility
Remote terminal Passenger processing & support spaces
Primary framing area
~120'–6" × 60'–6" Plan extent ~166'–6"
Package scale
~143 panels 27 exterior · ~70 interior · 46 parapet
Deliverable
Wall submittal package 3D model · shops · stud calcs

Project gallery

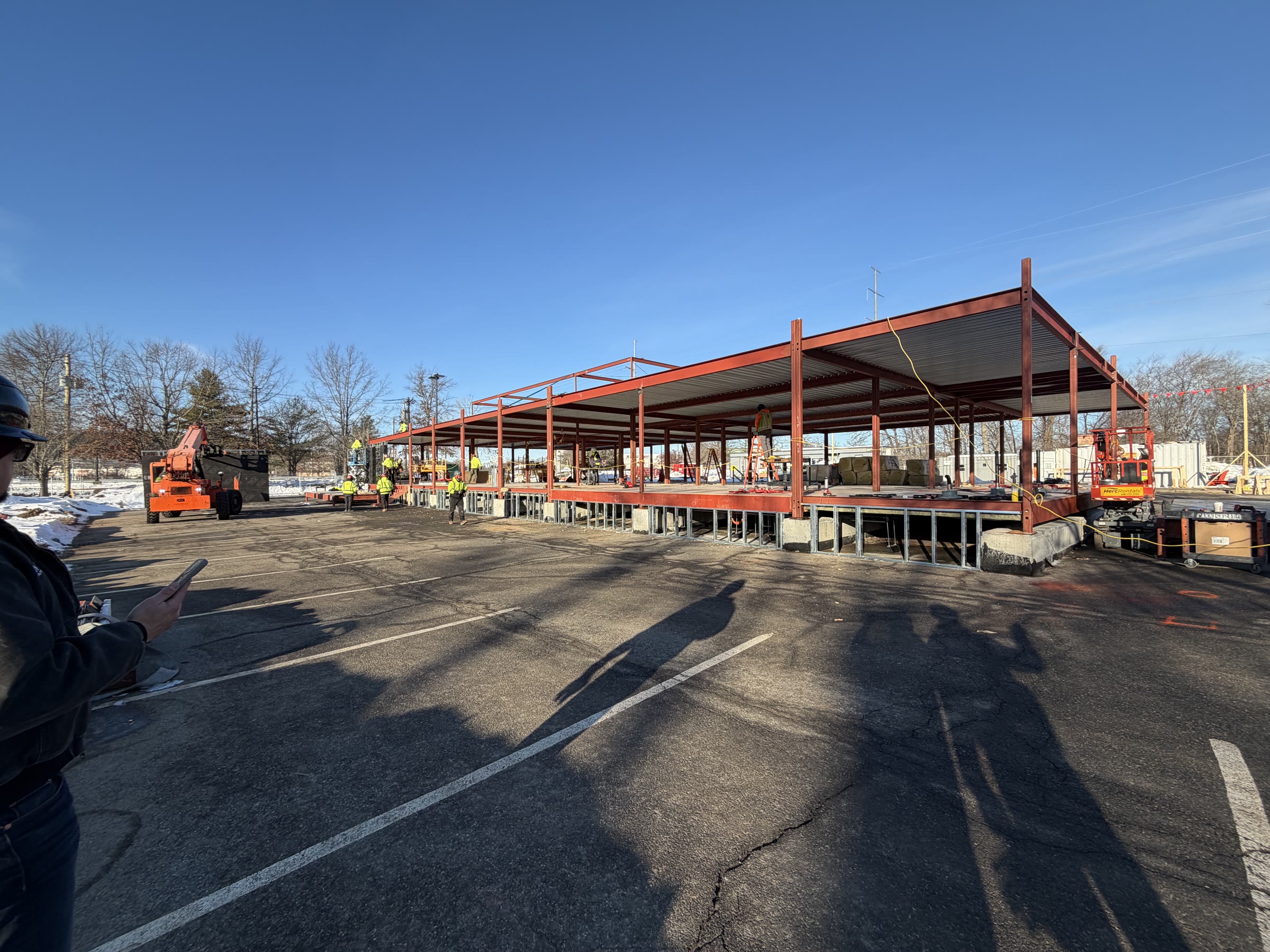

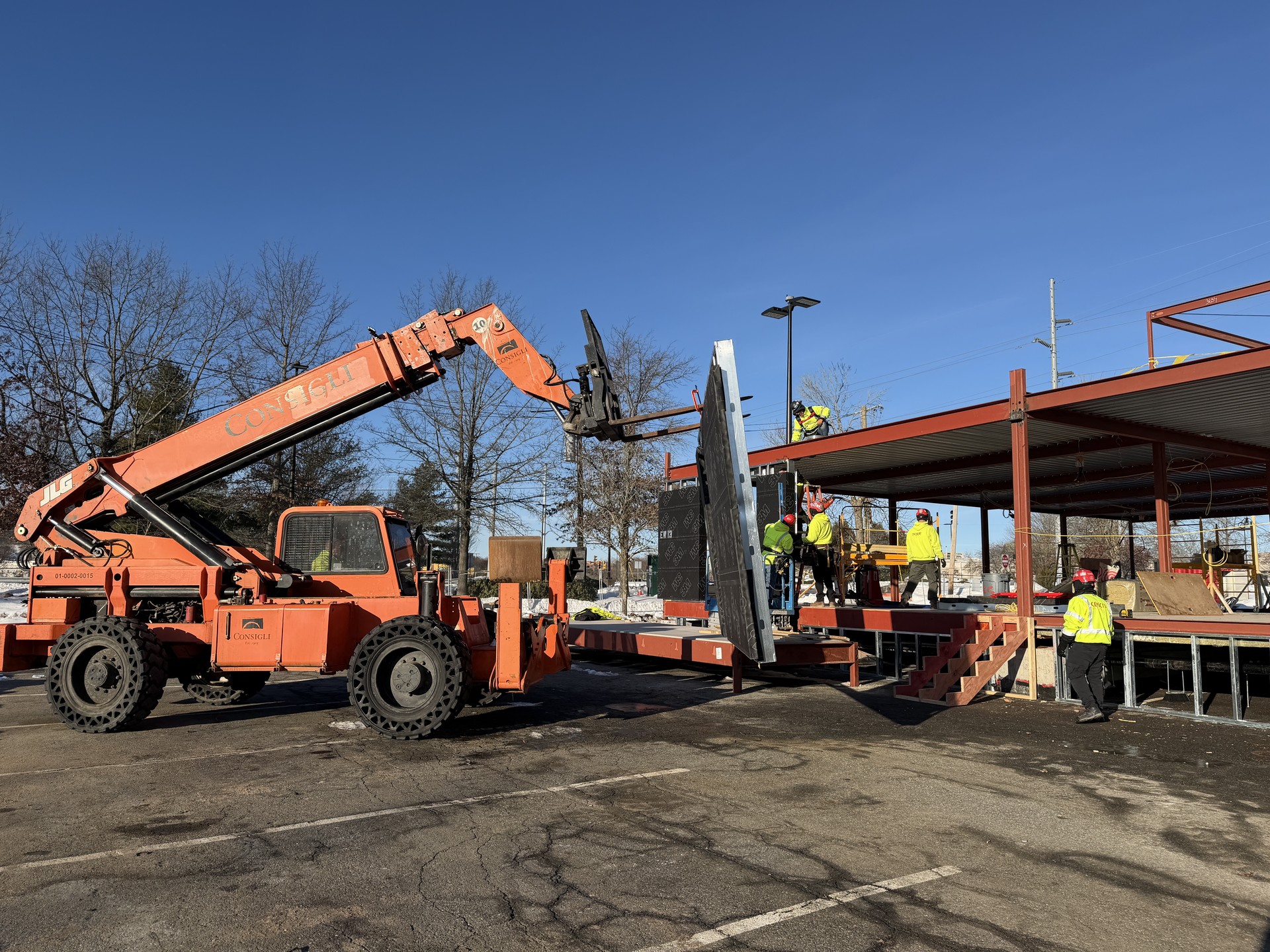

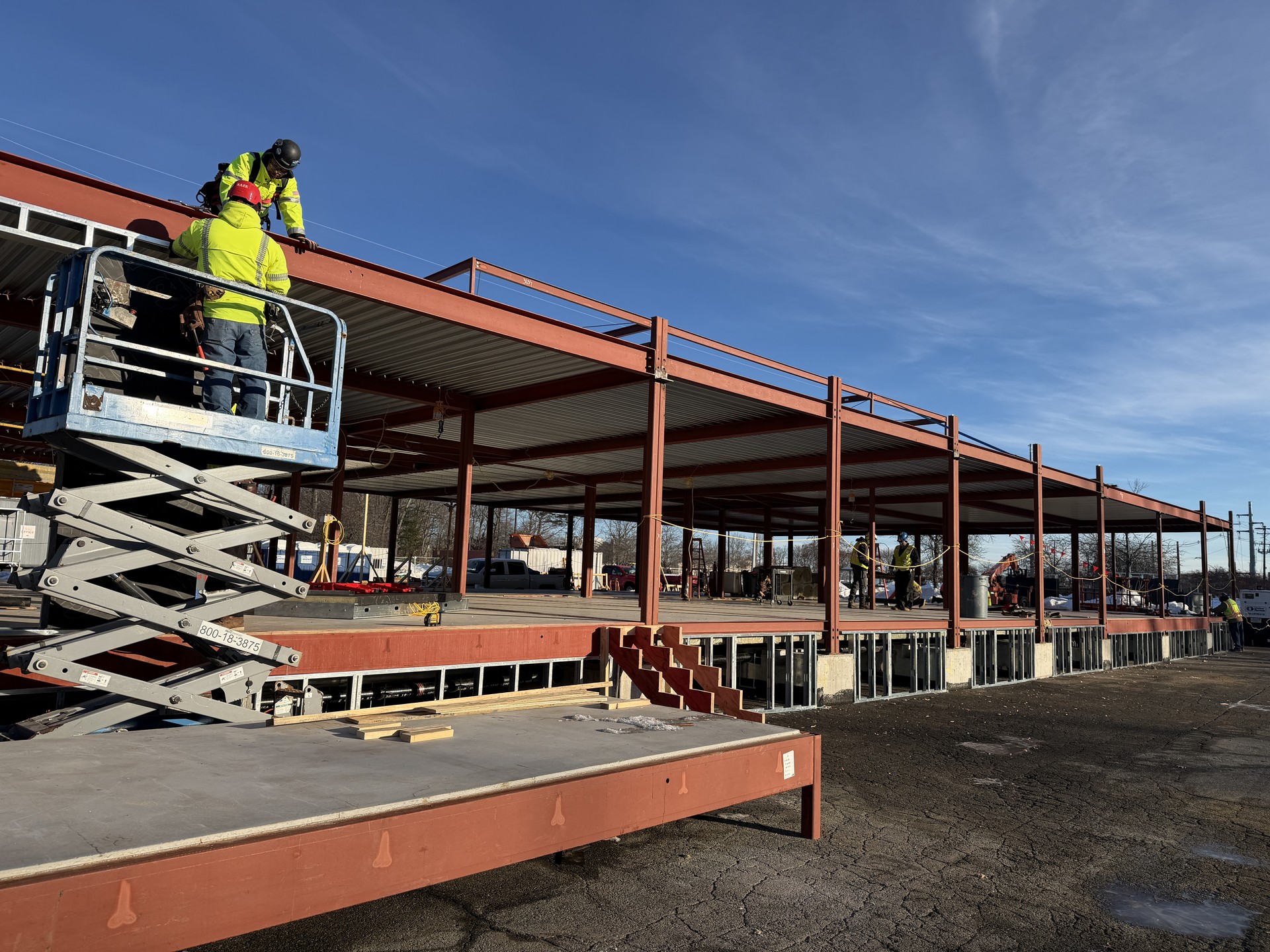

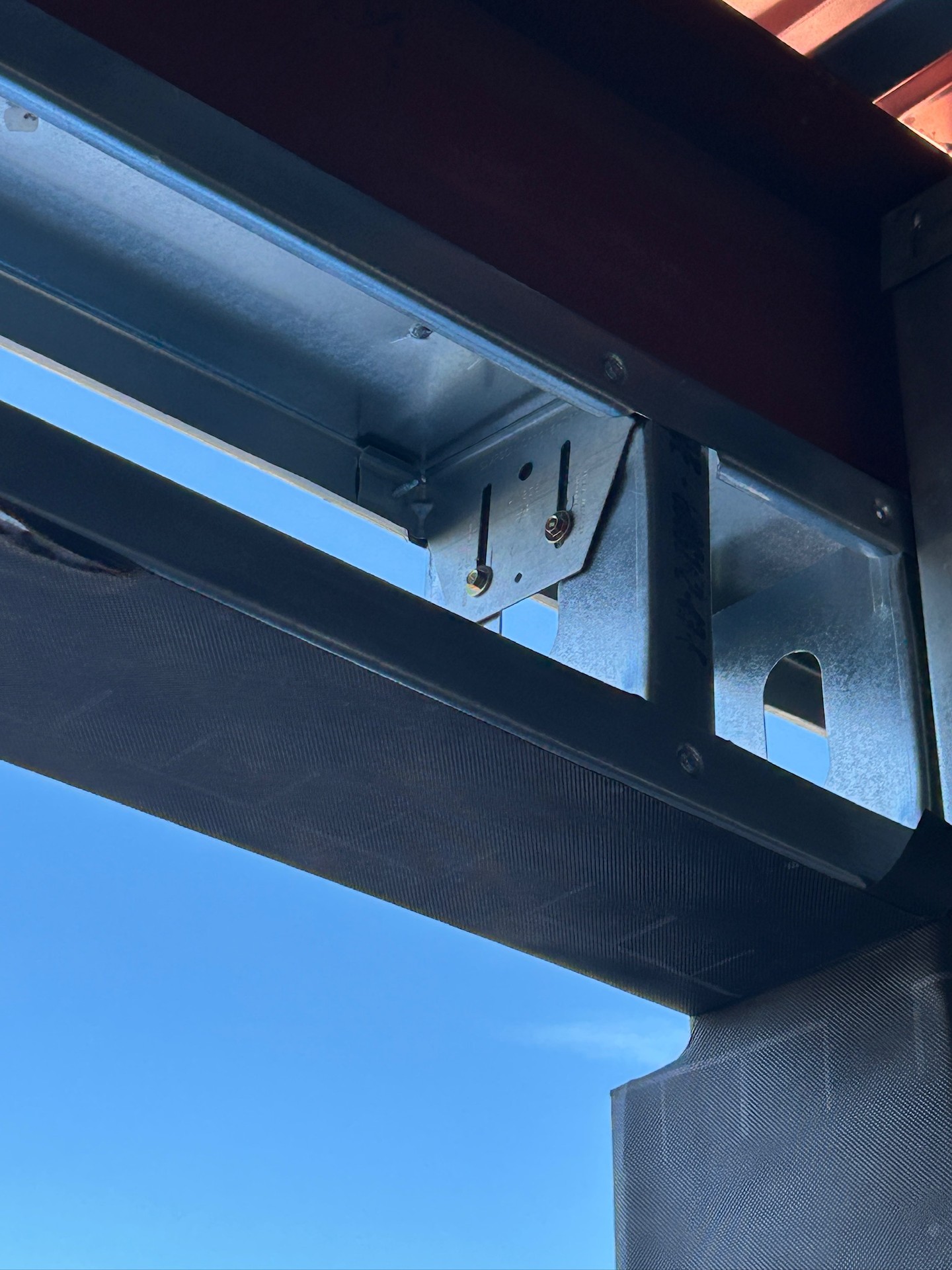

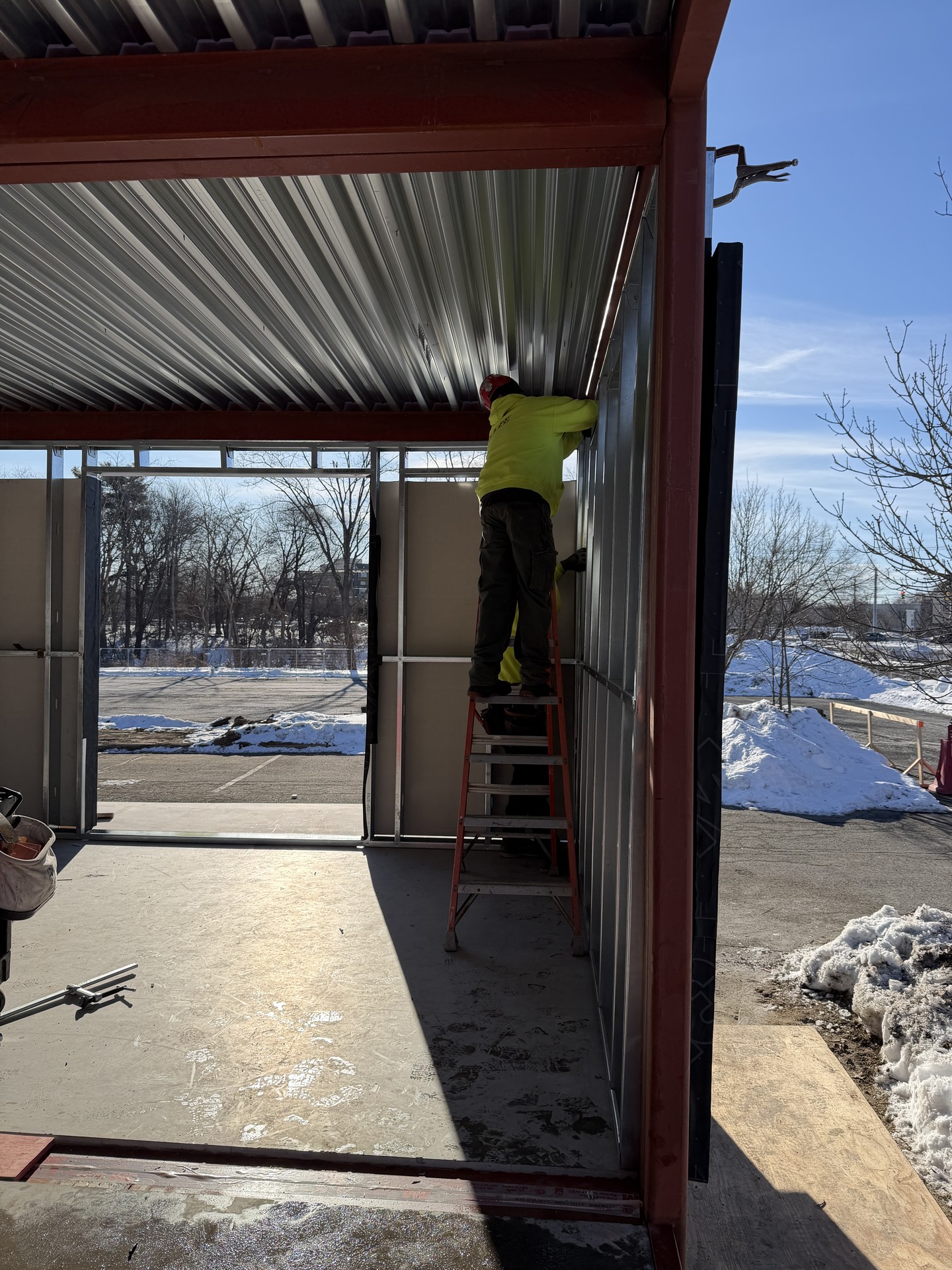

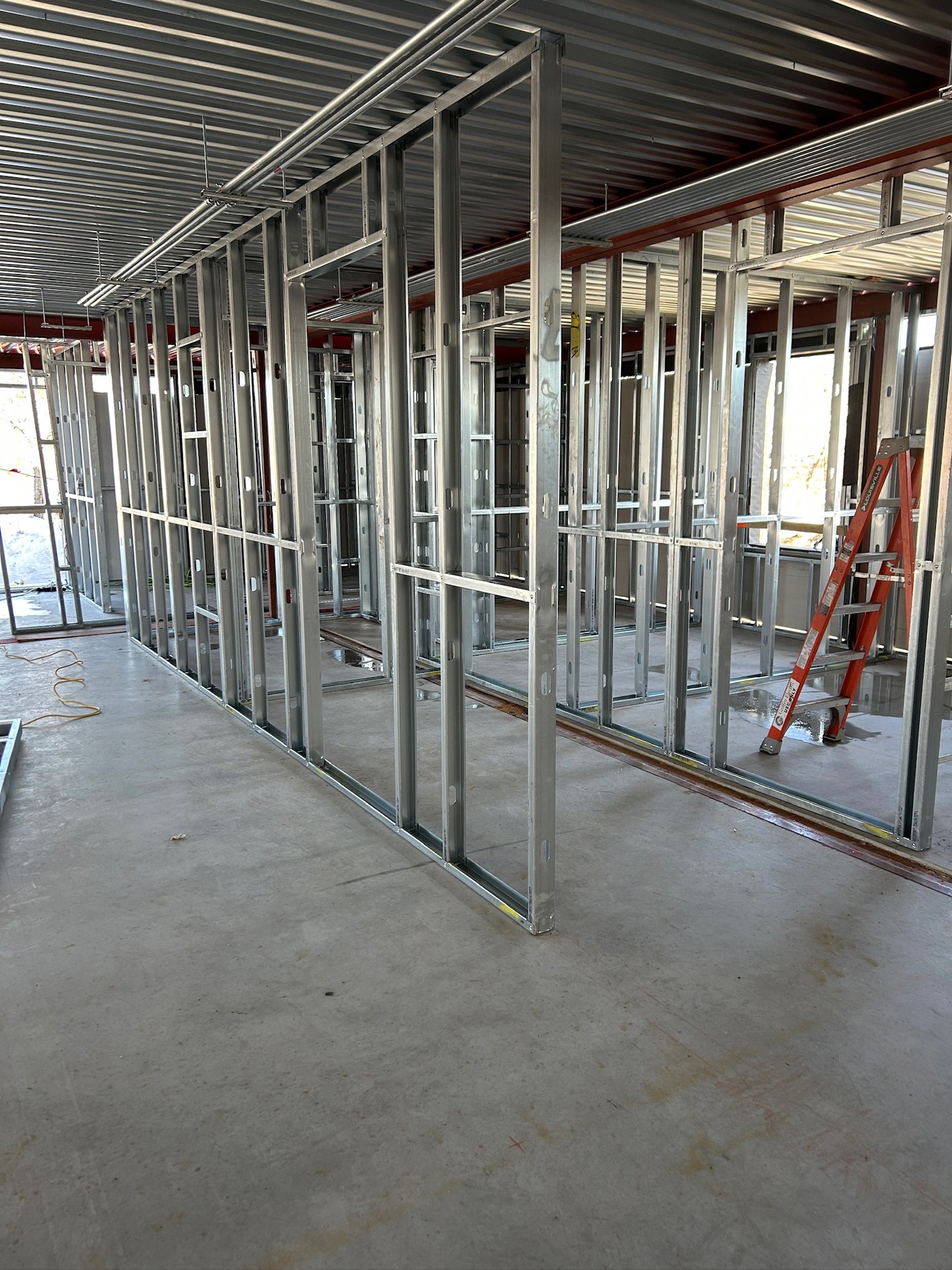

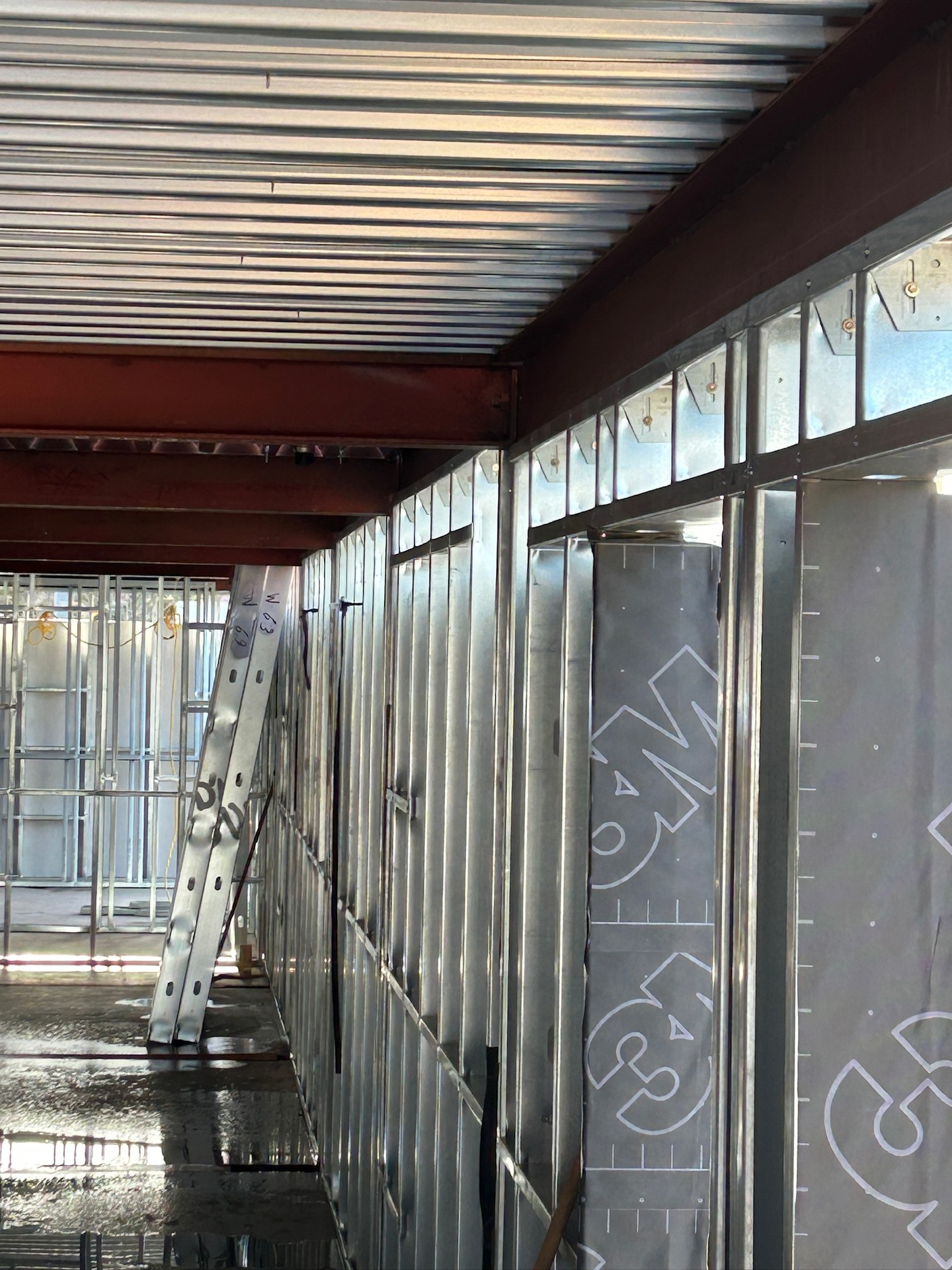

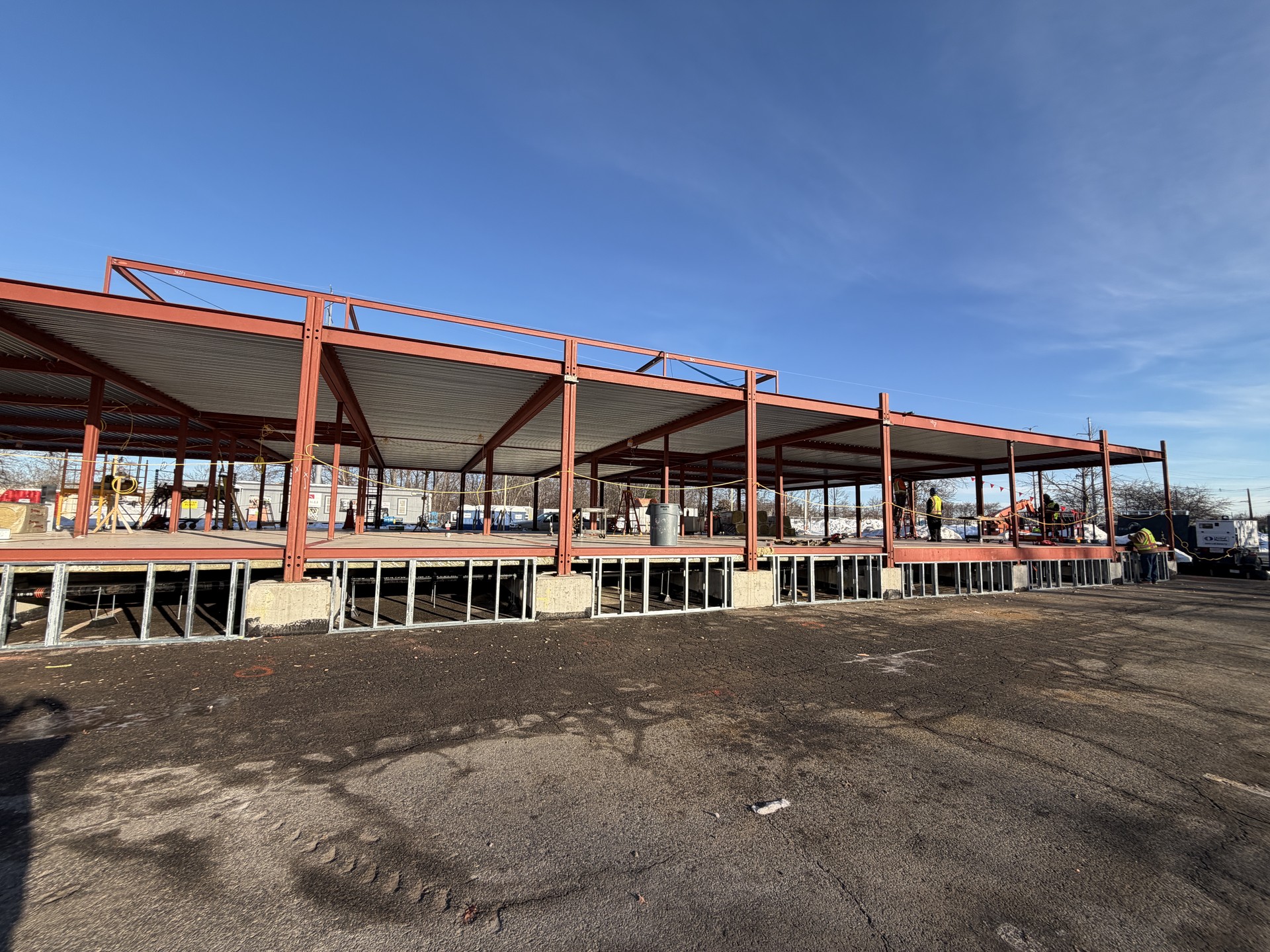

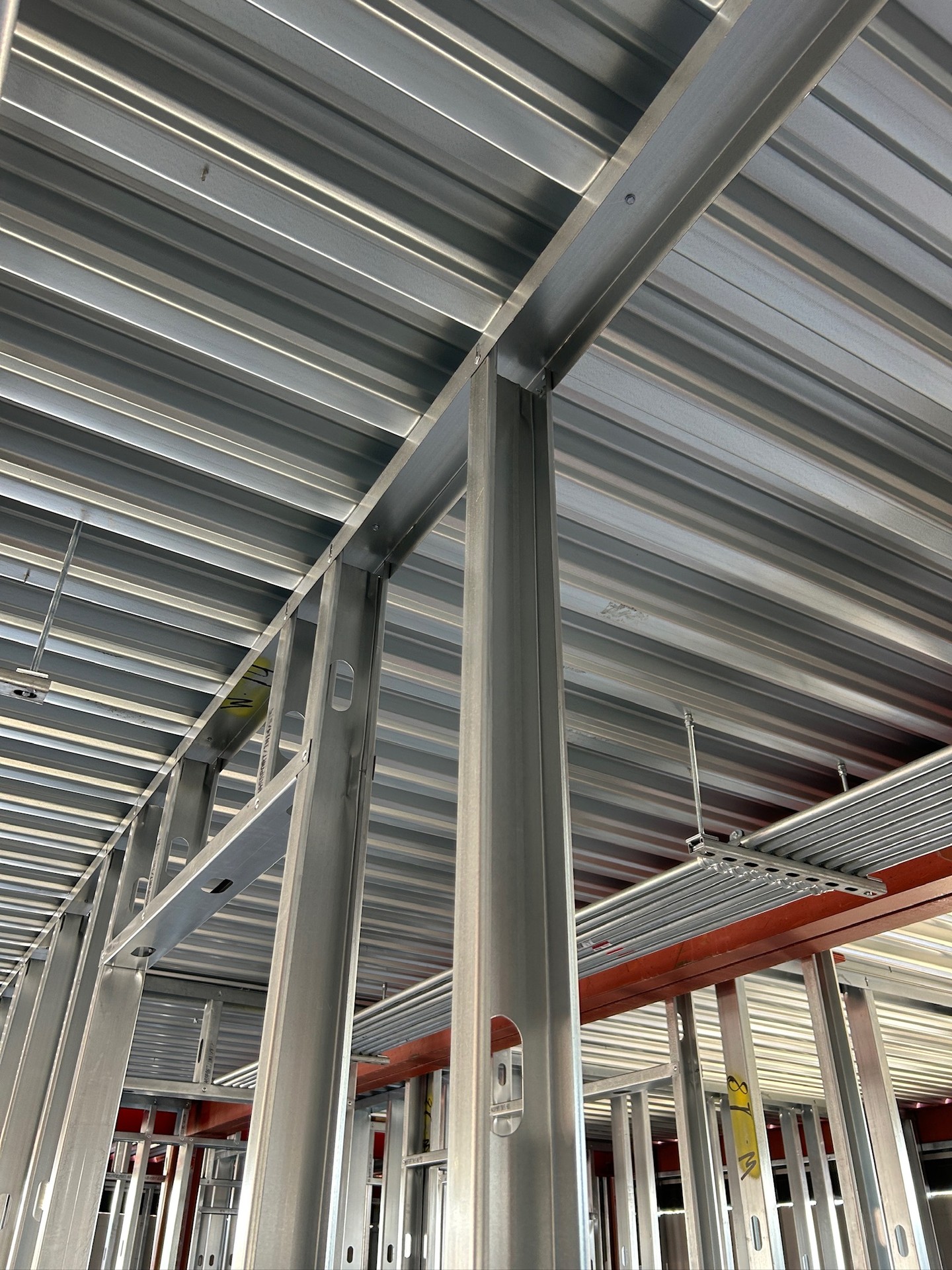

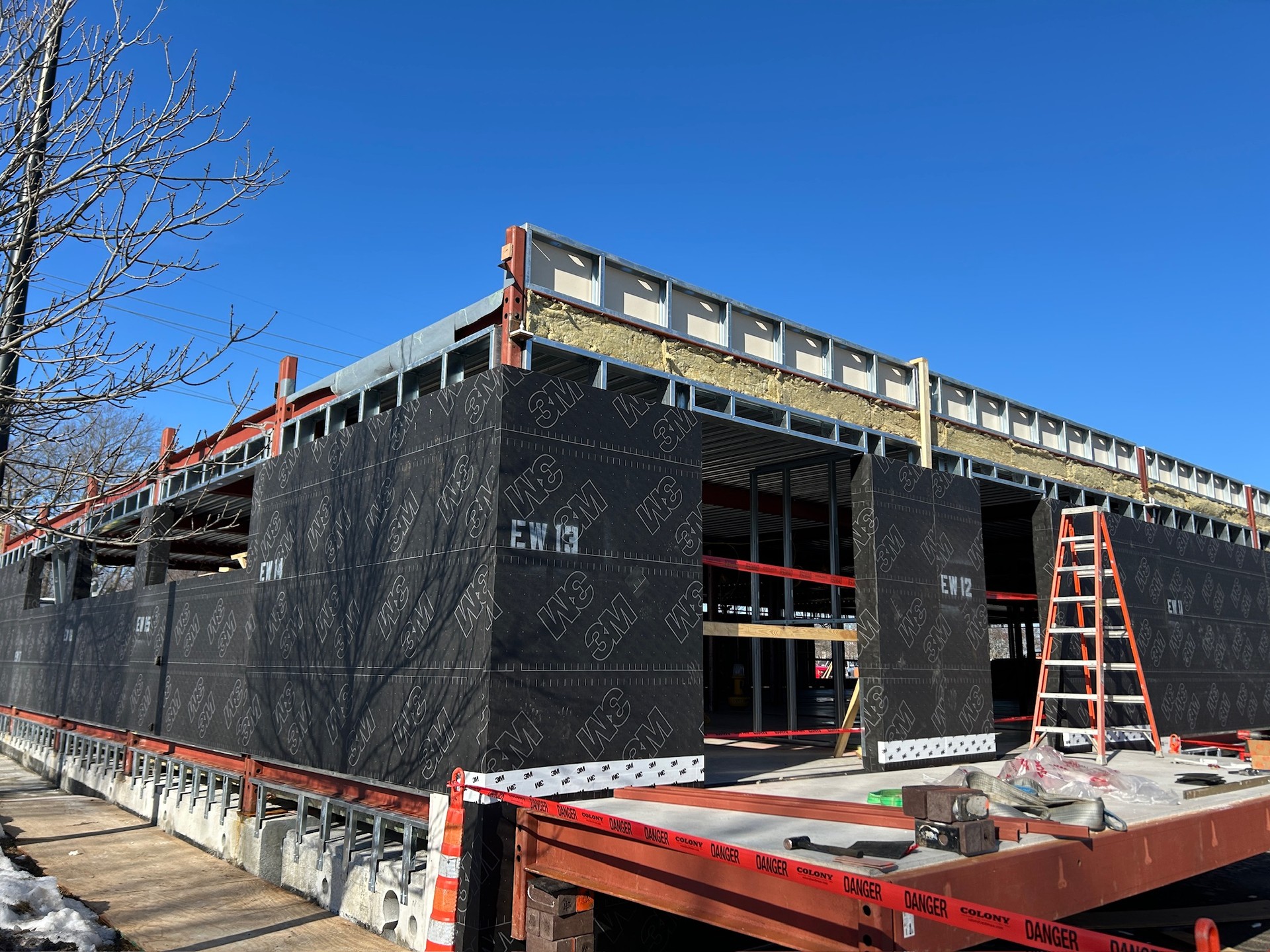

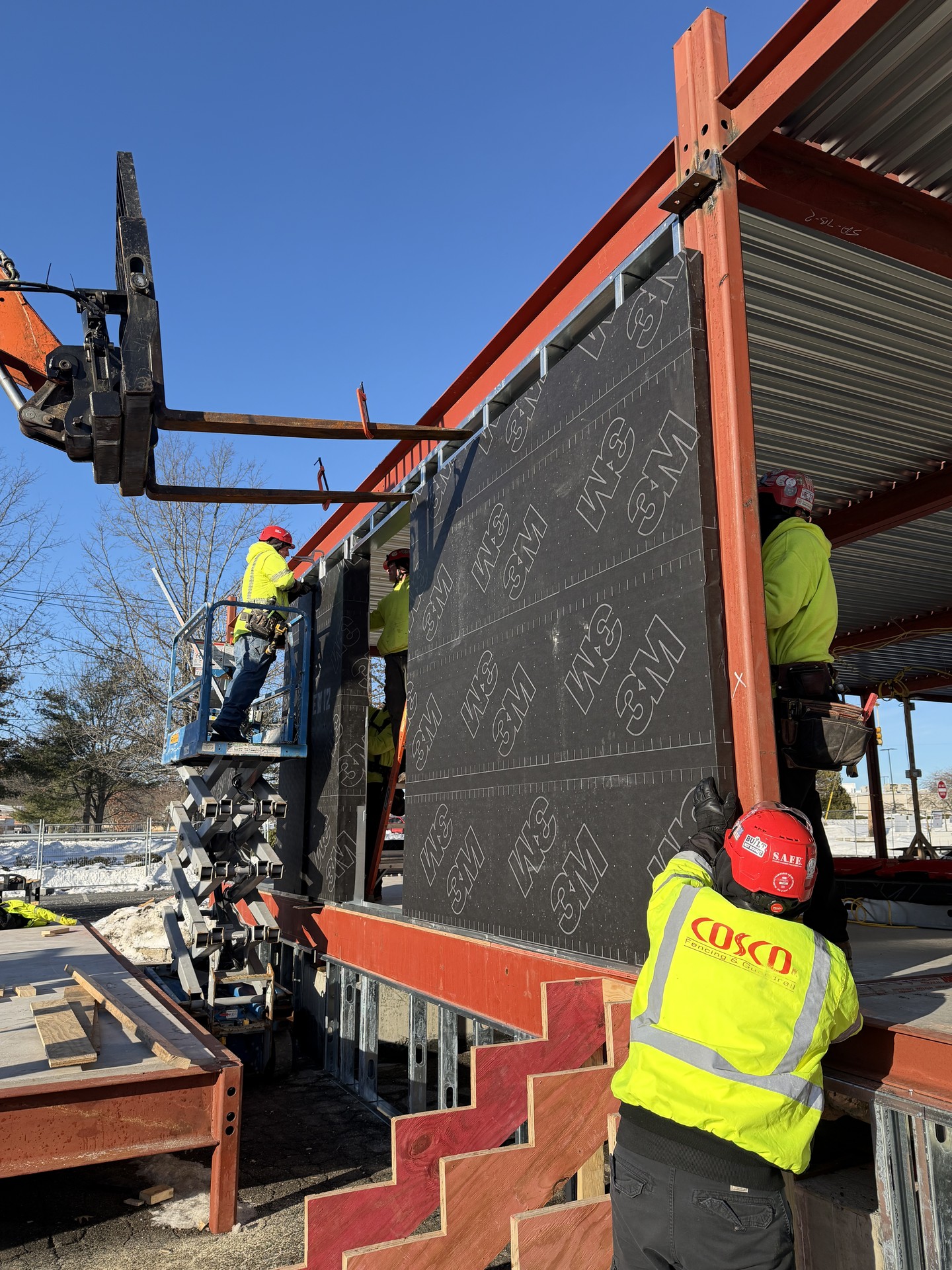

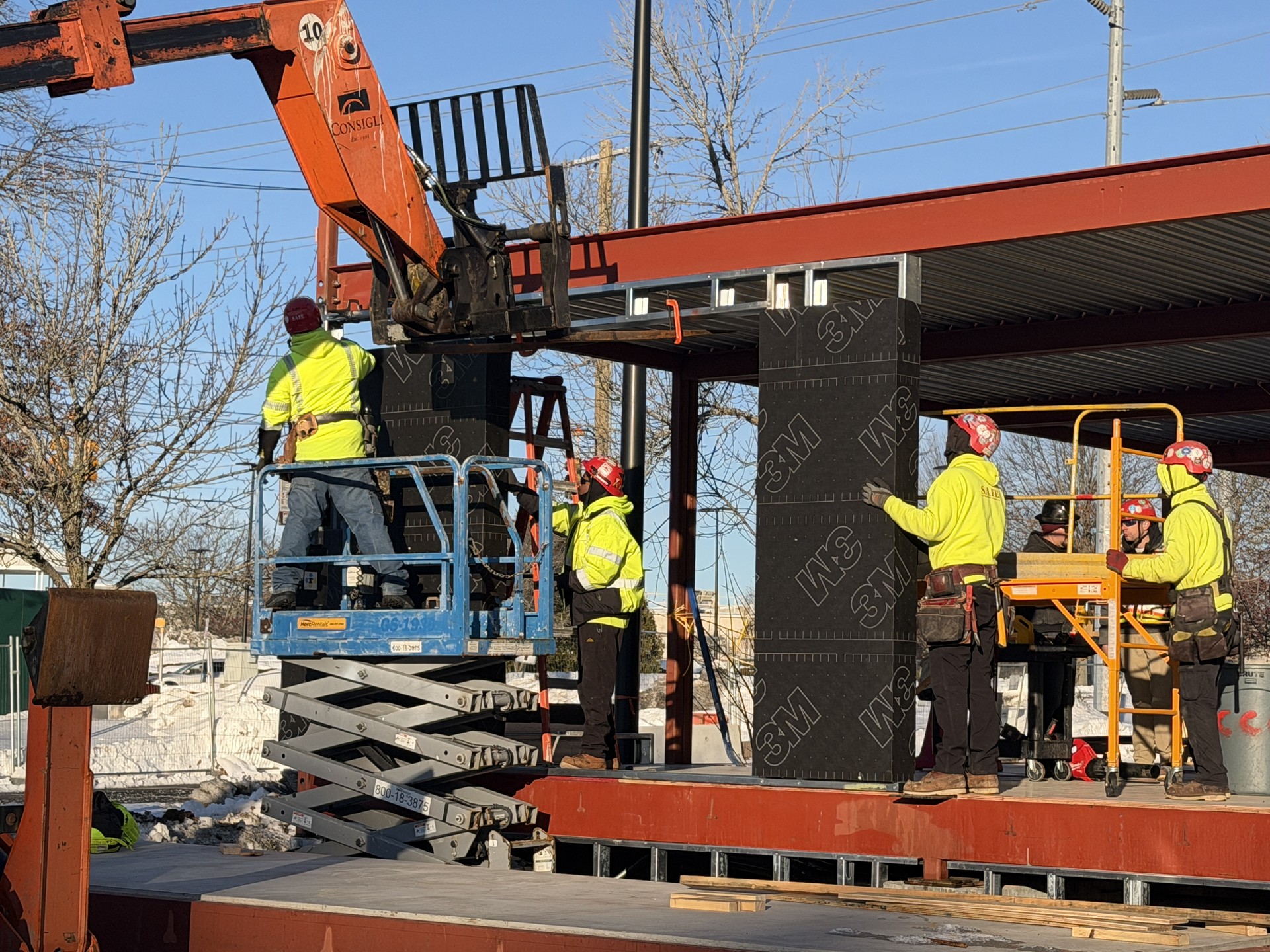

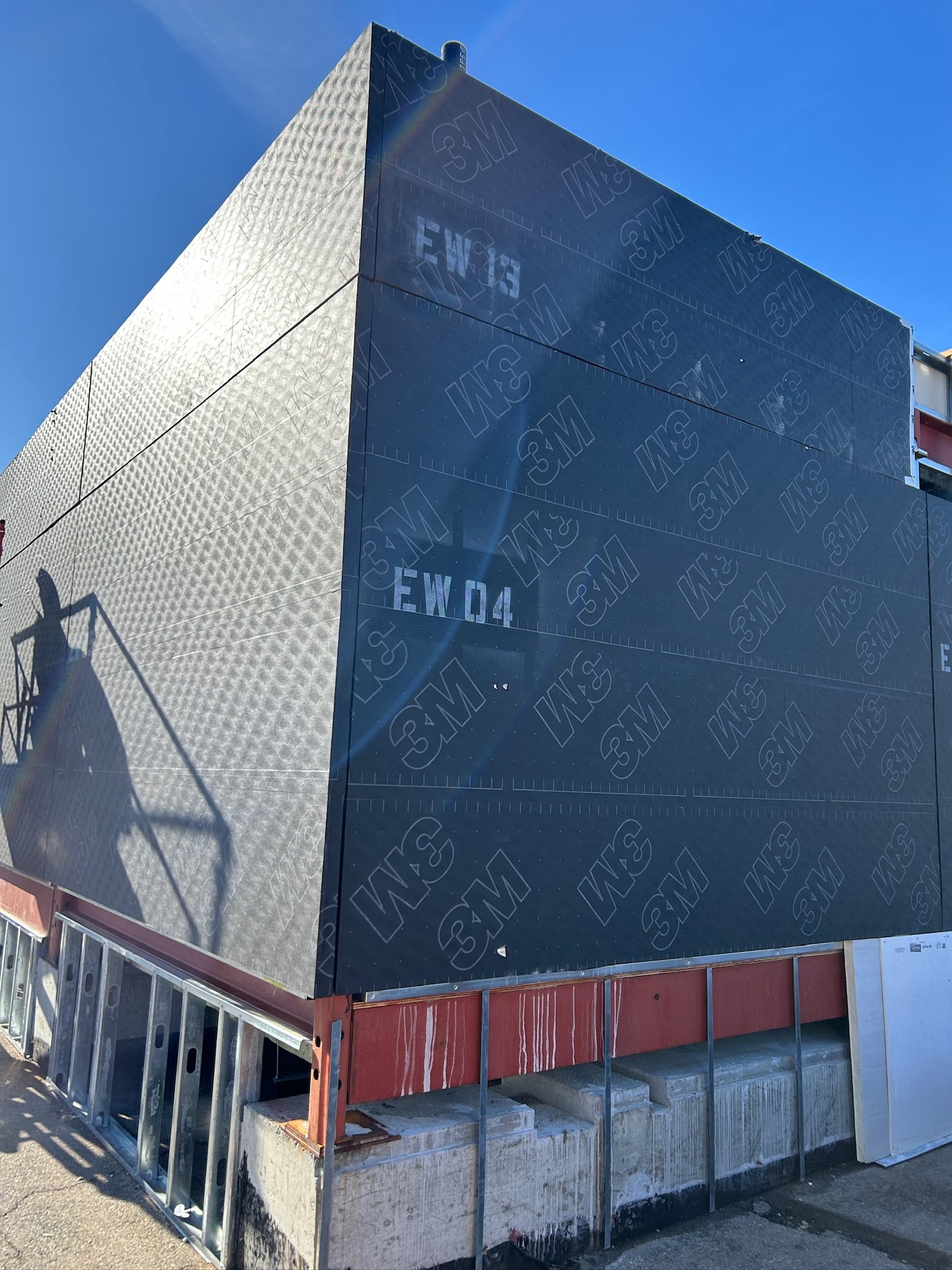

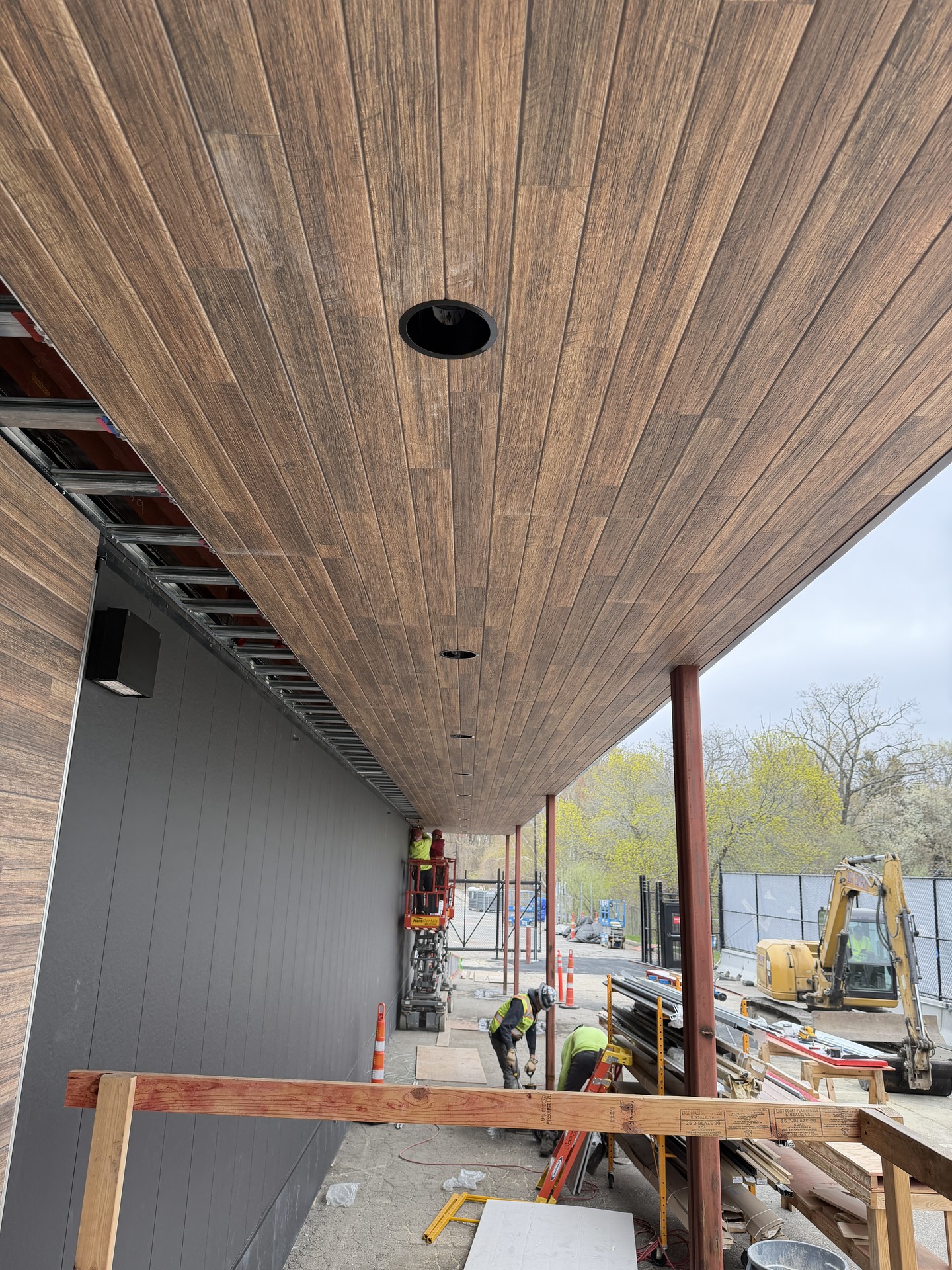

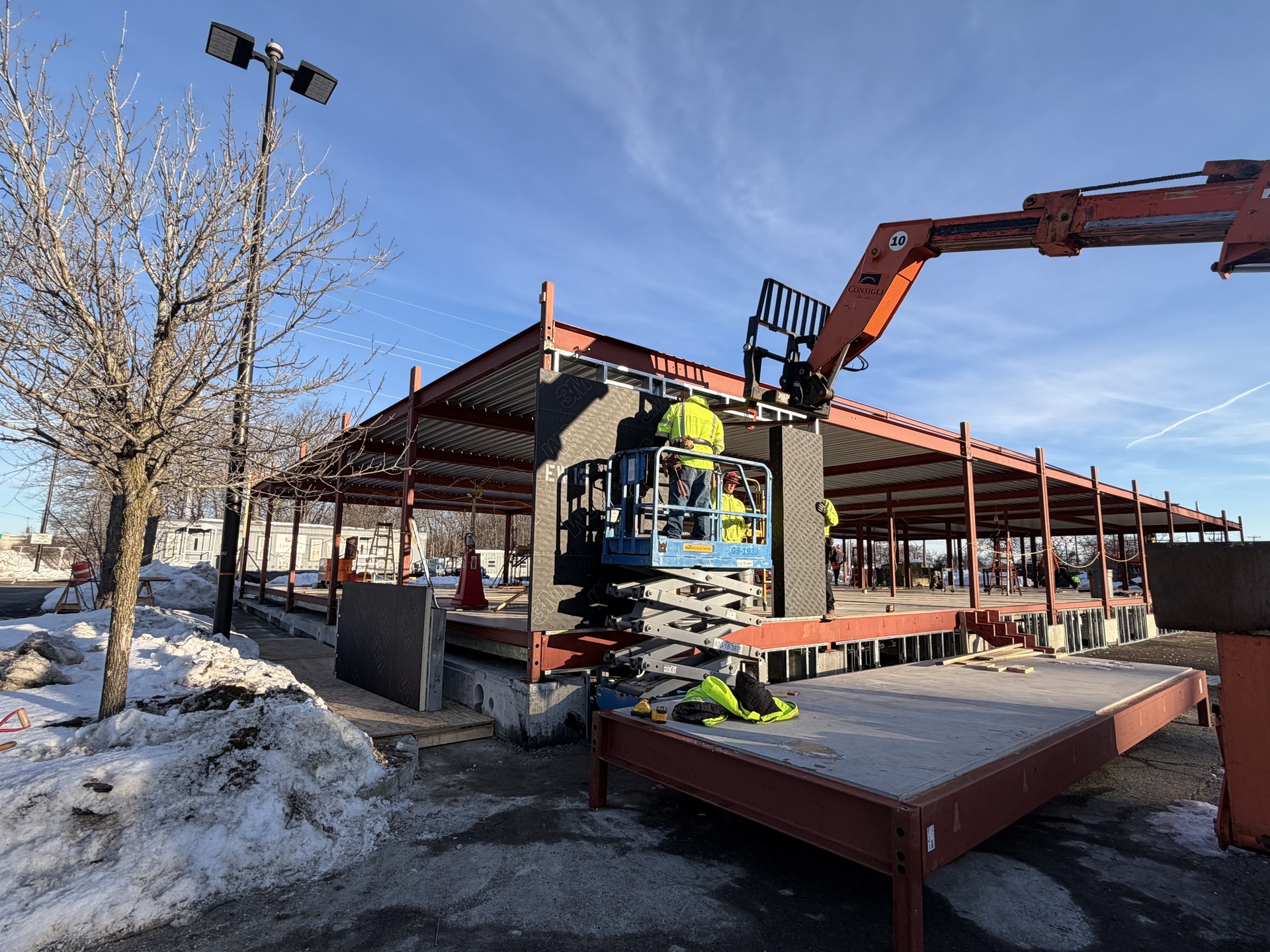

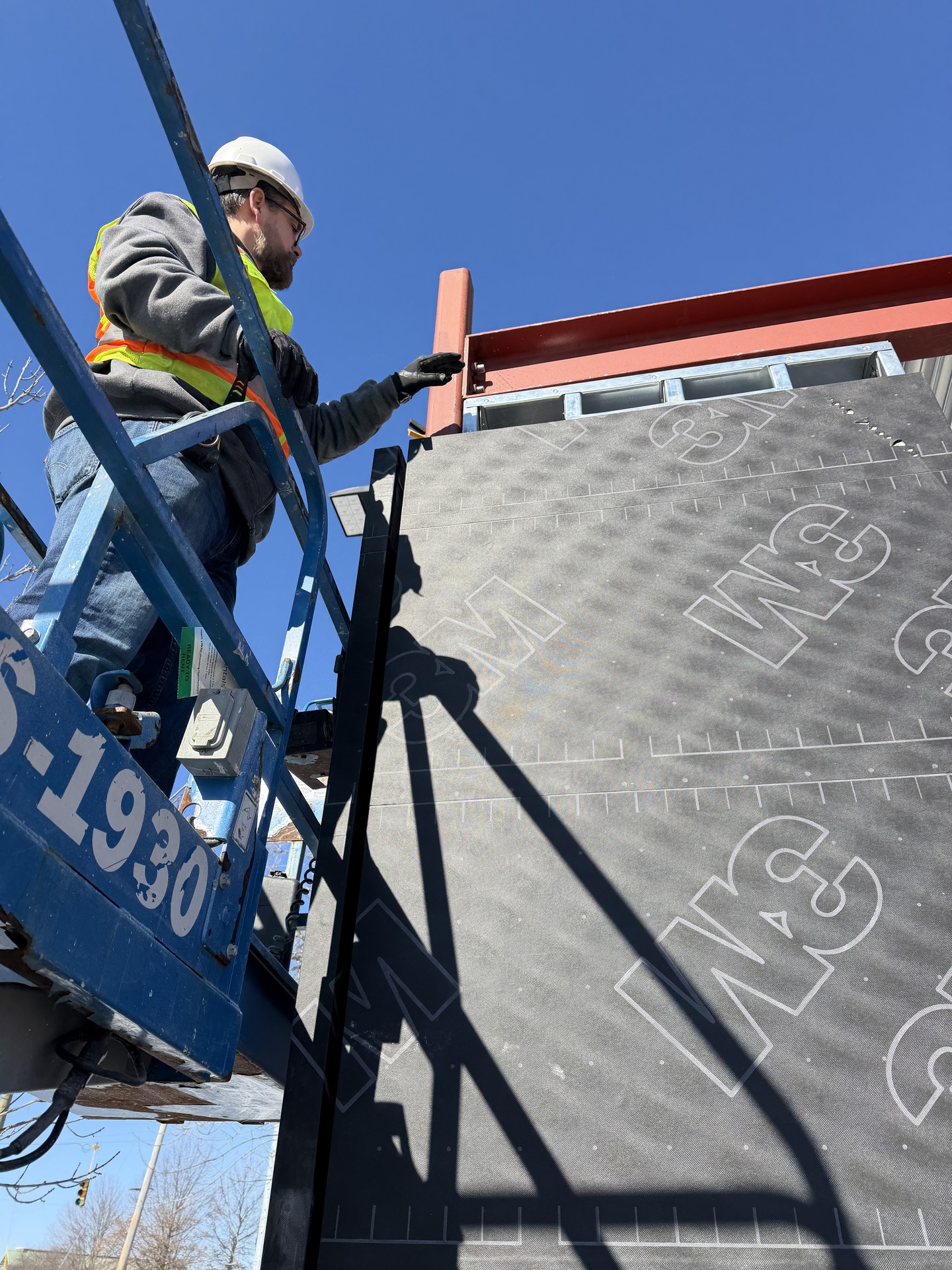

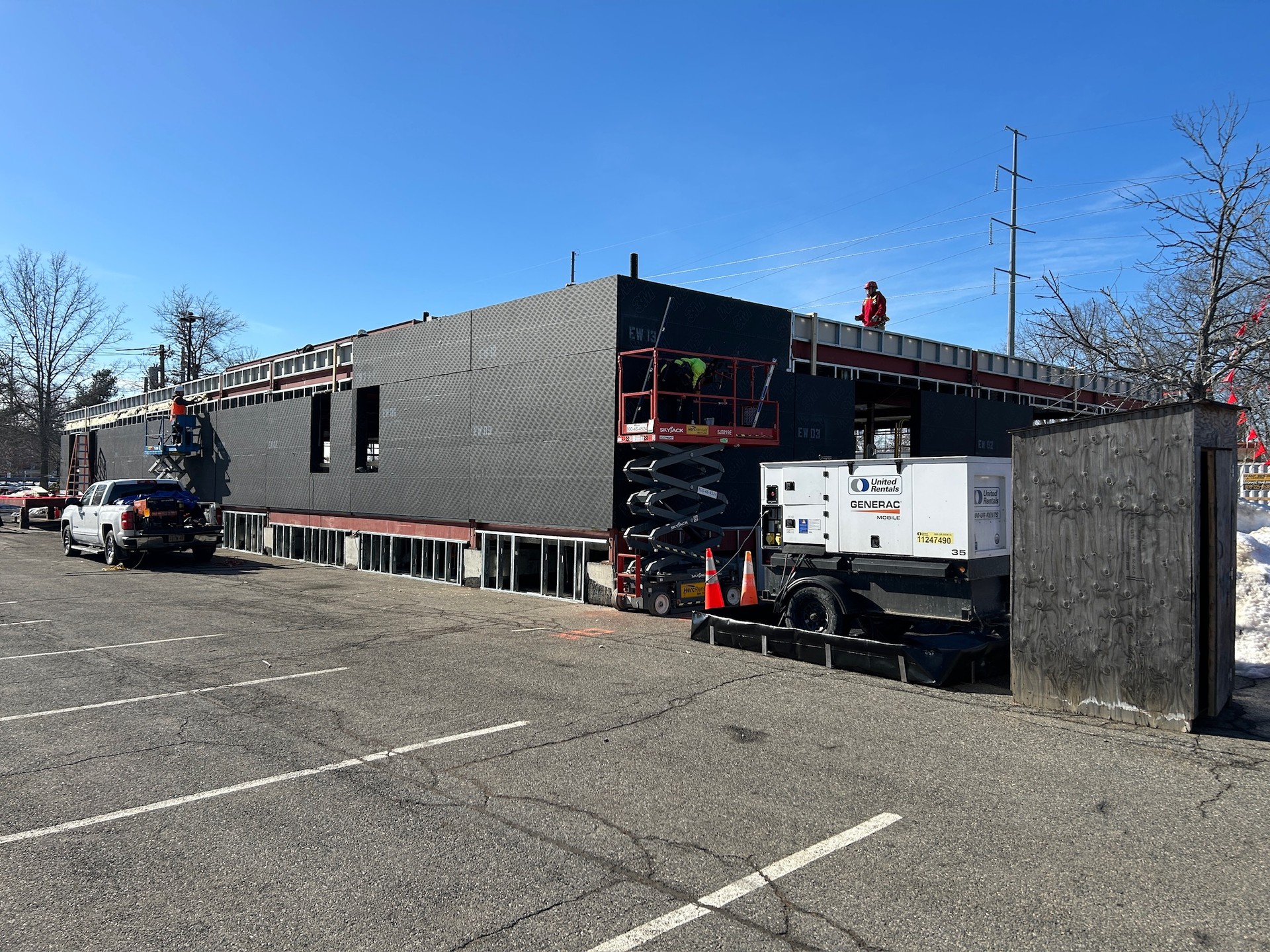

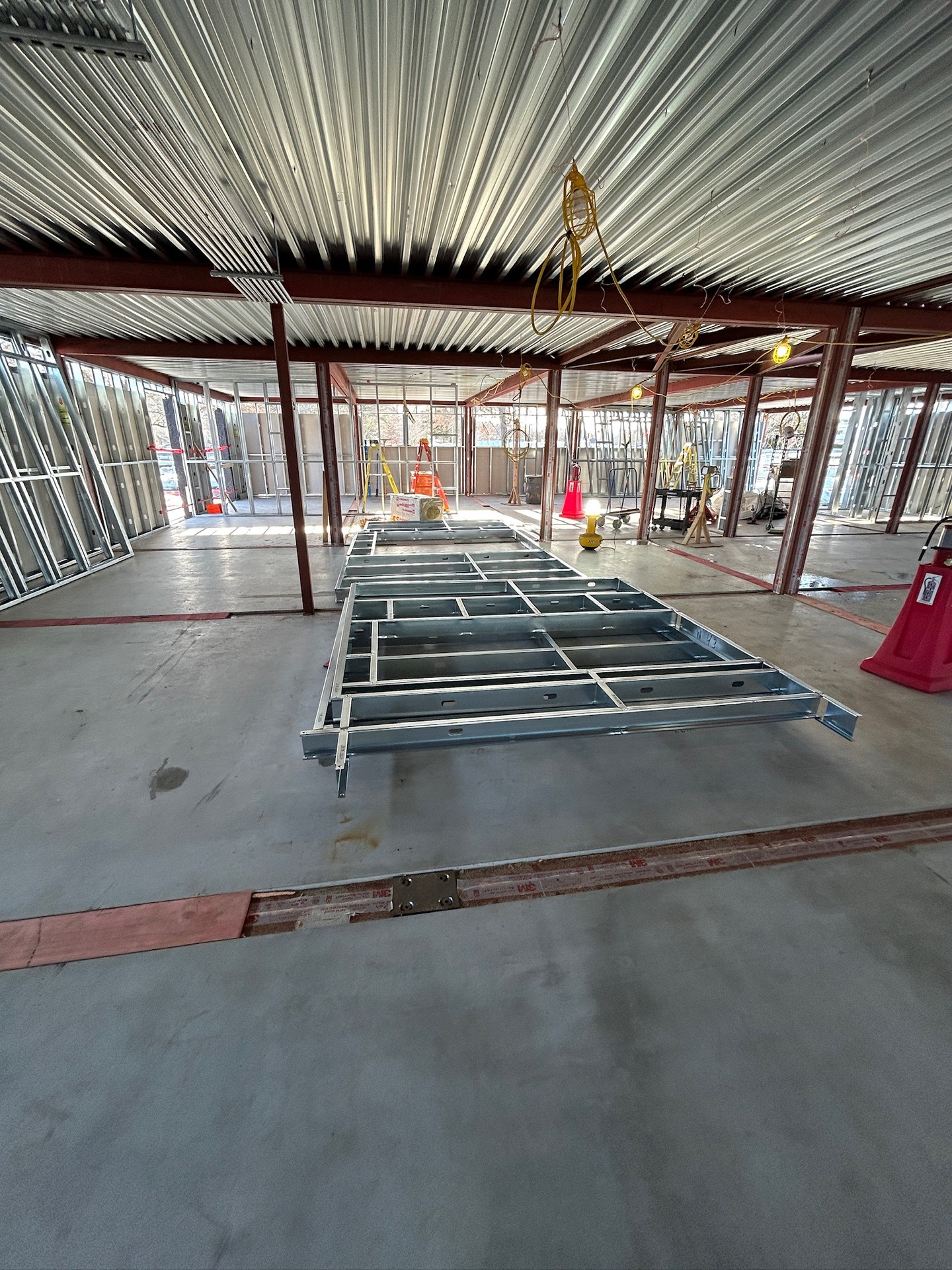

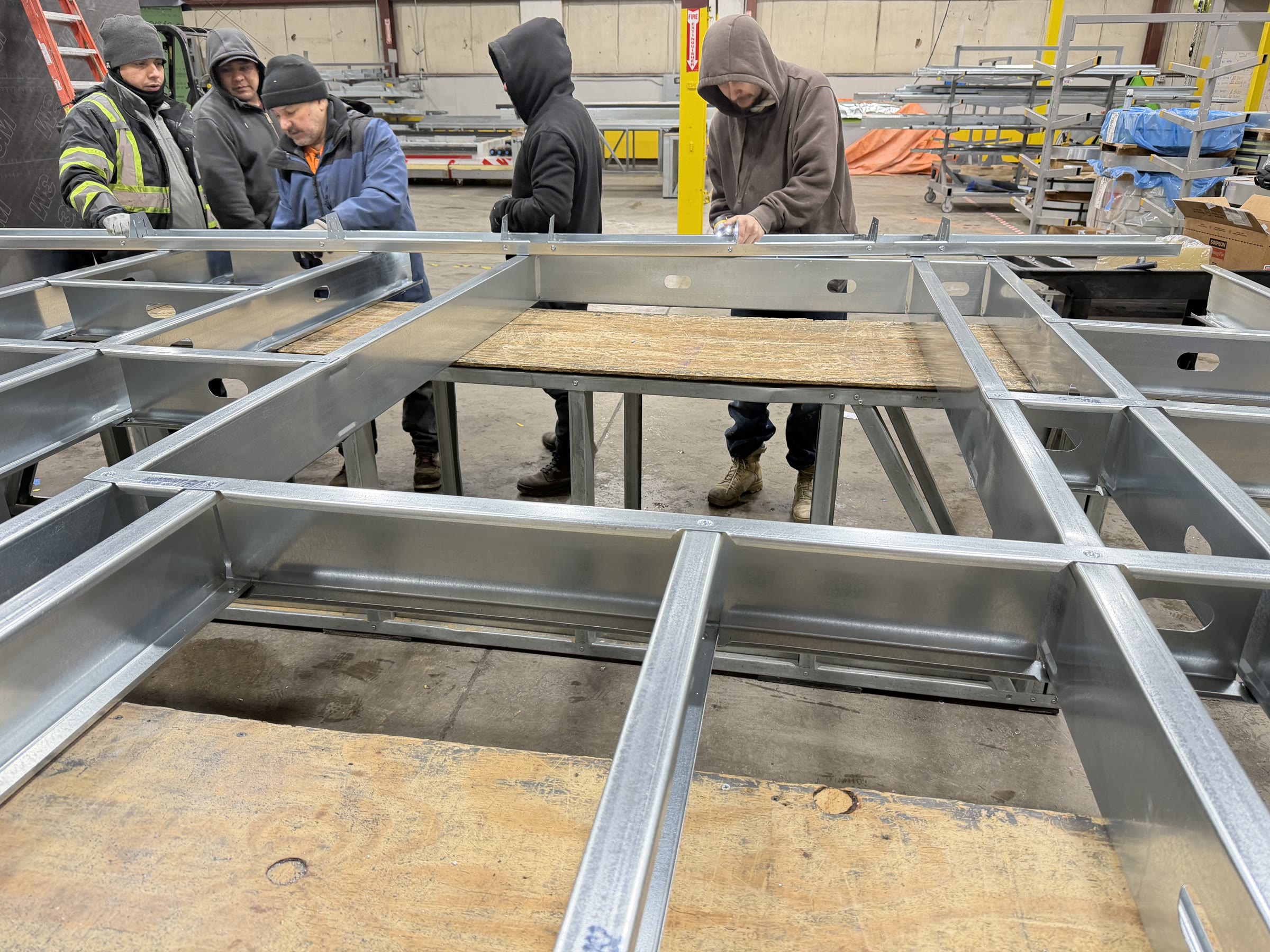

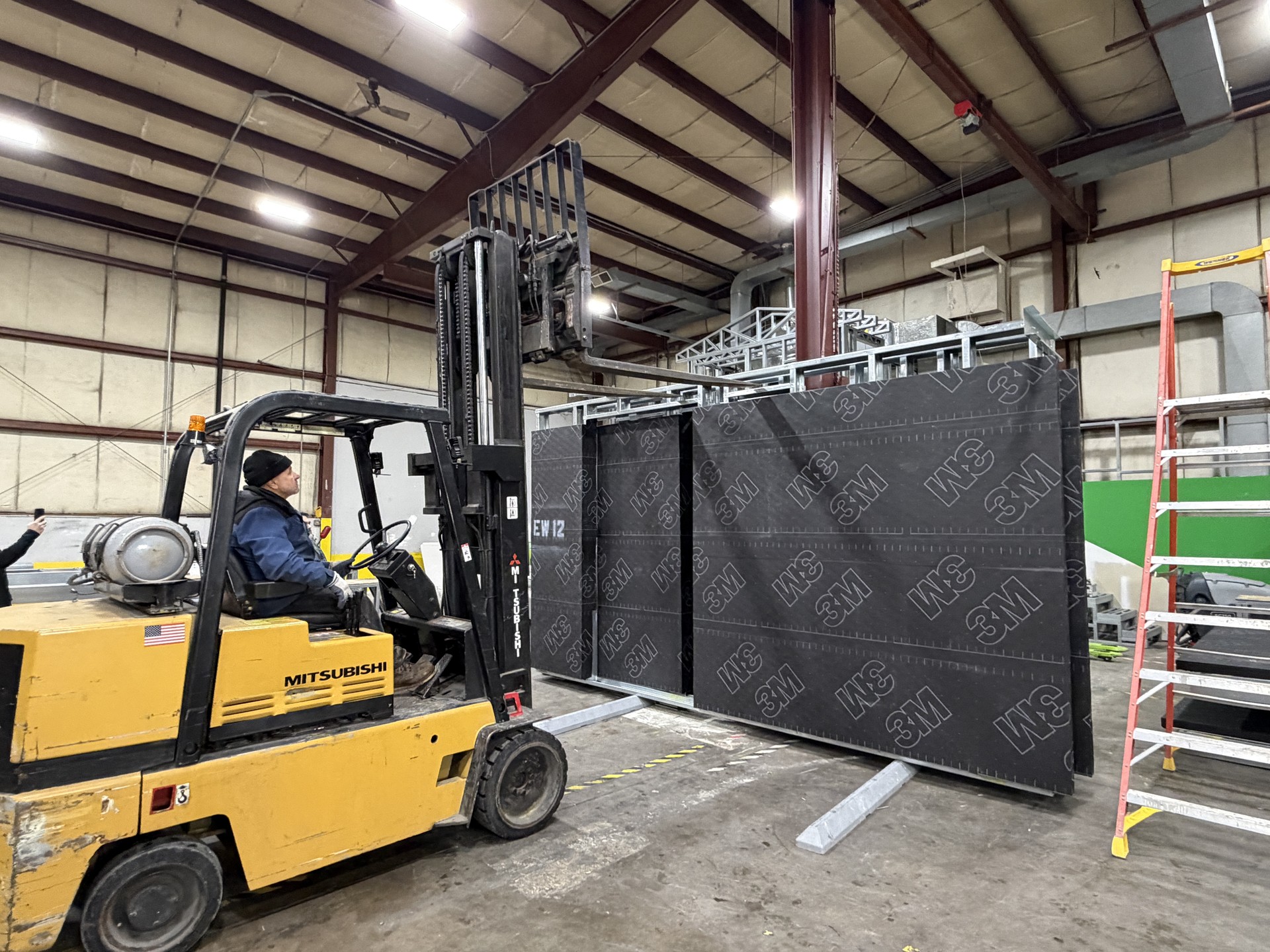

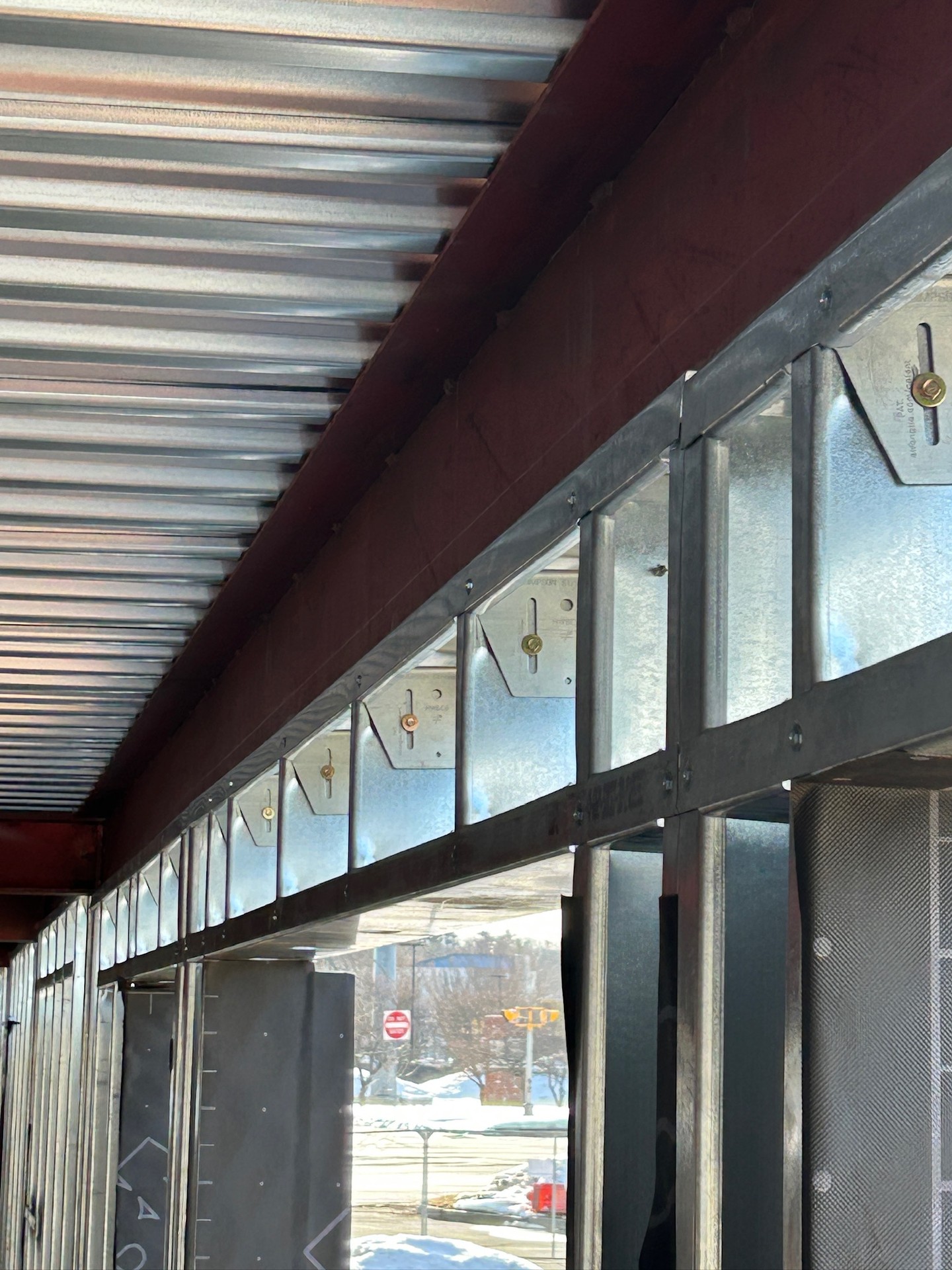

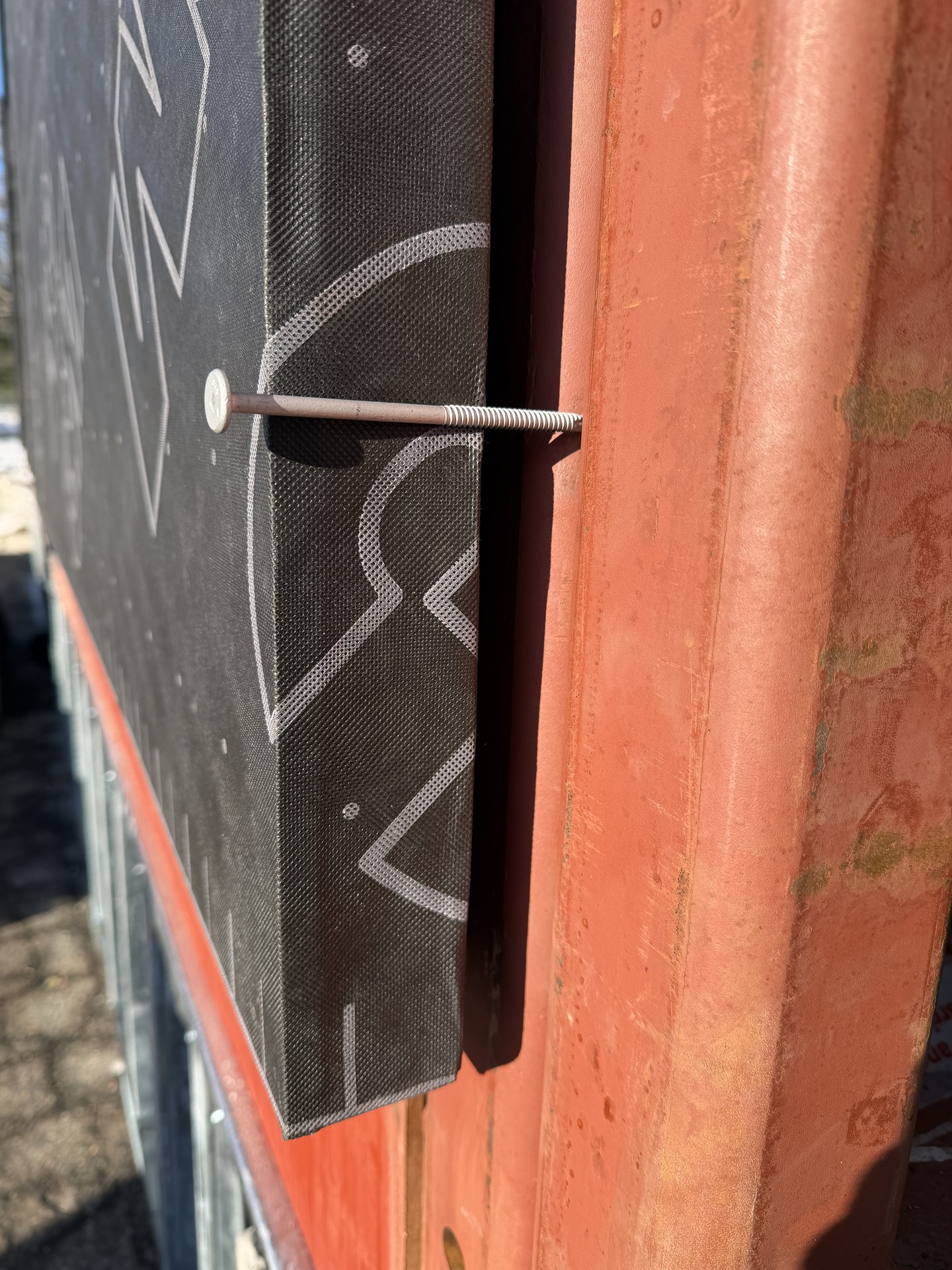

Field and shop views from framing through panel installation.

Scope

CFS work completed for this project

  1. 01

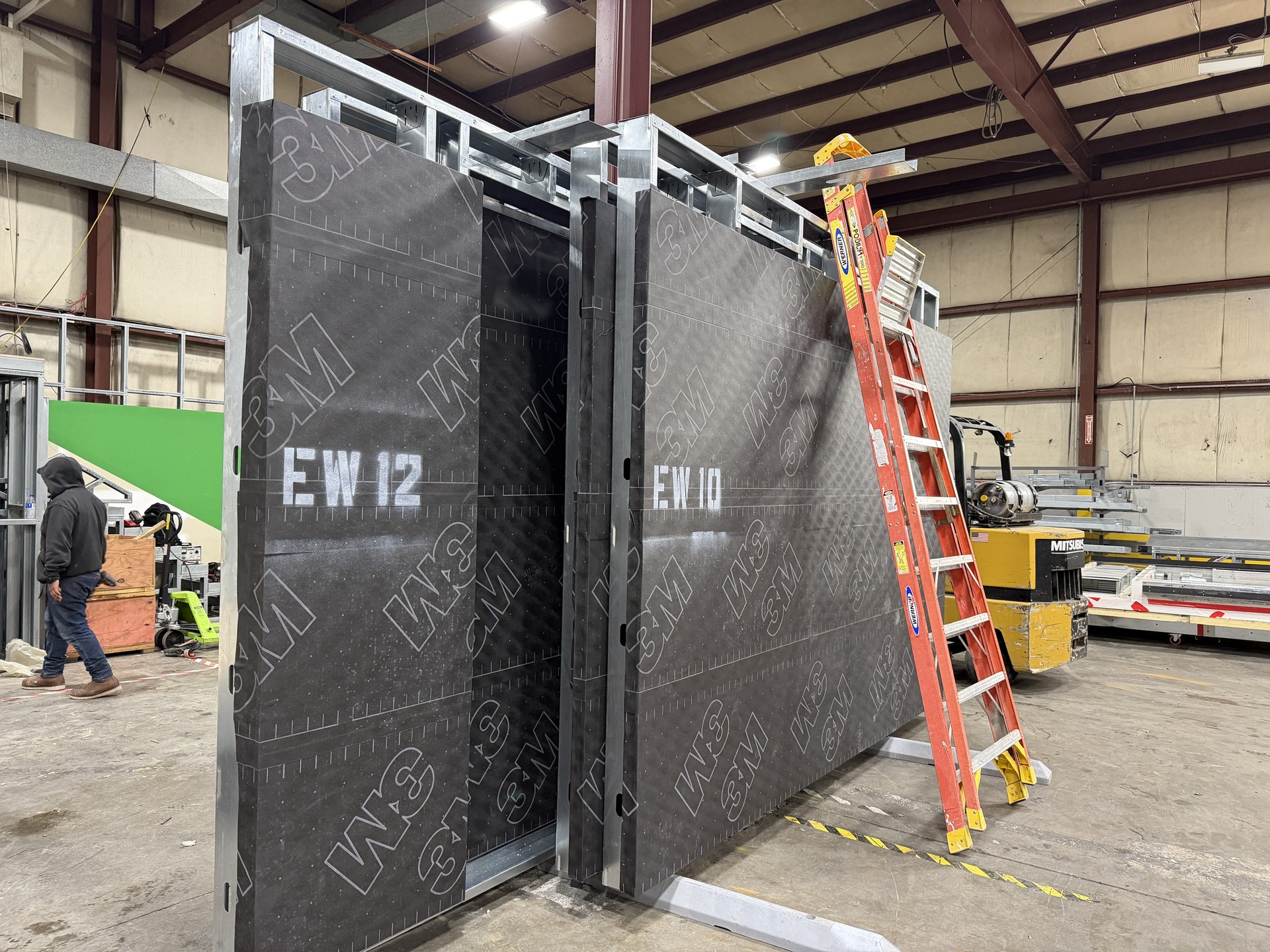

    Exterior load-bearing wall package

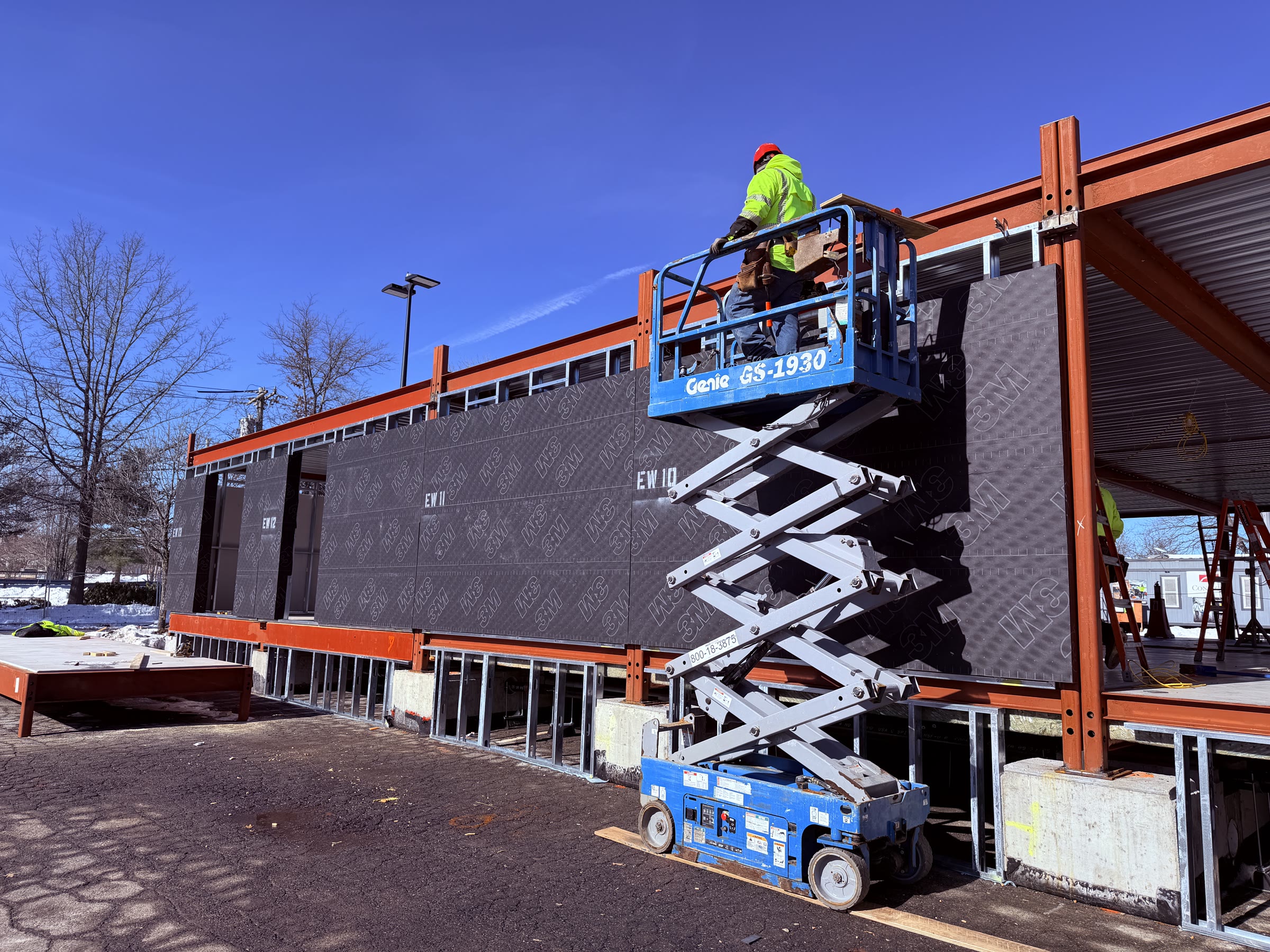

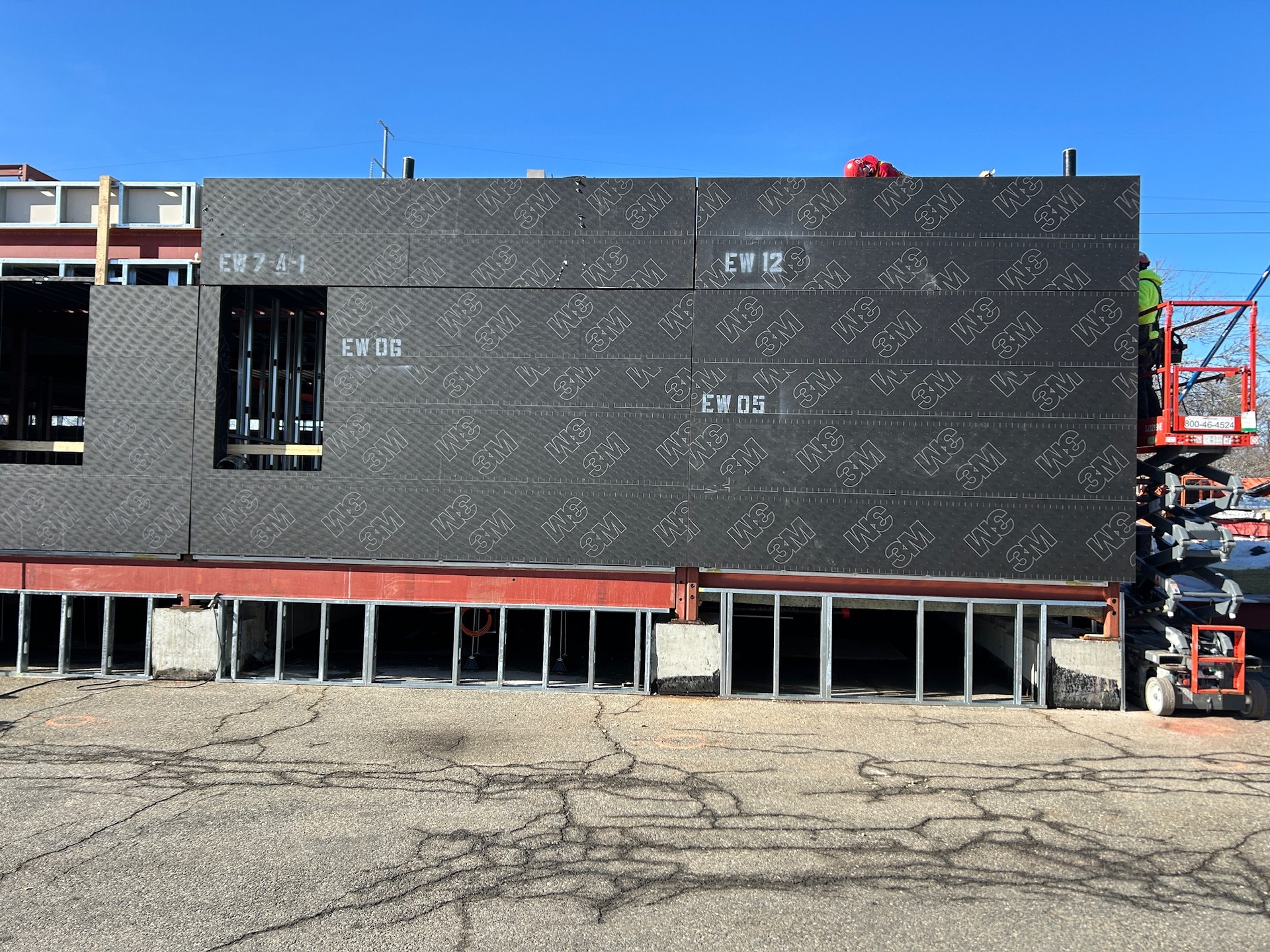

    CFS exterior panels (EW1–EW27) detailed with openings, headers and jambs for terminal perimeter walls.

    27 EXTERIOR PANELS
  2. 02

    Interior wall package

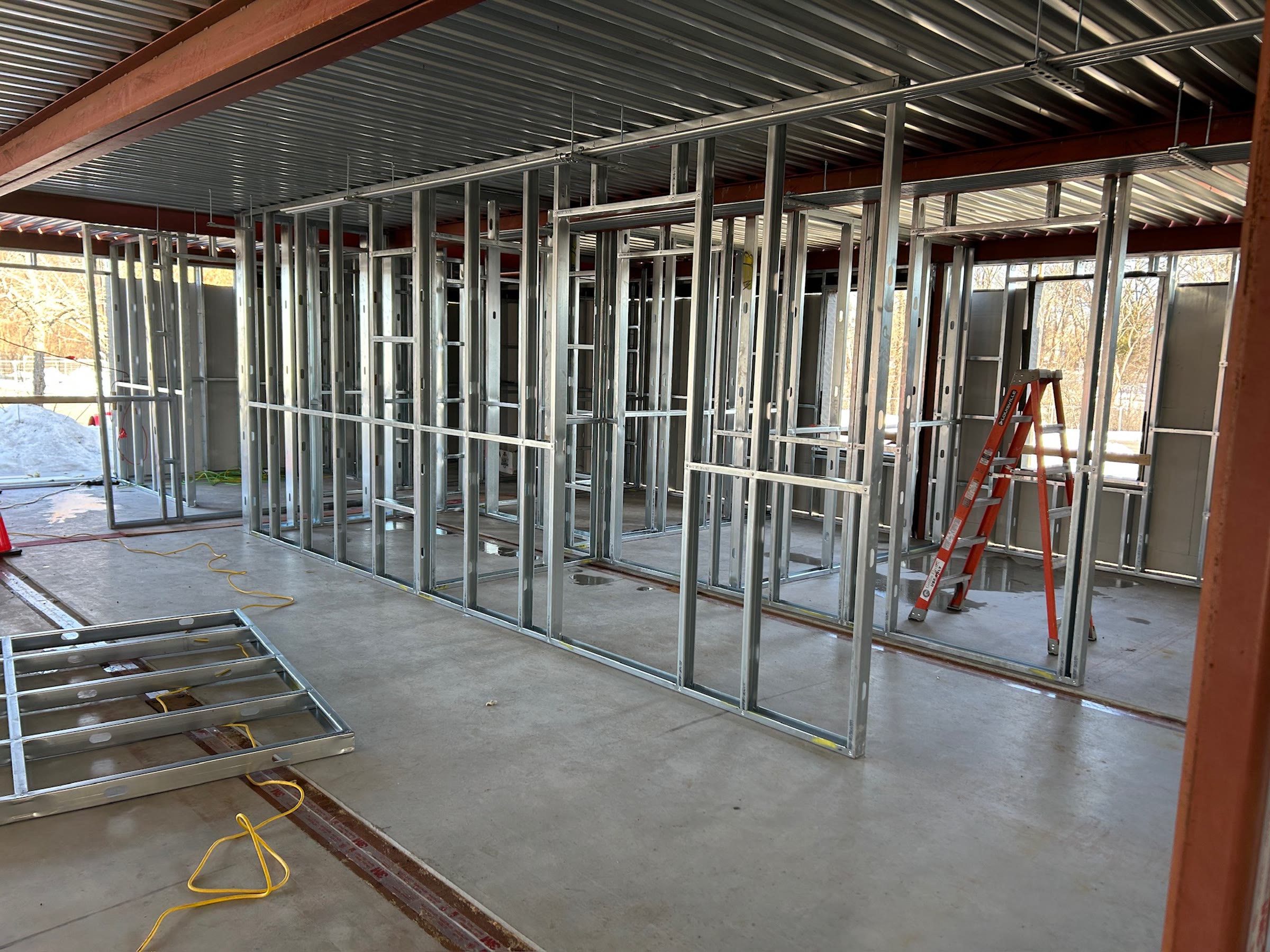

    Interior wall layouts for offices, screening, bag holding, sterile zones, restrooms and support rooms.

    ~70 INTERIOR PANELS NON-STRUCTURAL PARTITIONS
  3. 03

    Parapet framing

    Parapet panel set (Par1–Par46) coordinated with exterior wall geometry and roof edge conditions.

    46 PARAPET PANELS ROOF-EDGE COORDINATION
  4. 04

    FRAMECAD shop documentation

    A coordinated Metalleve submittal combined the 3D wall model, wall plan layouts, panel shop drawings and stud design calculations using FRAMECAD Detailer / Structure.

    3D WALL MODEL PANEL SHOPS STUD DESIGN CALCS
