Project Overview

Facility

Two-level interior structure Wall framing, intermediate floor and upper framing plane

Primary framing area

275 Washington Street Franklin, MA 02038

Package scale

Preliminary design Single-sheet structural coordination record · Sheet MTL000

Deliverable

3D structural modeling Wall, floor and elevation views for design development

Project gallery

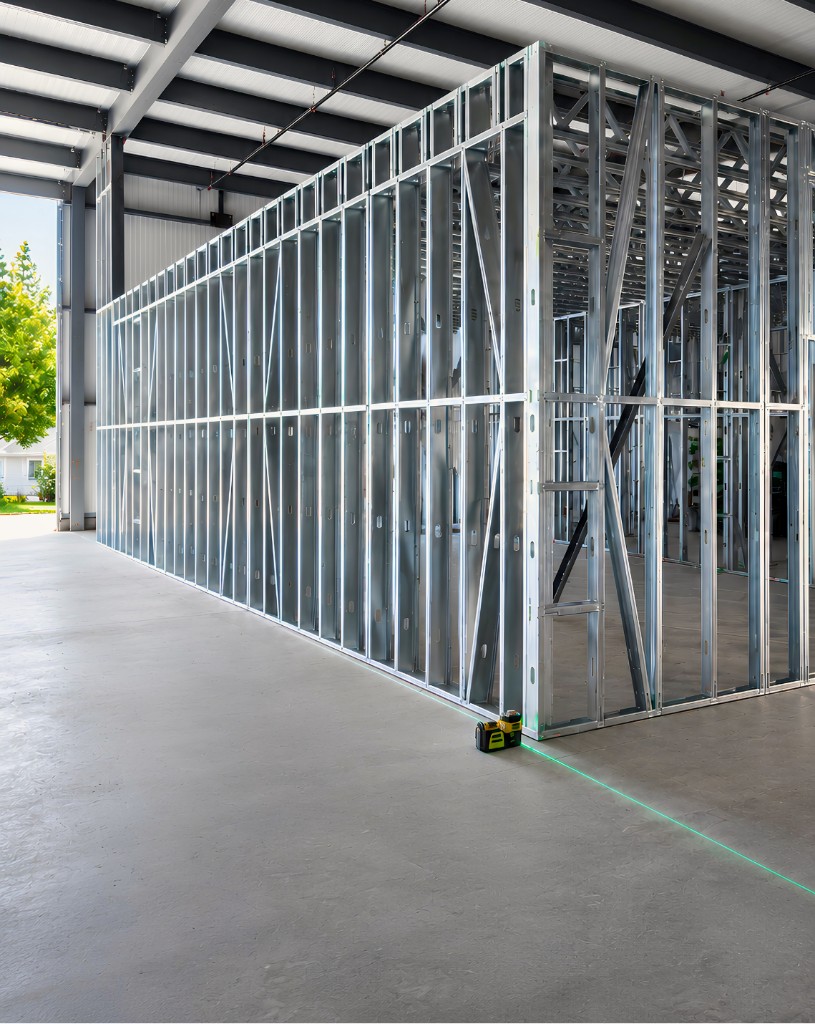

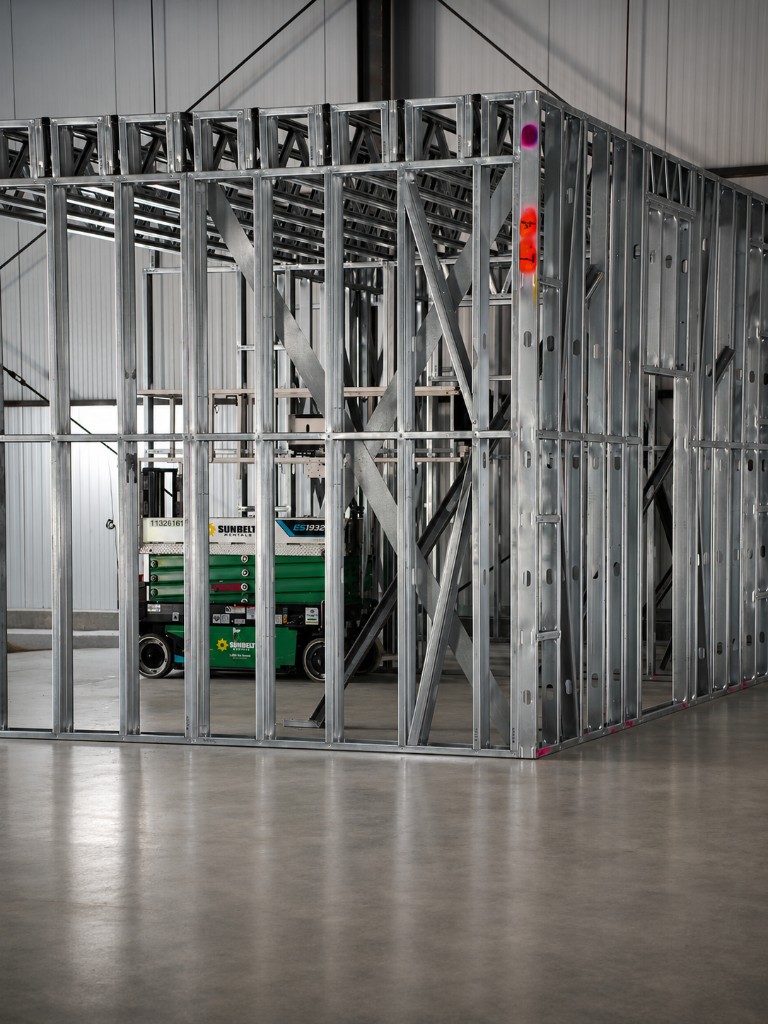

Field and shop views from framing through panel installation.

Scope

CFS work completed for this project

01

Two-level wall framing model

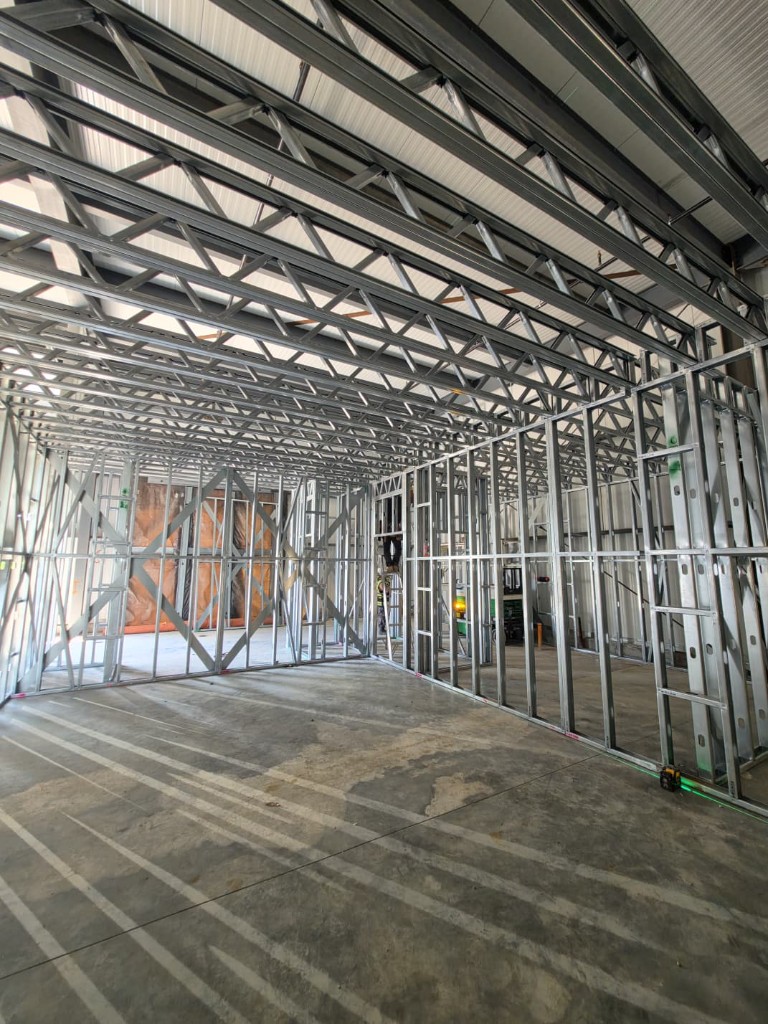

Three-dimensional coordination establishes the lower and upper wall geometry within the existing industrial shell.
02

Intermediate-floor coordination

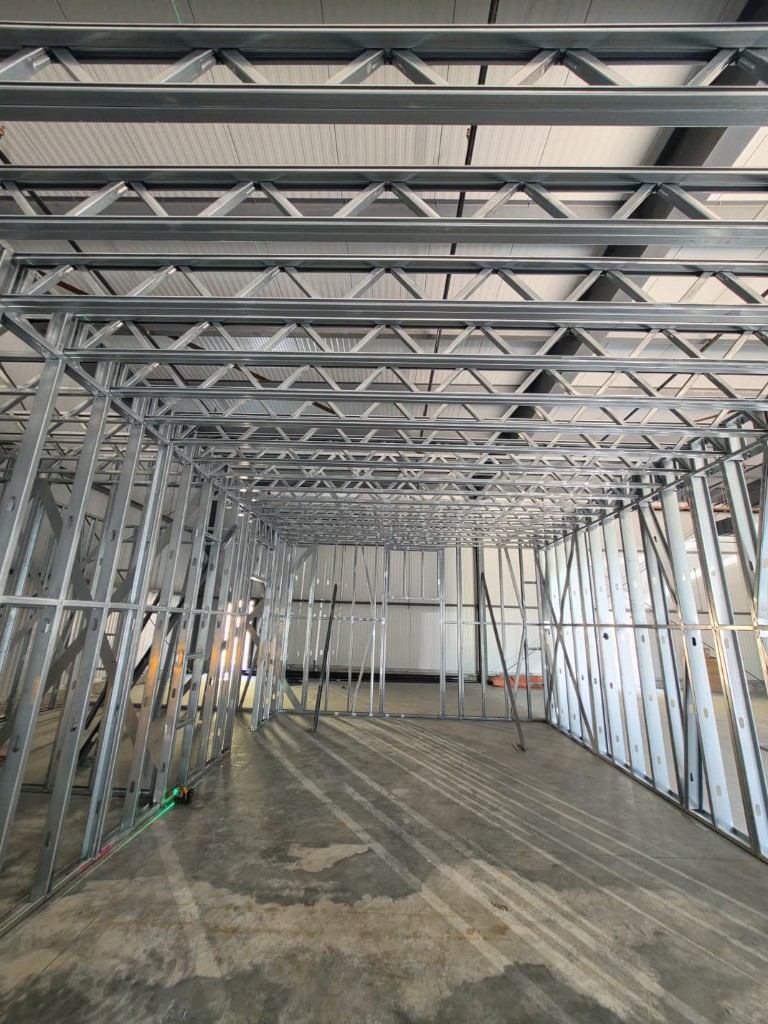

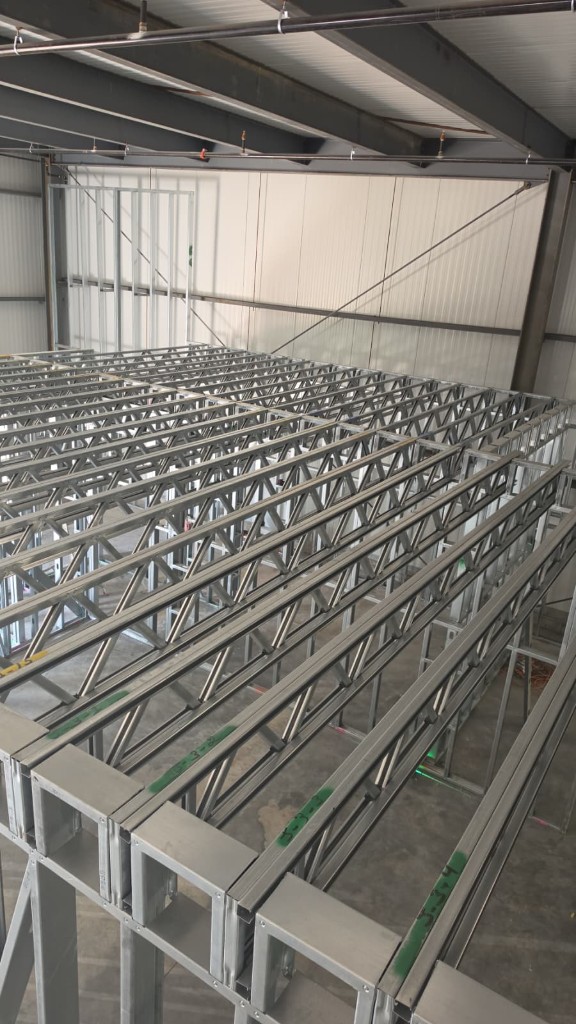

CFS horizontal members define the upper floor plane, perimeter support and openings around circulation.
03

Stair and roof-plane integration

The preliminary model coordinates the stair run with both levels and maps the upper framing plane across the enclosed structure.
