Project Record

Jackson Square

Exterior CFS walls, canopies and balconies · Weymouth, MA

Project Overview

Facility

Jackson Square mixed-use building 910–920 Broad Street

Primary framing area

Weymouth, MA Jackson Square · 910–920 Broad Street

Package scale

65 exterior wall panels Panel marks L1–L65 · 6-inch studs, 43 mil

Deliverable

Preliminary coordination and shop package Exterior walls plus canopy and balcony joist layouts

Project gallery

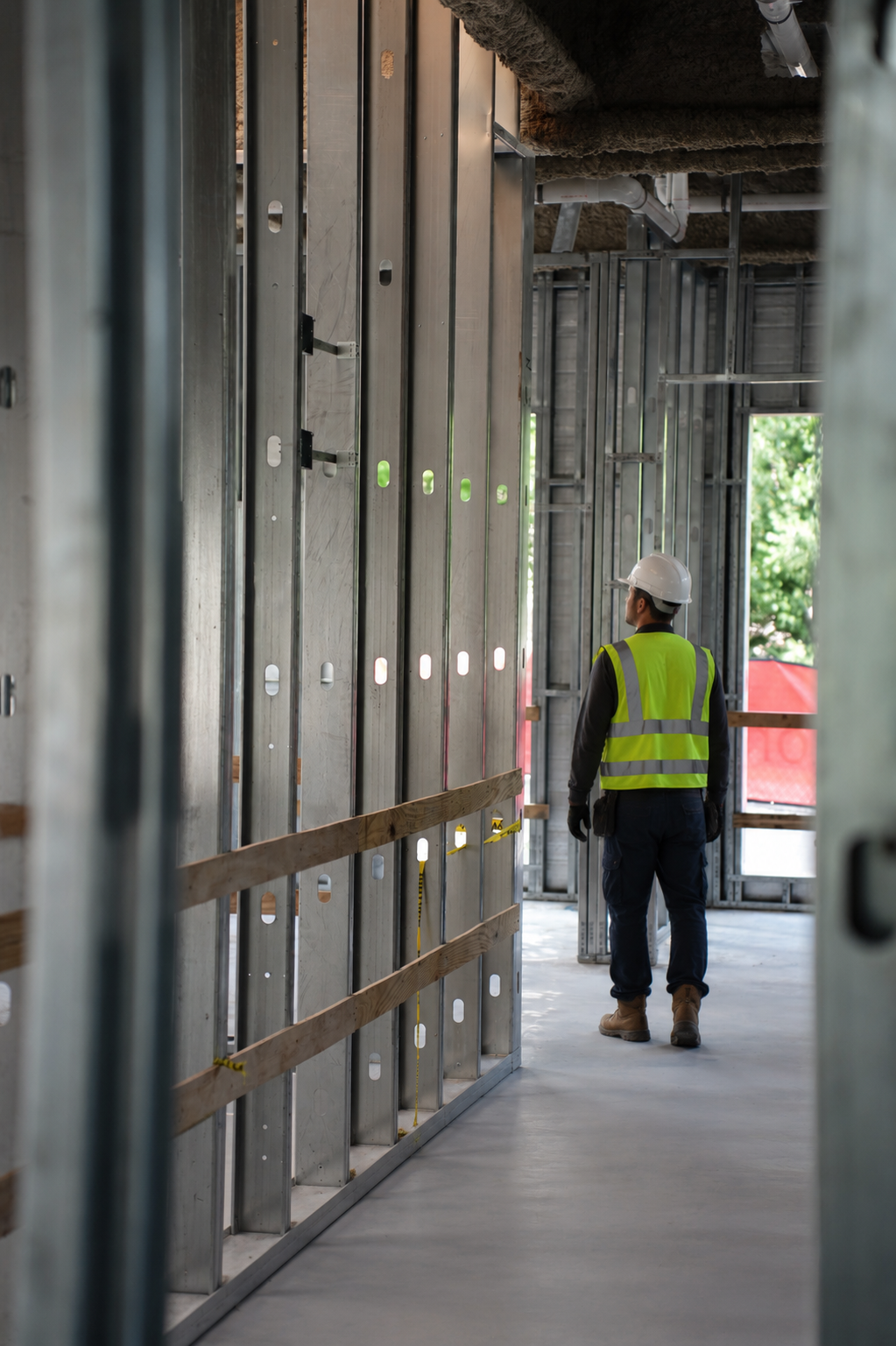

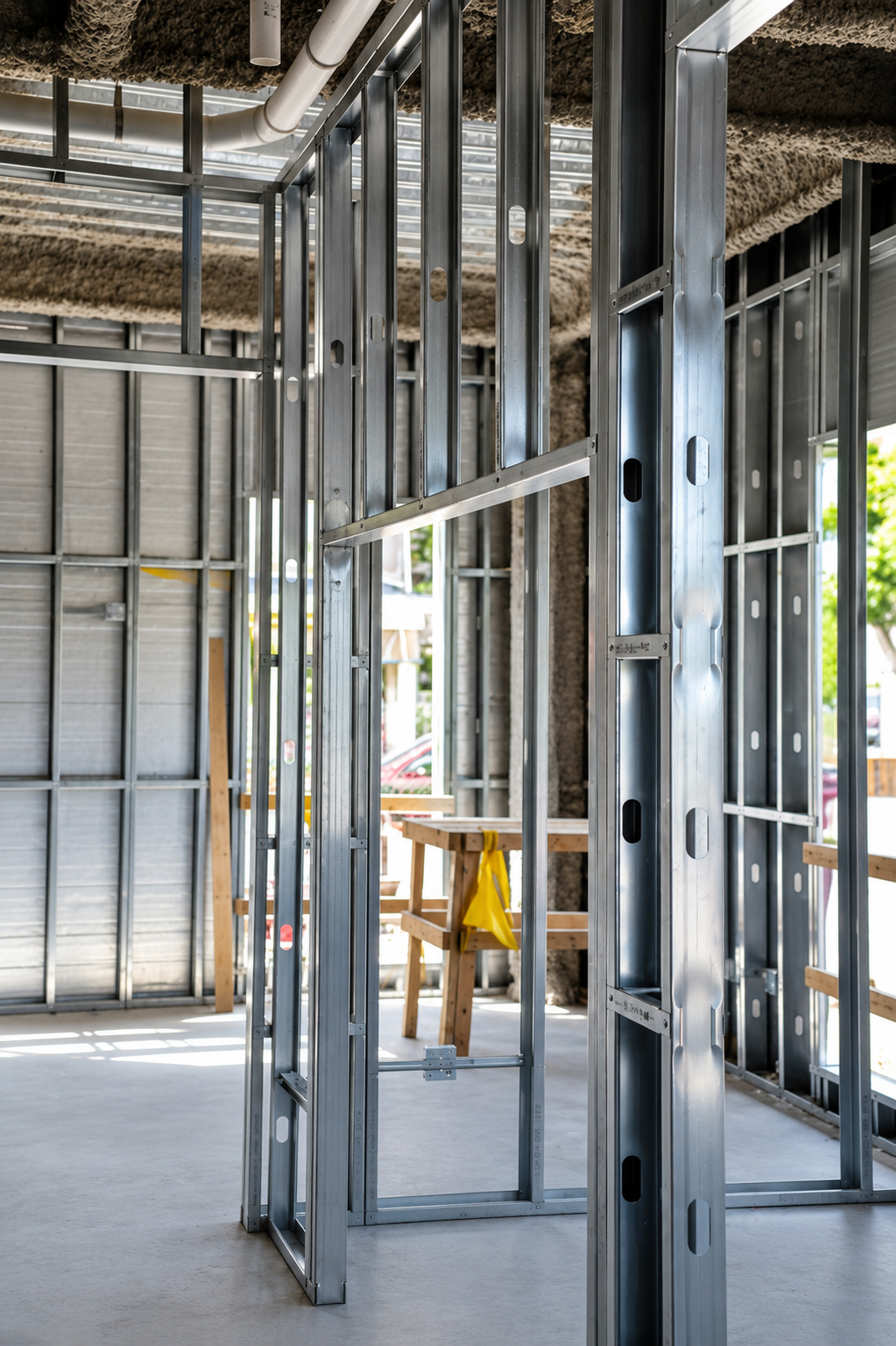

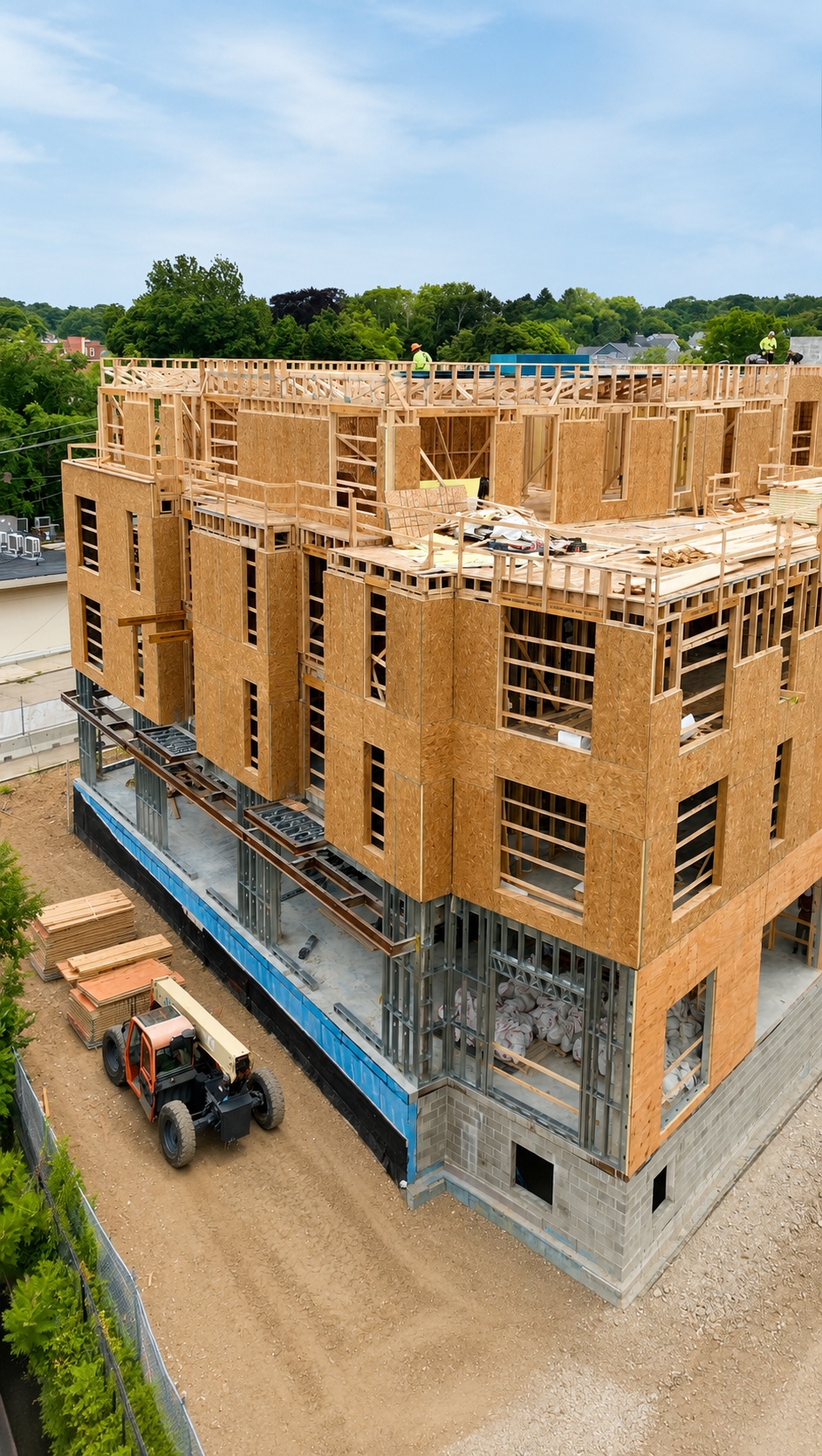

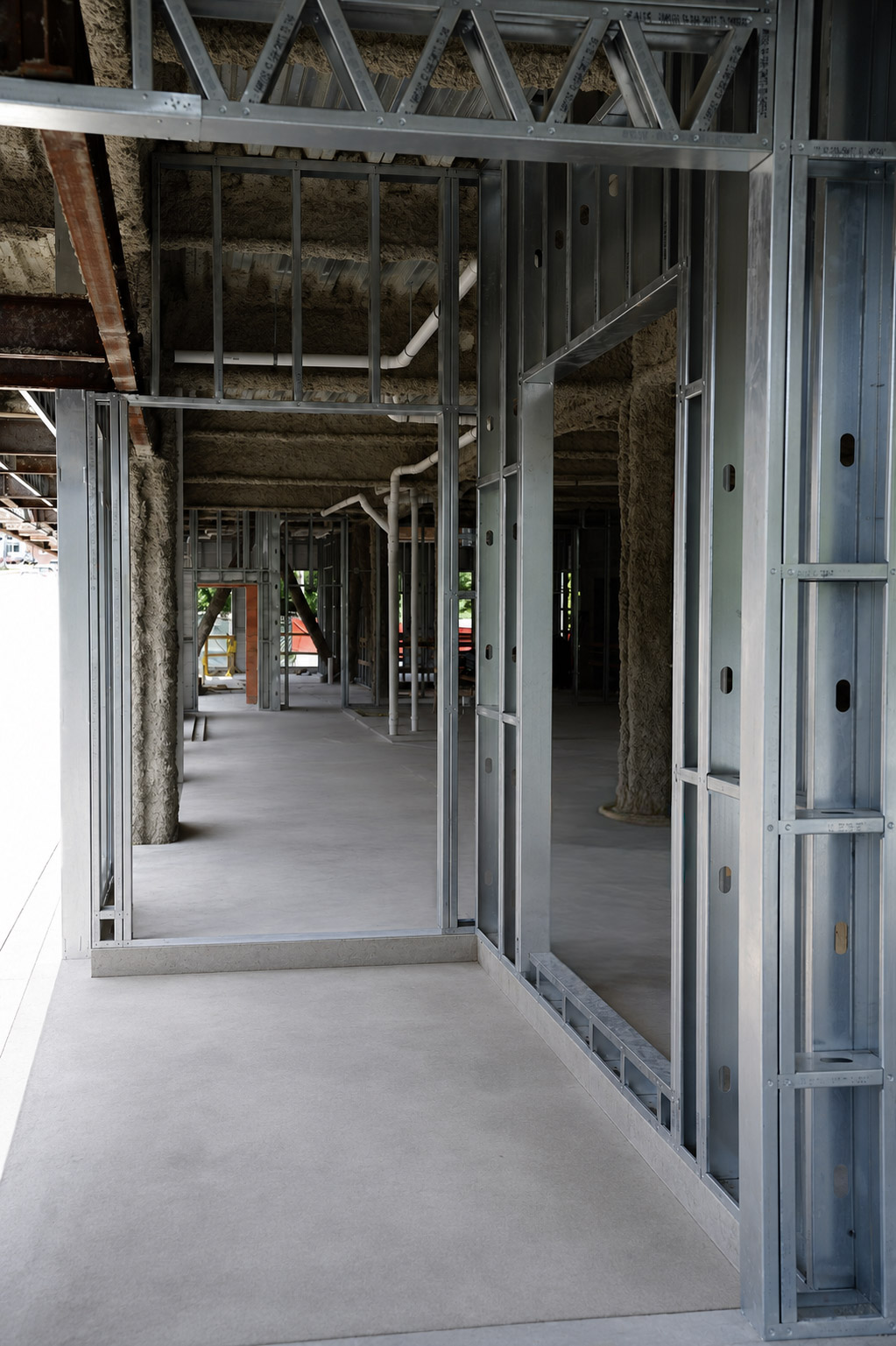

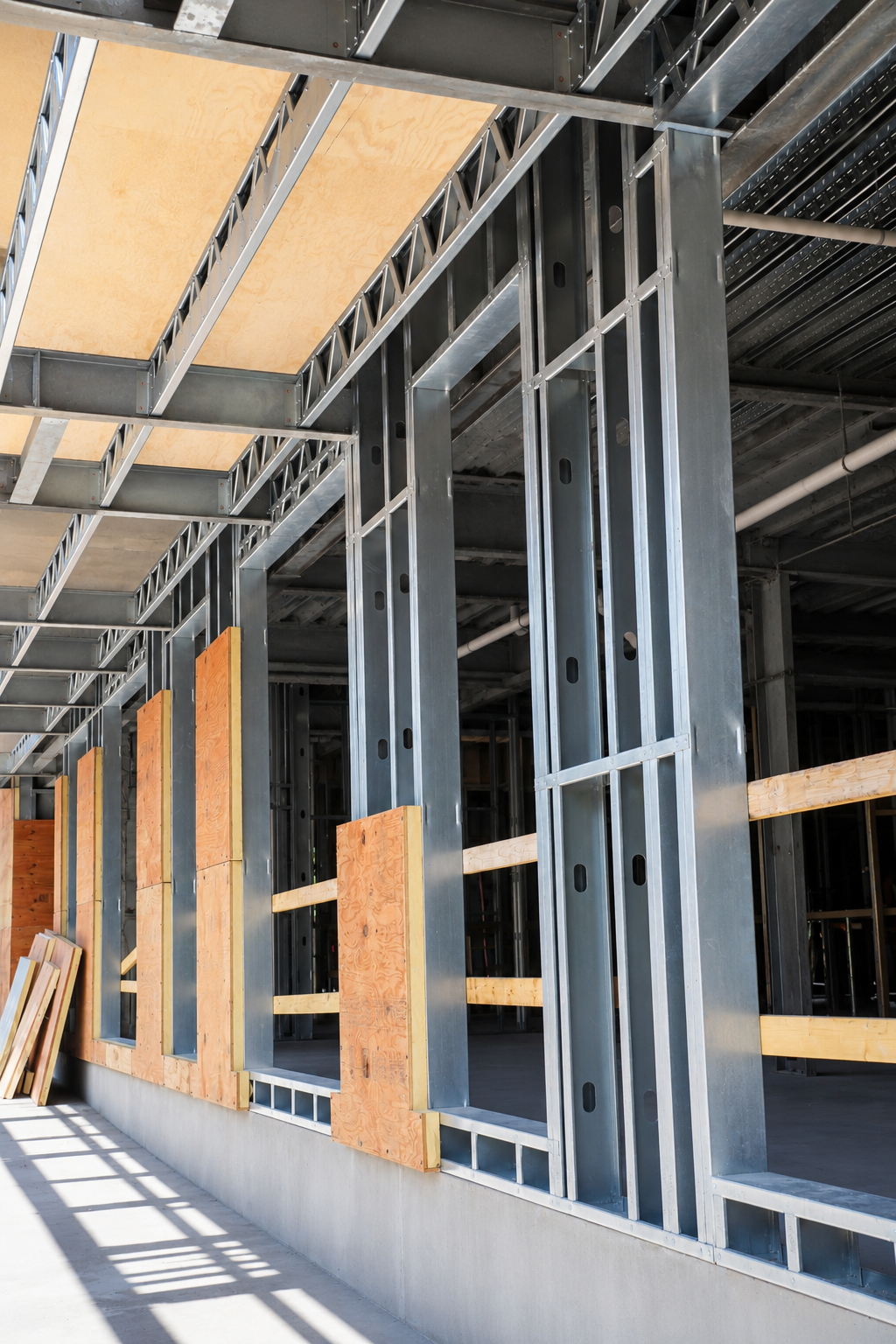

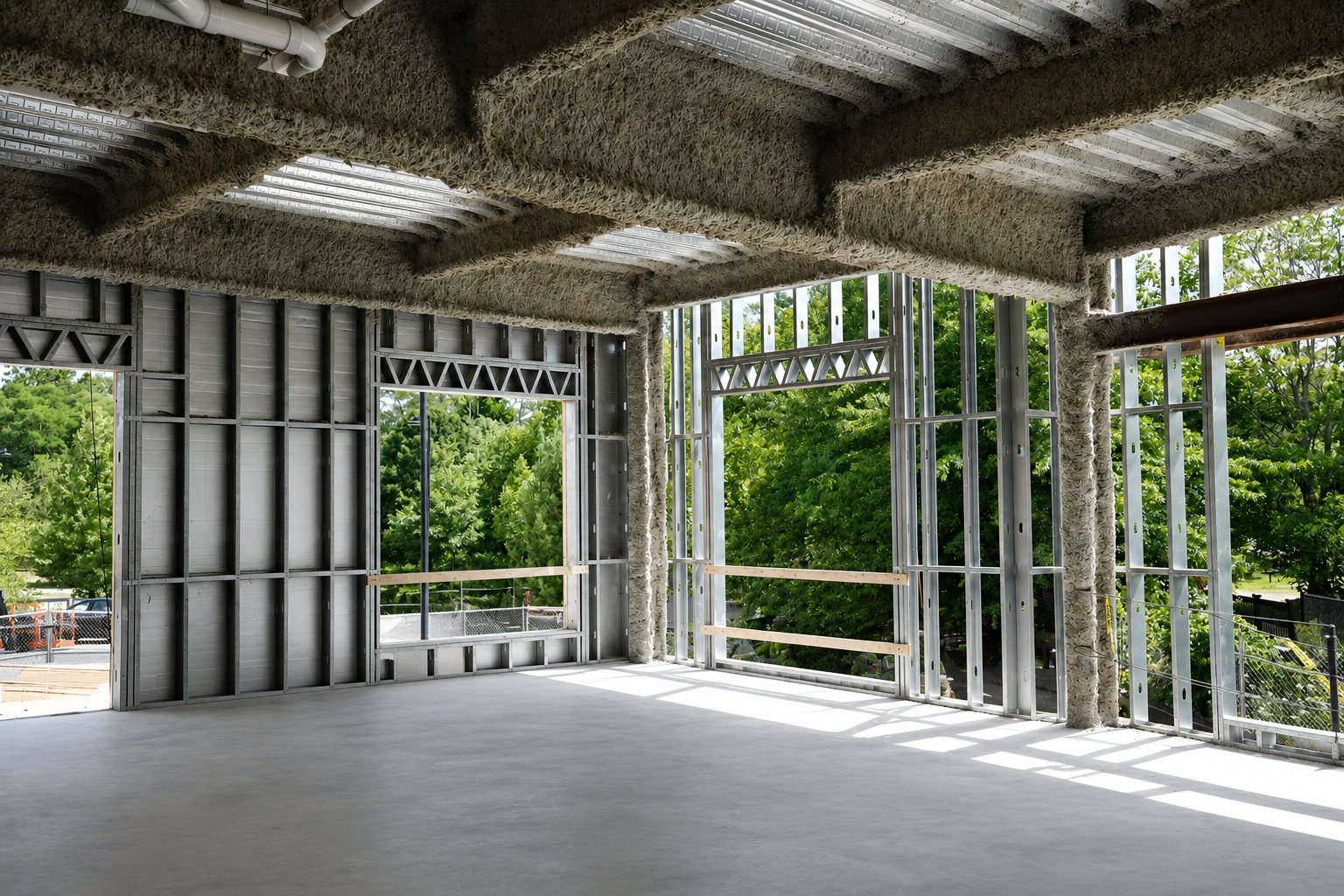

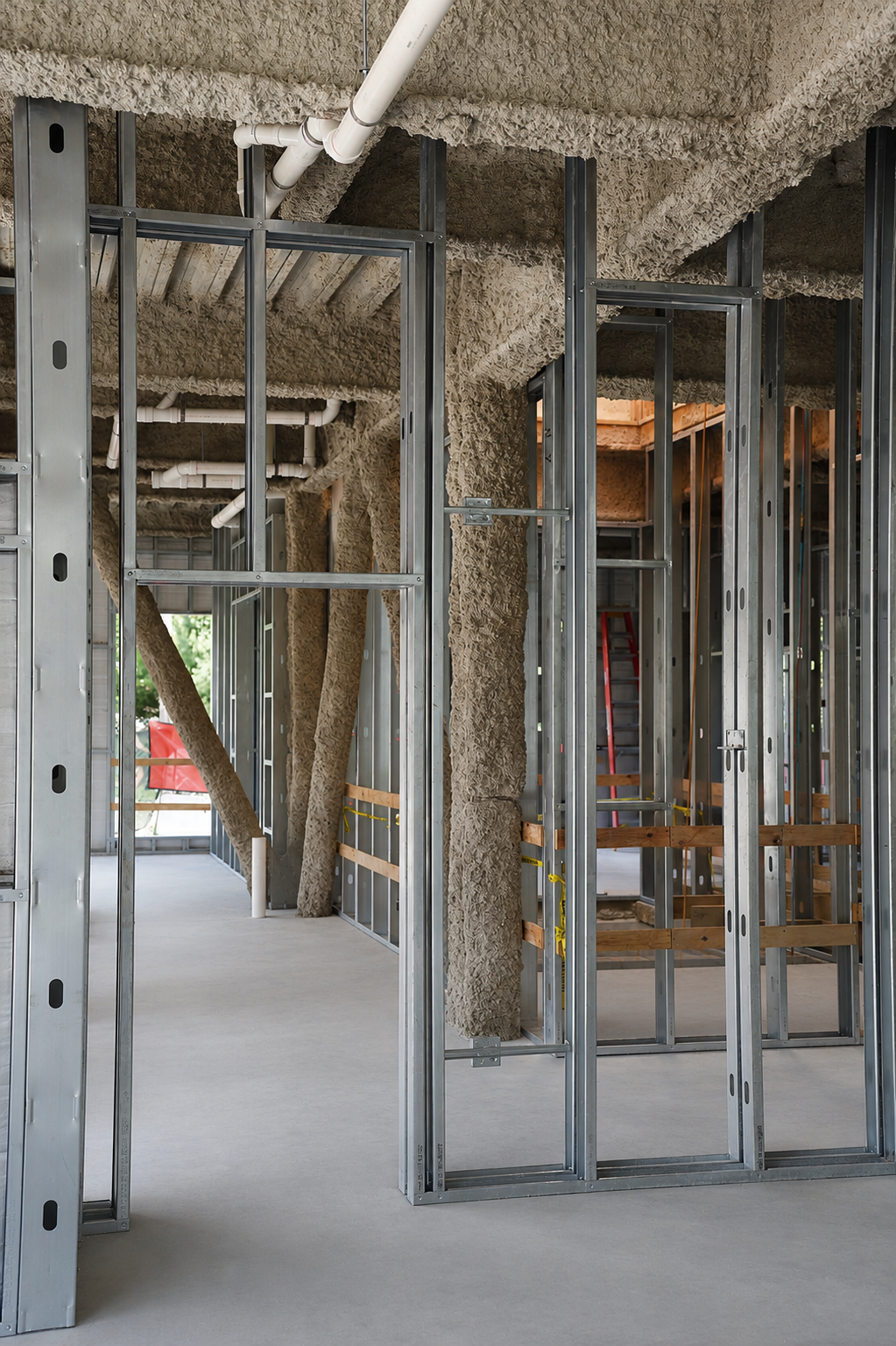

Field and shop views from framing through panel installation.

Scope

01

Exterior wall panelization

Sixty-five panelized wall elevations coordinated around storefronts, doors, corners and the irregular building perimeter.
02

Deflection and slab-edge coordination

Six-inch bottom track and slotted top track details coordinate the wall package with concrete slab edges and required vertical movement.
03

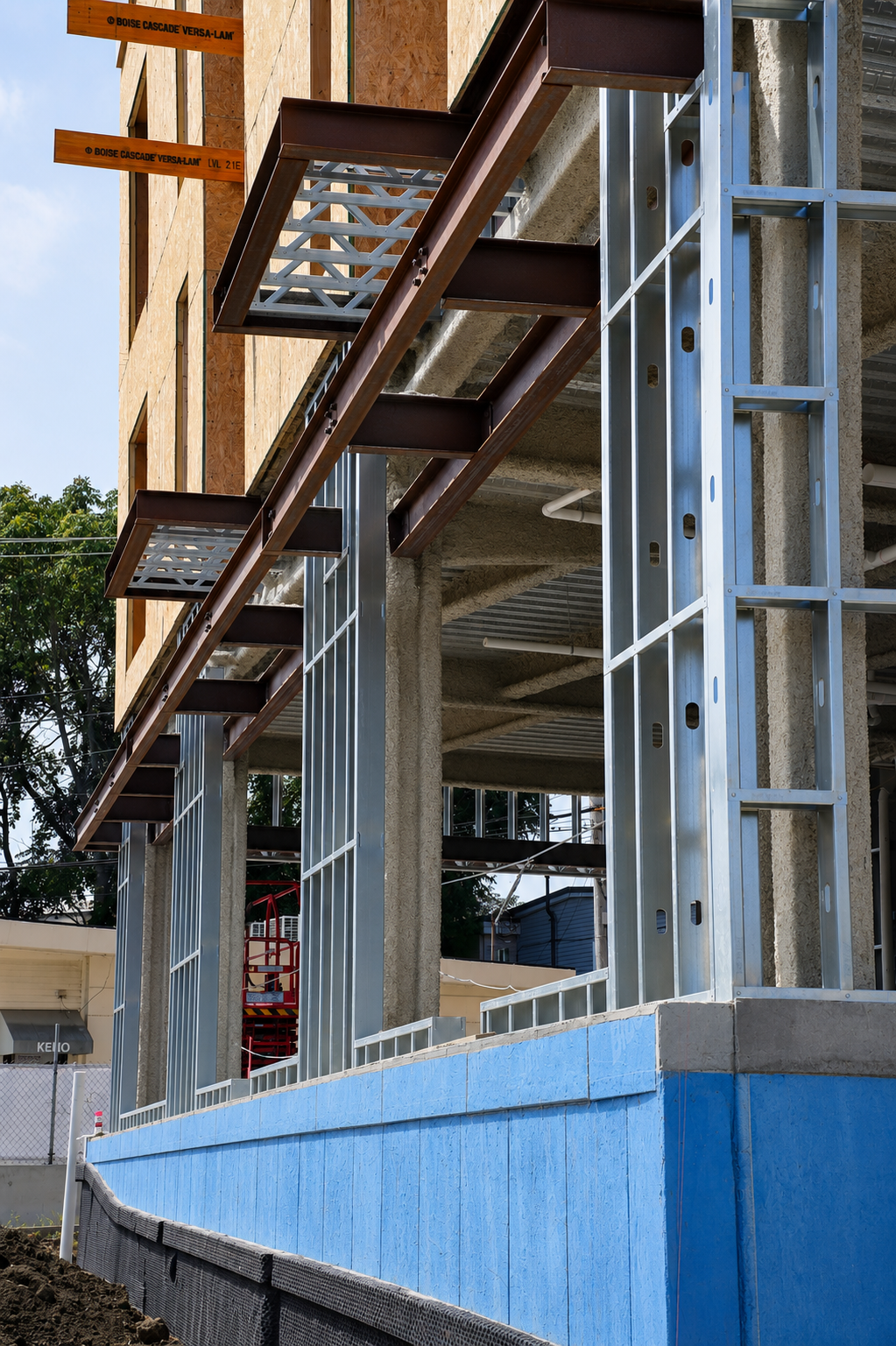

Canopy and balcony framing

Separate CFS joist layouts address the street canopy and residential balconies, including rigid connector interfaces to primary steel.
