Project Overview

CFS System

Walls Four office wall panels · Ew1-Ew4

Project Scale

214.5 lb estimated total 4 panels · Ew1-Ew4 · 8'-4" high · 40.1-71.1 lb each

Location

Hudson MA

Technology

FRAMECAD CNC roll-forming precision for every CFS member

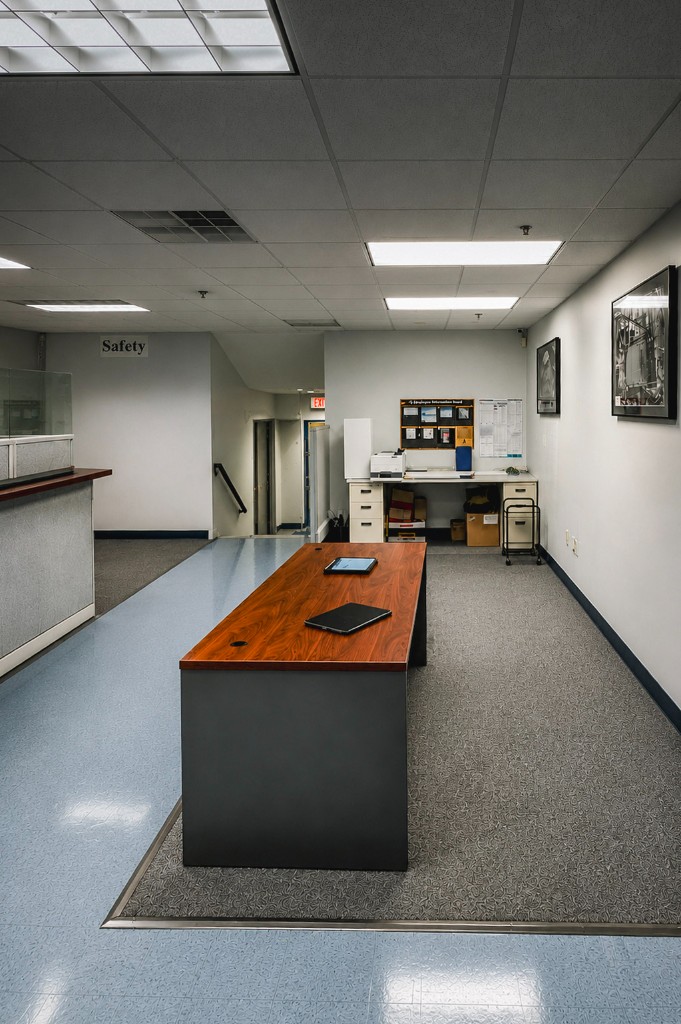

Project gallery

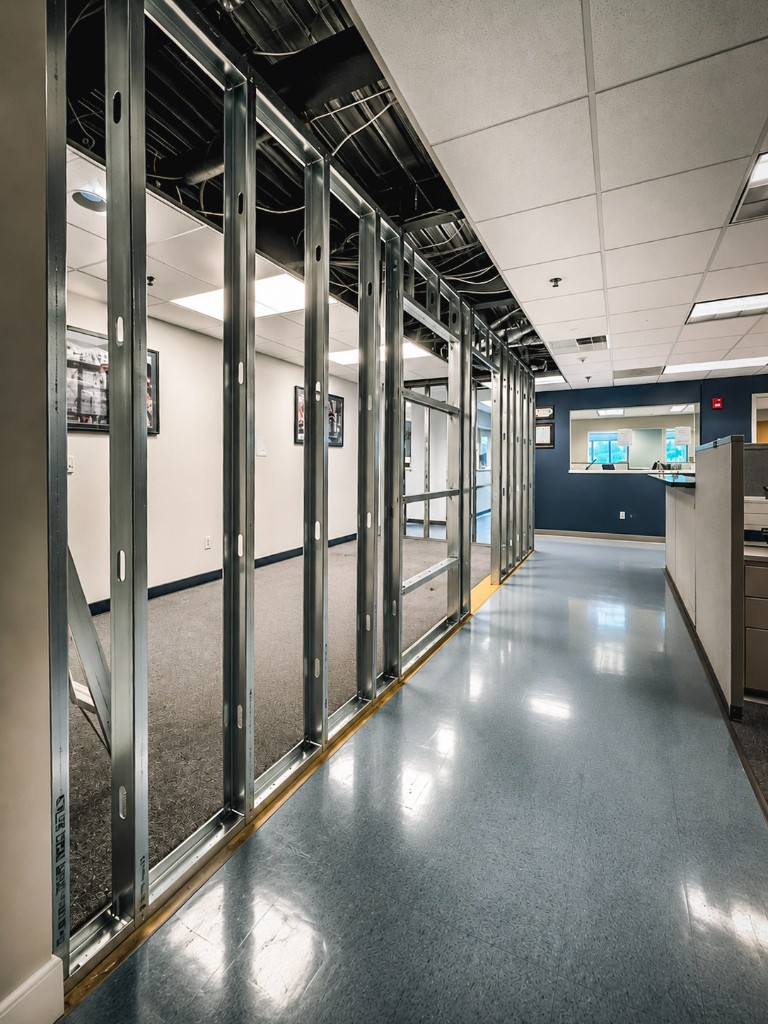

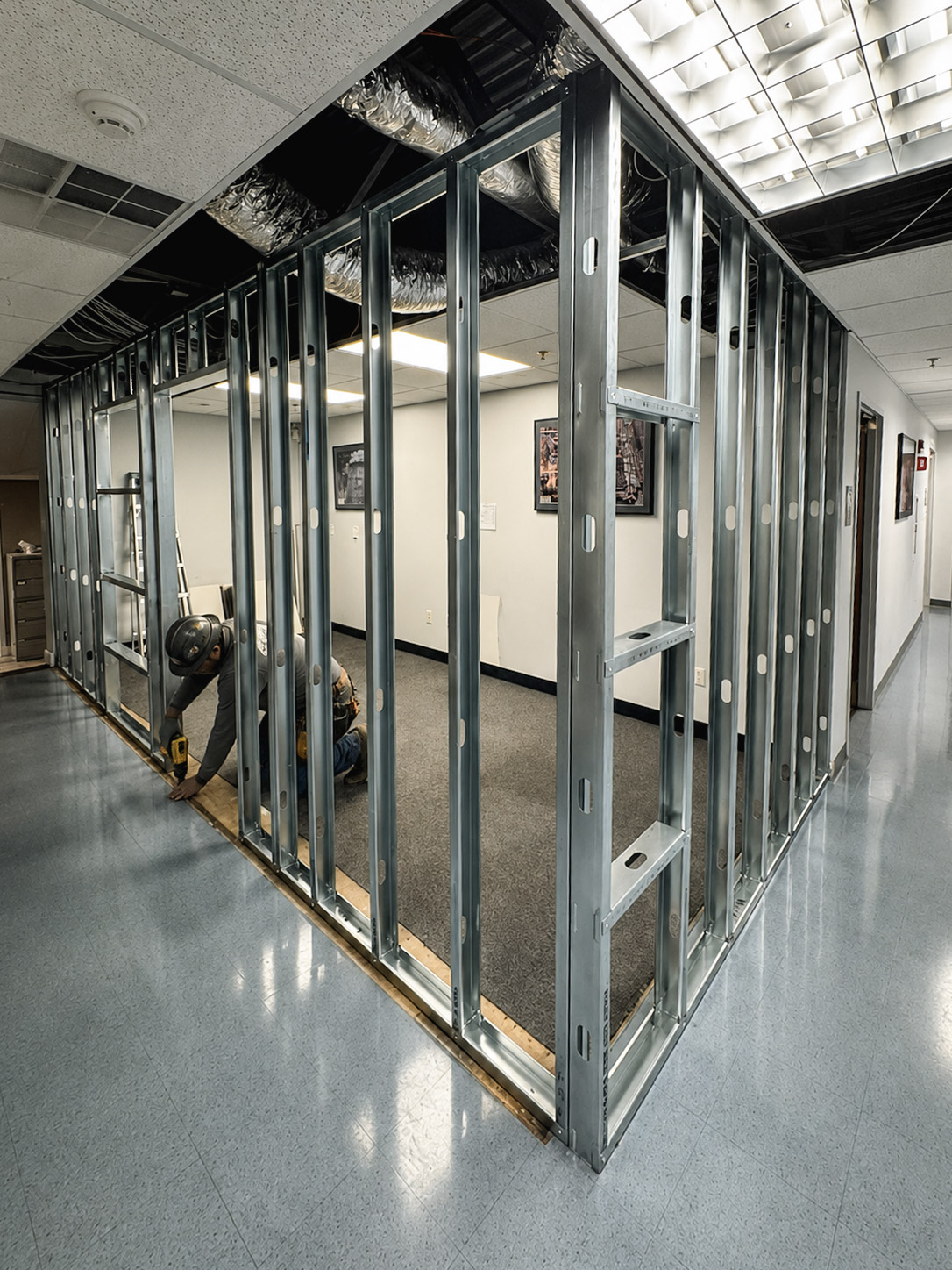

Field and shop views from framing through panel installation.

Scope

CFS work completed for this project

01

Office enclosure layout

A compact four-panel package defines the office wall run and perpendicular return in a coordinated plan.
02

Opening coordination

Panel Ew3 integrates two openings, each documented at 7'-1½" high by 3'-2" wide, with dedicated header and jamb framing.
03

Fabrication-ready panel sheets

Individual FRAMECAD views identify panel geometry, stud sequence, tracks, noggins, member lengths and estimated panel weight.
